30W Power Supply Adapter Product Family offers Quasi Constant Current/Constant Power Option as well as Medical, Household, and ITE certifications, GTM96300

Globtek is introducing a quasi-constant current feature for it’s new 30W family of power adapters, for use in battery charging type applications, when a customer application needs to operate with output power below the output voltage regulation point.

The new option allows for a 30W nominal constant power limiting level, between the rated output voltage level and 75% of the output voltage level, for battery charging and other types of loads which may momentarily overload the power supply and cause the output voltage to droop.

Standard models are listed in the table below. Custom models are also with customer selected output characteristics from 5V to 48V in 0.1V increments, and from 15W to 30W of nominal output power.

Model NumberNom Output VoltageNom Output Power LimitingMinimum Operational Output Voltage

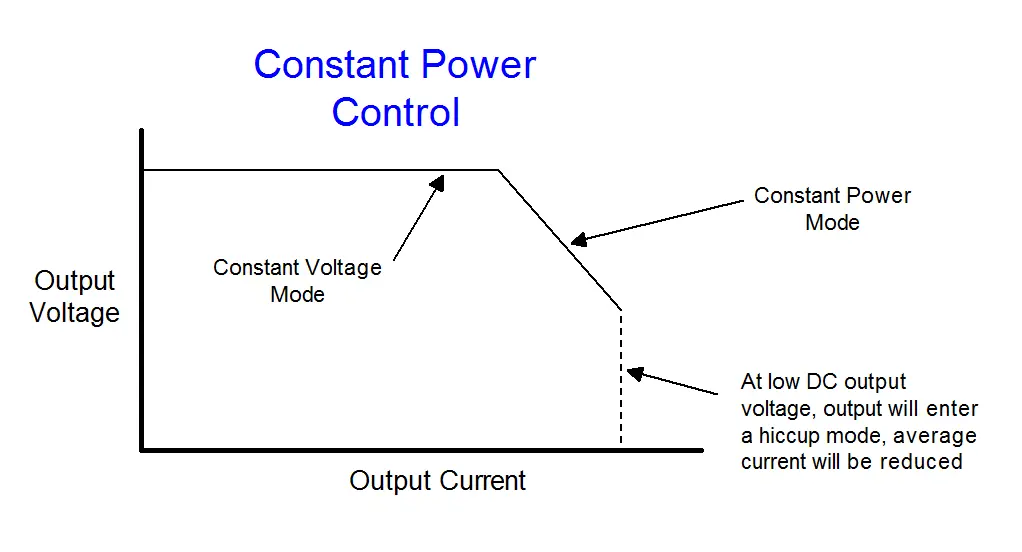

Basic power supply output characteristic curve: Basic power supply output characteristic curve

All models come with a large number of international safety approvals and EMC compliance. Regulatory safety standards include 60950-1, 60335-1, 60601-1 and 62368-1.

A 90-264Vac wide range input voltage is standard. Custom output cord selection, and specialized customer marking options also available. The AC input mechanical configuration is available as a Wall plug-in or an IEC320 power inlet. Contact Globtek USA corporate HQ at 201-784-1000 for more details.
