Preferred ratings shown below. Custom output voltages available in 0.1V increment from the minimum voltage listed to the maximum voltage listed; contact sales.
Model Number (Final ordering #/Part No to be defined)
Voltage (V)
Current (A)
Power (W)
RFQ
GTM961600P13812-T3*
12
11.500
138
GTM961600P12012-T3*
12
10
120
GTM961600P12512-T3*
12
10.42
125.04
GTM961600P12512-T3 [CF]*
12
10.42
125.04
GTM961600P13513.5-T3*
13.5
10
135
GTM961600P15015-T3*
15
10
150
GTM961600P15016-T3*
16
9.375
150
GTM961600P14418-T3*
18
8
144
GTM961600P15018-T3*
18
8.333
149.99
GTM961600P16019-T3-CF*
19.0
8.42
159.98
GTM961600P16019-T3*
19
8.421
160
GTM961600P16019.5-T3*
19.5
8.2
159.9
GTM961600P13024-T3*
24
5.42
130.08
GTM961600P15024-T3*
24
6.25
150
GTM961600P16024-T3*
24
6.66
159.84
GT-2066P0512N12-FW(R)*
GT-2066P0512N12, ICT/ITE Power Supply, Efficiency Level: N/A, Case Color/Style: PCB, Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, Input Rating: 100-240V~, 50-60 Hz, Molex Header (or equal) , Output Rating: 80W, 5.0/12.0/-12.0V@7.0/2.7/1.0A, Output Configuration: mm, / Cond, , , Ferrite: , , GT Cord # , Pin Out: , Blades/Input Cord: Not Applicable, Approvals: to , GT Cable #: / Conductors, mm OD, , Deg.C, V, , Approvals: , mm,
GTM961600P16026-T3-CF*
26
6.15
159.9
GTM961600P16026-T3*
26
6.15
159.9
GTM961600P16028-T3*
28
5.714
159.99
GTM961600P16036-T3*
36
4.444
159.98
GTM961600P16054-T3*
54
2.96
159.84
GTM961600PWWWVV.V-T3-XXXX
CUSTOM
CUSTOM
CUSTOM
* (Final ordering #/Part No to be defined)
Specifications
A) ELECTRICAL SPECIFICATIONS: 01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac 90-264Vac range @ 100% of rated load current 85-264 Vac range @ 90% of rated load current 02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50/60Hz 03. Power Factor: 0.90 minimum @ 230Vac, 0.97 minimum @ 115Vac 04. Output Regulation: +/- 4% max measured at the output connector 05. Line Voltage Regulation: +/- 0.5% typical measured at full load 06. Green Power On Indicator LED 07. Output Ripple (Vp-p): 1% or 200 mV whichever is greater, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with a low impedance 47 uF electrolytic capacitor connected at the end of the output connector at nominal line 08. Turn-ON/OFF Overshoot: 5% maximum, 1 mS typical recovery time for 25% to 50% step load 09. Turn-ON Delay: 1 second typical 10. Hold-Up Time: 20 mS minimum 11. Inrush Current: 30A maximum at 115Vac input and 60A maximum at 230Vac input 12. Switching Frequency: Varies from 25KHz to 125KHz 13. Efficiency: Compliant with DoE Efficiency Level VI standard and CoC Tier 2 14. No Load Standby Power: <0.15 W @ 230Vac
B) PROTECTION 01. Input Protection: Input line fusing and 300Vac rated MOV 02. Short Circuit/ Overload: Electronically Protected unit will auto recover upon removal of fault Output Current Limit: Current limited to less than 240W / Vnom and 18A for low voltage models (Vnom = nominal rated output voltage) 03. Over-Temperature: Latching Electronic Overtemperature protection. Cycle AC OFF to reset. 04. Output Over-Voltage: 110% to 135% of nominal output voltage under full load condition, and less than 60V max. Latching protection, cycle AC OFF to reset.
C) SAFETY 01. Dielectric Withstand Voltage: 4000Vac or 5656Vdc from input to output, On Class I models, 3000Vac or 4242Vdc from input to earth 02. Earth Leakage Current: Class I models < 300uA, N/A for Class II models 03. Touch Current: Class I models < 20uA, Class II models < 70uA 04. Output Isolation Options: a) C8 or C18 Inlet, Class II b) C6 or C14 Inlet, Class II FE, Output Isolated from Earth contact c) C6 or C14 Inlet, Class I, Output negative directly attached to Earth contact 05. Earth Continuity Test: < 0.1 Ohm between Earth Pin at AC input and PCB termination point (Class I models only) 06. Means of Protection: 2 x MOPP 07. Primary to Secondary Bridging Capacitance: Two IEC60384-14 certified Y1 type capacitors in series 08. Compliant Standards: See listings at end of this drawing for specifics
D) EMC EN 60601-1-2, 4th edition Emissions, per EN 55032, EN 61000-6-3, EN 61000-6-4, CISPR11 and CISPR22 Conducted Emissions: Class B, FCC Part 15, Class B Radiated Emissions: Class B, FCC Part 15, Class B Line Frequency Harmonics EN61000-3-2, Class A Voltage Fluctuations/Flicker EN61000-3-3
Immunity, per EN 55024, EN 61000-6-1, EN 61000-6-2 Static Discharge Immunity EN61000-4-2, 10kV Contact Discharge, 18kV air discharge Radiated RF Immunity EN61000-4-3, 10V/m 80-2.7GHz, 80% 1KHz AM. EFT/Burst Immunity EN61000-4-4, 4kV/100kHz. Line Surge Immunity EN61000-4-5, 2kV differential, 4kV common-mode Conducted RF Immunity EN61000-4-6, 3Vrms, 80% 1KHz AM Power Frequency Magnetic Field Immunity EN61000-4-8, 3A/m Voltage Dip Immunity EN61000-4-11, Criteria
E) OTHER: 01. MTBF: 1,000,000 Hours @ 40°C ambient temperature, Full Load 02. Operating Temperature: -10°C to 40°C ambient temperature with full load Regarding Operating Temperature, a- See below derating table for output power capability at alternate temperature b- Extended low end temperature range down to -40°C available as a custom option 03. Humidity: 0% to 95% relative humidity, non-condensing 04. Storage Temperature: -30°C to 80°C 05. Cooling: Convection 06. ROHS: Compliant with latest regulations, see approvals section below 07. Operational Altitude: 5000M

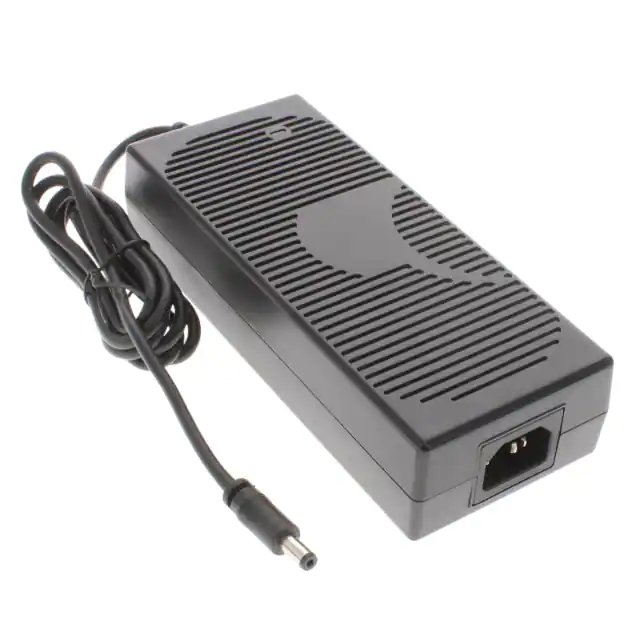

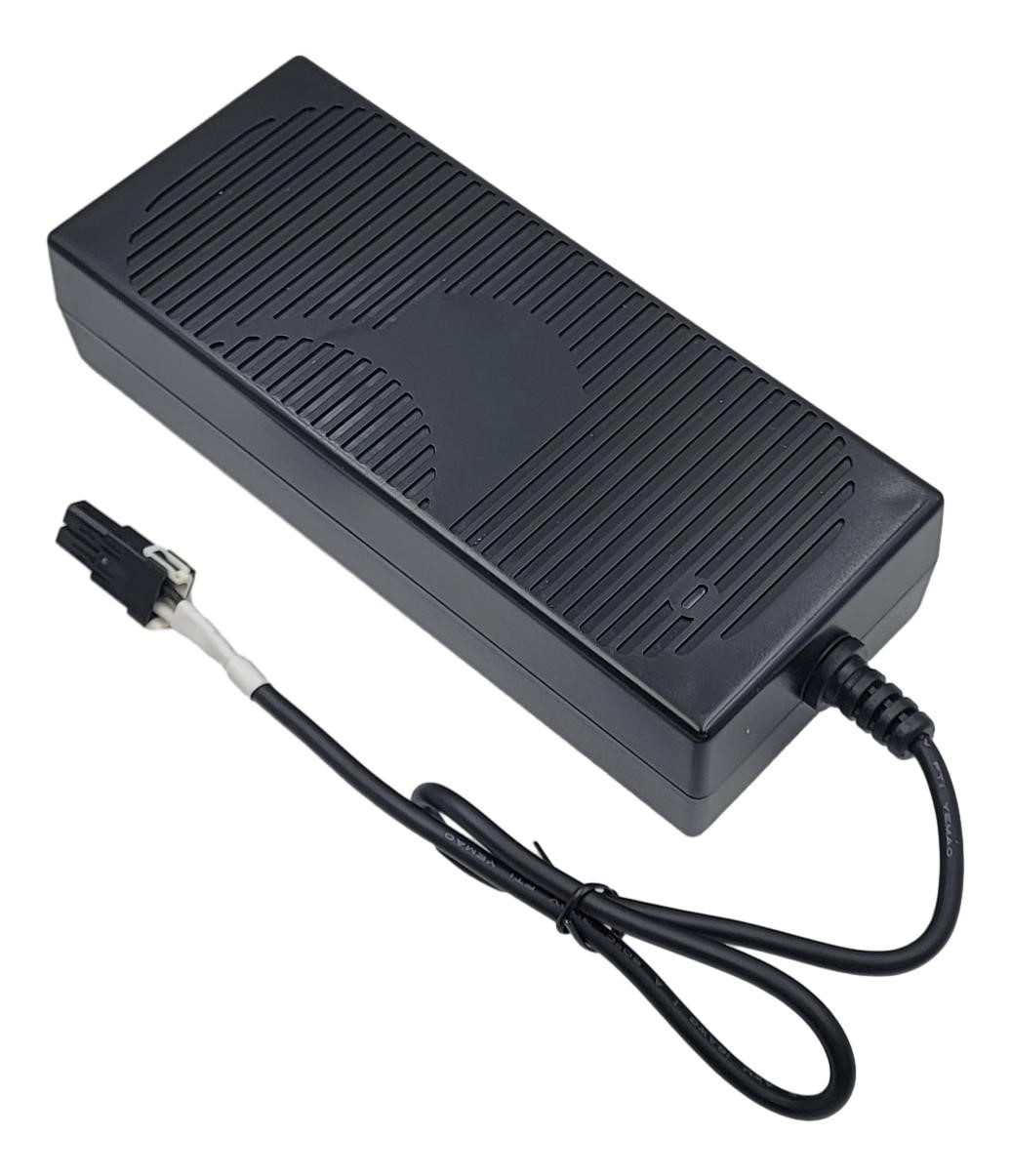

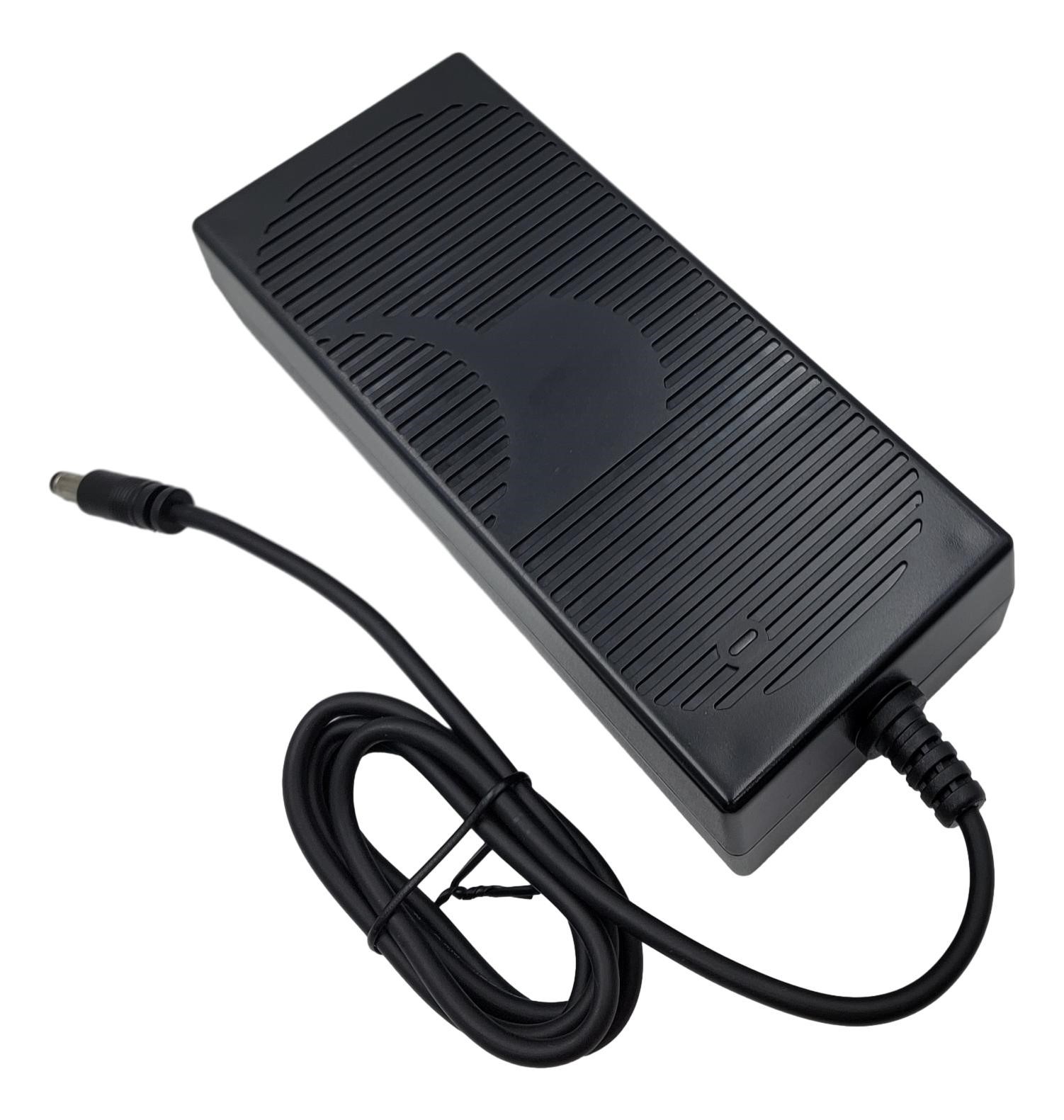

F) DESKTOP STYLE ENCLOSURE 01. Housing: High impact plastic, 94V0 polycarbonate, non-vented 02. Size: 176.5 x 74 x 40 +/-1.0 mm 03. Markings: Label or Laser printed 04. AC Input mechanical options: Desktop C6, C8, C14 or C18 IEC Inlet.
G) SPECIAL OPTIONS 01. Custom Cordsets, various cordage types, and connector types 02. Custom Markings 03. Short term Output Surge Power Capability, for motor applications, and short term intermittent high power need applications. 300W for 1 second is available, as a special design variant. 04. Reduced Leakage Current version, medical CF leakage current compliance 05. Tightened output voltage tolerance 06. Reduced Output Ripple Level 08. Reduced output power marking/rating 09. High Rel PCB laminate with Plated through Holes for IPC610 Class 2 Compliance 10. Special Housing Colors and Cordset Colors 11. LED Lighting Applications, Class C Line Harmonics 12. Constant Current output, for Vnom to 0.75xVnom. Add “-CC” suffix to model number. Current level is custom selectable. 13. Back EMF applications, custom solutions. For unusual motor load aps and other high inductance reverse energy flow requirements 14. Improved Ingress Protection Rating
H) OUTPUT CONNECTORS Several output connector options are available with various output current ratings. GlobTek can supply 10A rated 2.1mm and 2.5mm style DC Power Jacks, to complement our 10A output rated 2.1mm and 2.5mm DC power plugs used on our output cordsets. Please visit https://en.globtek.com/news/high-current-coaxial-barrel-plug-jacks-for-high-wattage-power-supplies for a real time product offering of mating connectors.
Derating Curve
Qty (ea.)/Carton
20
Individual Box/Gift Box Size (mm)
Cellular Packag
Individual Box/Gift Box Color
Cellular Packag
Master Carton Size (mm)
465 x 415 x 225
Gross Weight (kg)
15
Label Width (mm)
41
Label Height (mm)
71

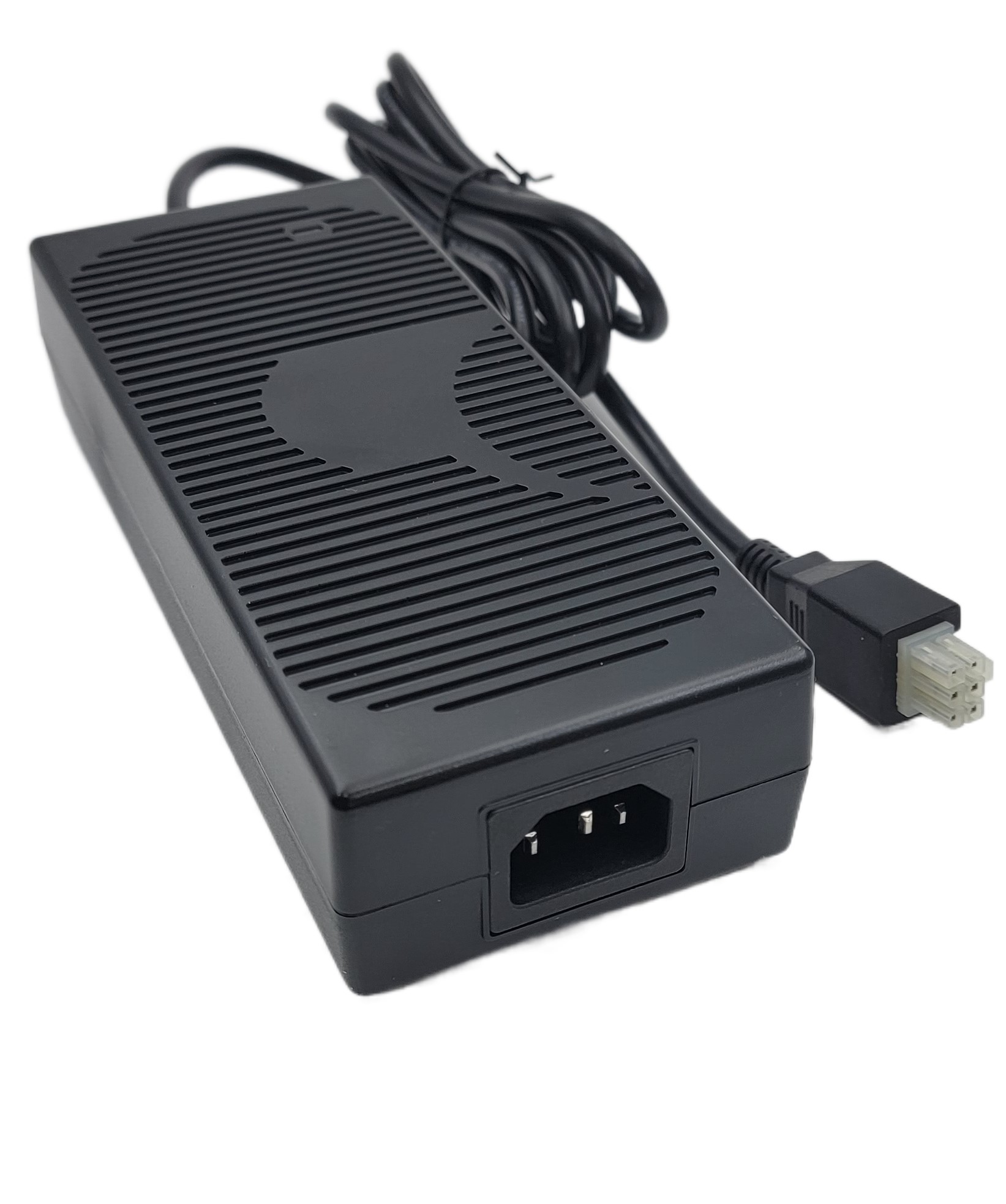

Input Configuration
Description
IEC 60320/C14 AC Inlet Connector, Class I, Earth Ground Mates with IEC 60320/C13 Plug
Optional Locking IEC60320 Receptable and cord option available on some models by request.:

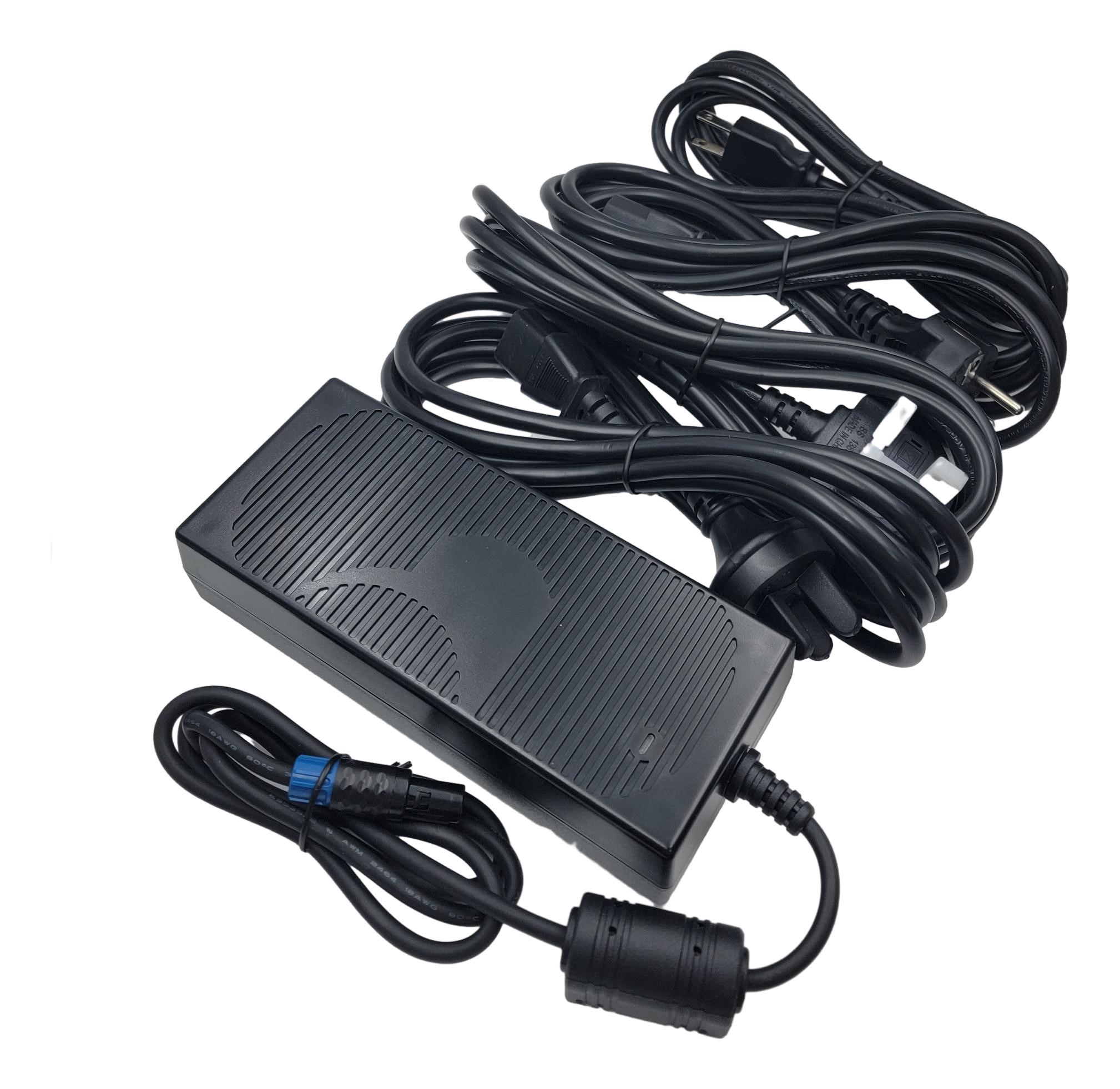

Below are standard cordsets which are "not included" (unless stated above); these can be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.
Contact GlobTek for your specific requirements or custom solutions.
Approvals
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.
Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.
Logo
Description
Medical 4th Ed.
EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
No Logo Applicable
IEC 60601-1-11:2015
No Logo Applicable
IEC 60601-1: 2005 + C1 + C2 + A1
cETLus-Cert-60950-1 4007497 Listed
EN 60601-1:2006 + A1:2013 + A12:2014 EN 60601-1-11:2015
Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
Korea for GTM961800P16012-T3(A) (12-13.5V)
No Logo Applicable
CB for IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
No Logo Applicable
CB for IEC 60335-1:2010/COR1:2010/COR2:2010 /AMD1:2013/COR1:2014/AMD2:2016/COR1:2016
cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005 with AMD C1: 2009, AMD C2: 2010 and CAN/CSA-C22.2 No. 60601-1 2008 with COR 2:2011+ANSI/AAMI HA60601-1-11 Ed:1
Korea KET KC Mark GTM961600P15018-T3 HU10499-18035A (18V)
UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008
Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
Compliance of this power supply with FCC Part 15, Class B has been demonstrated with a standard output load. The FCC law stipulates that system-level testing is required to demonstrate compliance with the FCC emission limits with the actual system load.
CAN ICES-3(B)/NMB-3(B)
Compliance of this PSU with Industry Canada, Class B demonstrated with a standard output load. The ICES law stipulates that system-level testing is required to demonstrate compliance with the ICES-3 emission limits with the actual system load.
RCM certificate GMA-521713-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm)
Korea KET KC Mark GTM961600P16024-T3 HU10499-21049A (24-30V)
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE
IRAM certificate DC-E-G71-007.1 to IEC 62368-1:2014
NOM MEXICO ANCE for GTM961800P16012-T3 (12V only)
Compliance of this power supply with FCC Part 15, Class B has been demonstrated with a standard output load. The FCC law stipulates that system-level testing is required to demonstrate compliance with the FCC emission limits with the actual system load.
No Logo
Greenhouse and Energy Minimum Standards (GEMS) for model GTM961800P16012-T3(A) GTM961600P16012-T3(A)
Hong Kong Safety Mark License IEC62368-1:2018
Saudi Arabia approval for GTM961800P16012-T3 and GTM961600P16024-T3GTM961800P-T3 IEC 60950-2005
Taiwan BSMI GTM961200P-T3(A) R37924 GTM961800P16012-T3(A) ; 12,15,18,19,24,48 and 54V (does not apply to -CF models) http://www.bsmi.gov.tw/wSite/ct?xItem=4072&ctNode=816&mp=2
Bureau Of Indian Standards for GTM961600P16024-T3) 24V
IRAM certificateDC-E-G71-005.1 to IEC 62368-1:2014 12V
CE Certification
RoHS
Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
Japan: Voluntary Control Council for Interference (VCCI)
Indoor Use Only - Mark is on the label or Molded in the case
Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
JAPAN TUV R-PSE, Cert. No. JD 50469658, to J62368-1(H30) , J55032(H29),J3000(H25)[15V or less]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
JAPAN TUV R-PSE, Cert. No. JD 50313287, to J60950-1(H26) , J55022(H22),J3000(H25)[DC30?60V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
JAPAN TUV R-PSE, Cert. No. JD 50313287, to J60950-1(H26) , J55022(H22),J3000(H25)[DC15?30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
