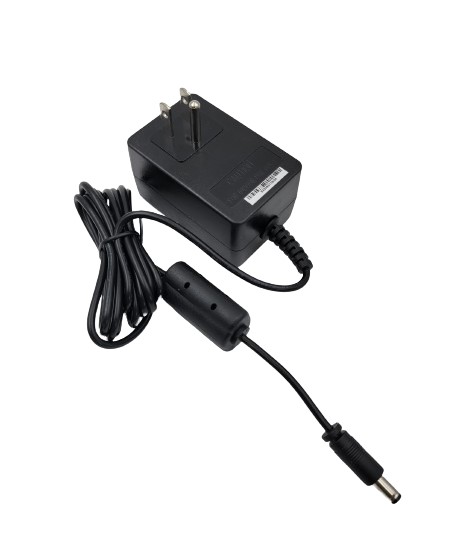

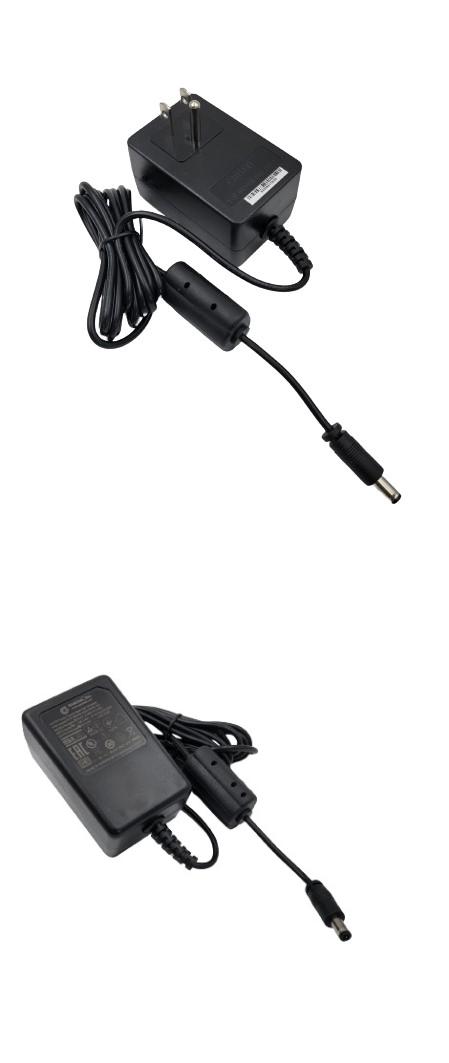

GT-21089-W3 Wall Plug-in ICT/ITE Power Supply
GT-21089-W3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GT-21089-W3, ICT/ITE Power Supply, Wall Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, North America Blades with Ground Prong, Class I, (3) Conductors, Output Rating: 19 Watts, Power rating with convection cooling (W) , 3-24V in 0.1V increments, Approvals: EAC; WEEE; Ukraine; LPS 60950; China RoHS; Class I; PSE; VCCI; CB 60950; RoHS; cUL 60950; IP40; SIQ; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model Number | GT-21089-W3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Agency Documents | http://www.globtek.info/certs/GT-21089/ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE EC-Declaration for Medical | Contact GlobTek for more information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE EC-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ec_declaration?id=a0Oa000000KXD1yEAH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE EC-Declaration for Household | Contact GlobTek for more information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
UKCA-Declaration for Medical | Contact GlobTek for more information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
UKCA-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ukca_declaration?id=a0Oa000000KXD1yEAH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
UKCA-Declaration for Household | Contact GlobTek for more information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Morocco SDoC Declaration | https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000KXD1yEAH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
RoHS/RoHS3 Declaration | https://www.globtek.com/pdf/rohs_cert/a0Oa000000KXD1yEAH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Prop 65 Statement | https://www.globtek.com/r2/PH7CNf | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
REACH Declaration | https://www.globtek.com/r2/eM2co8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Conflict Minerals Declaration | https://www.globtek.com/r2/vZY8R5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type | Wall Plug-in | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technology | Regulated Switchmode AC-DC Power Supply AC Adaptor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Category | ICT/ITE Power Supply | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage Range (V) | 100-240V~, 50-60 Hz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Input Current (A) | 0.5A MAX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Output Power Rating (W) | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Voltage Range (V) | 3-24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency | N/A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size (mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rating Table | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* (Final ordering #/Part No to be defined) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
A) ELECTRICAL SPECIFICATIONS: 01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac 02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz 03. Output Regulation: +/- 5% measured at the output connector 04. Line Voltage Regulation: +/- 1% typical measured at full load 05. Output Ripple : 1% of output voltage, peak to peak, typical 06. Turn-ON/OFF: 5% maximum,1 mS typical recovery time for 25% step load 07. Turn-ON Delay: 1 Second, typical 08. Hold-Up Time: 10 mS typical at nominal input voltage and full load 09. Inrush Current: 30A typical at 115Vac and 40A typical at 230Vac input 10. Switching Frequency: 100 KHz typical, varies with line and load 11. Efficiency: 75% typical at nominal input and full load B) PROTECTION 01. Over-Voltage: limited by crowbar method 02. Over Load/Short Circuit: Momentary short circuit protected, output will auto recovery upon removal of short 03. Input Protection: Input line fusing C) SAFETY 01. Dielectric Withstand Voltage: 4242 Vdc from primary to secondary (for Class II with functional ground) 02. Earth Leakage Current: <3.5mA at 264 Vac input voltage 03. Earth continuity test:<0.1Ω or < 0.2Ω when with a non-DETACHABLE POWER SUPPLY CORD D) OTHER: 01. MTBF: 200,000 Hours @ 25°C ambient temperature 02. Operating Temperature: 0°C to 30°C ambient temperature 03. Humidity: 0% to 90% relative humidity 04. Storage Temperature: -10°C to 80°C 05. Cooling: Convection 06. RoHS 2: Complies with EU 2011/65/EU China SJ/T 11363-2006 E) ENCLOSURE 01. Housing: High impact plastic, 94V0 polycarbonate, non-vented 02. Size: 74*49*40.5 +/-0.5 mm 03. Markings: Label and/or Pad Printed and/or Molded in the case | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Derating Curve | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Qty (ea.)/Carton | 56 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Individual Box/Gift Box Size (mm) | 110*90*54 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Individual Box/Gift Box Color | White | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Master Carton Size (mm) | 455 x 405 x 220 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight (kg) | 13.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Label Width (mm) | 35.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Label Height (mm) | 35.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Configuration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description | North America Blades with Ground Prong, Class I, (3) Conductors | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Configuration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Common output connector options: Click to add to your request.
Comprehensive list of GlobTek output cordset options Contact GlobTek for your specific requirements or custom solutions. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Approvals | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice. Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
