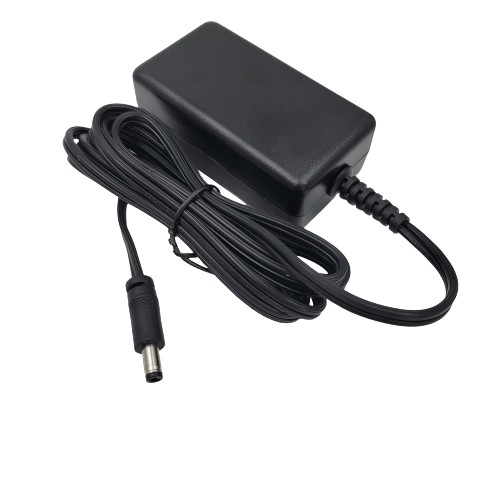

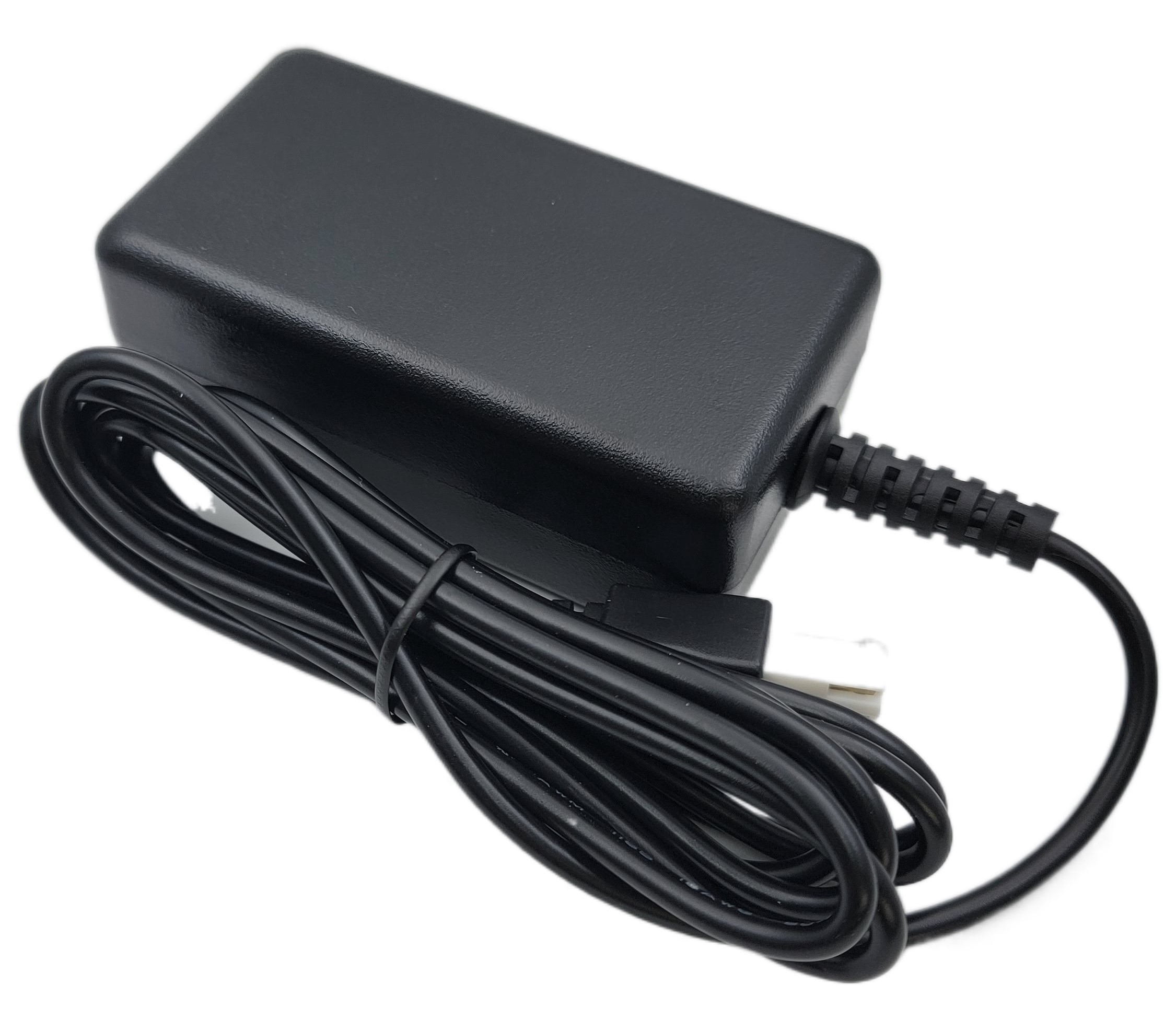

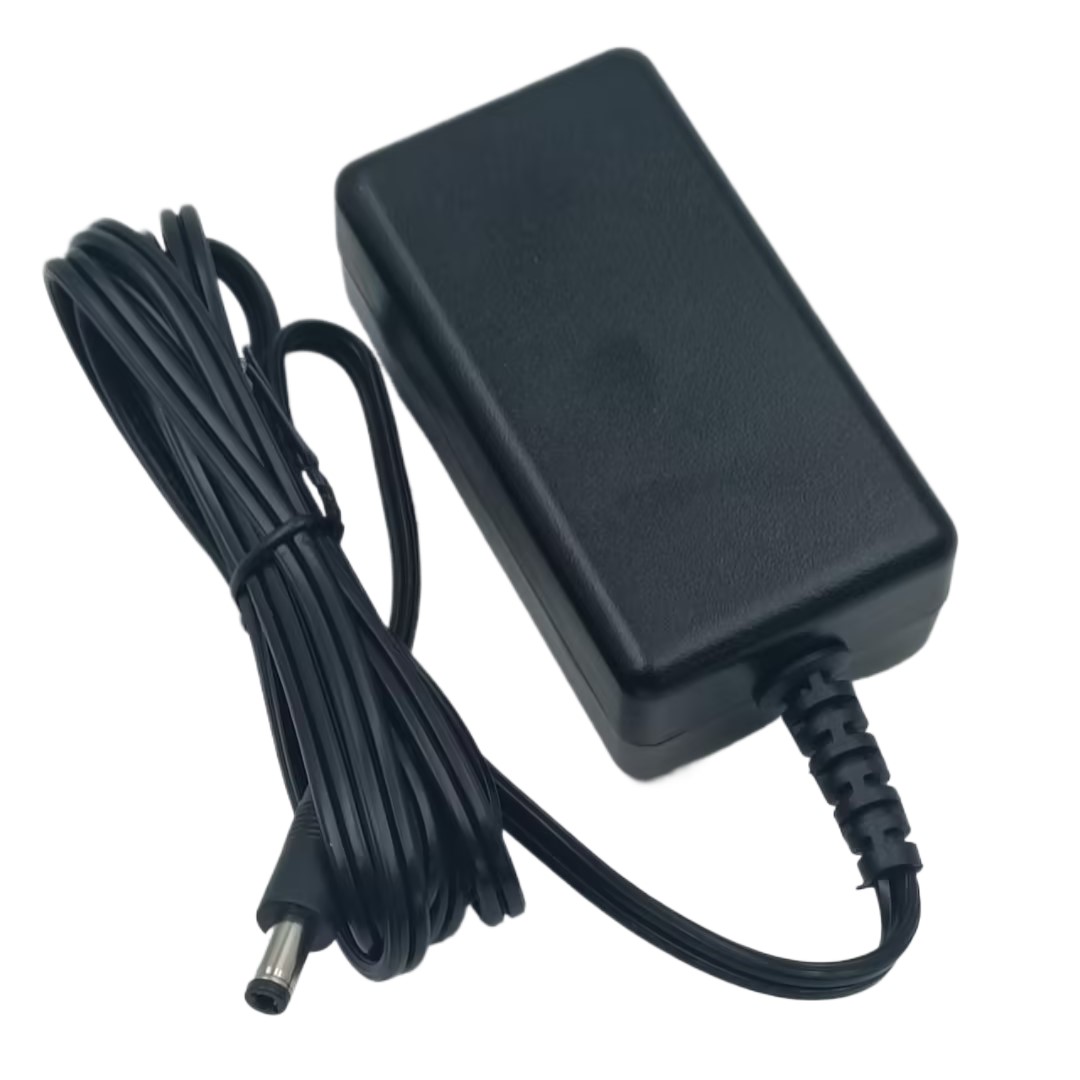

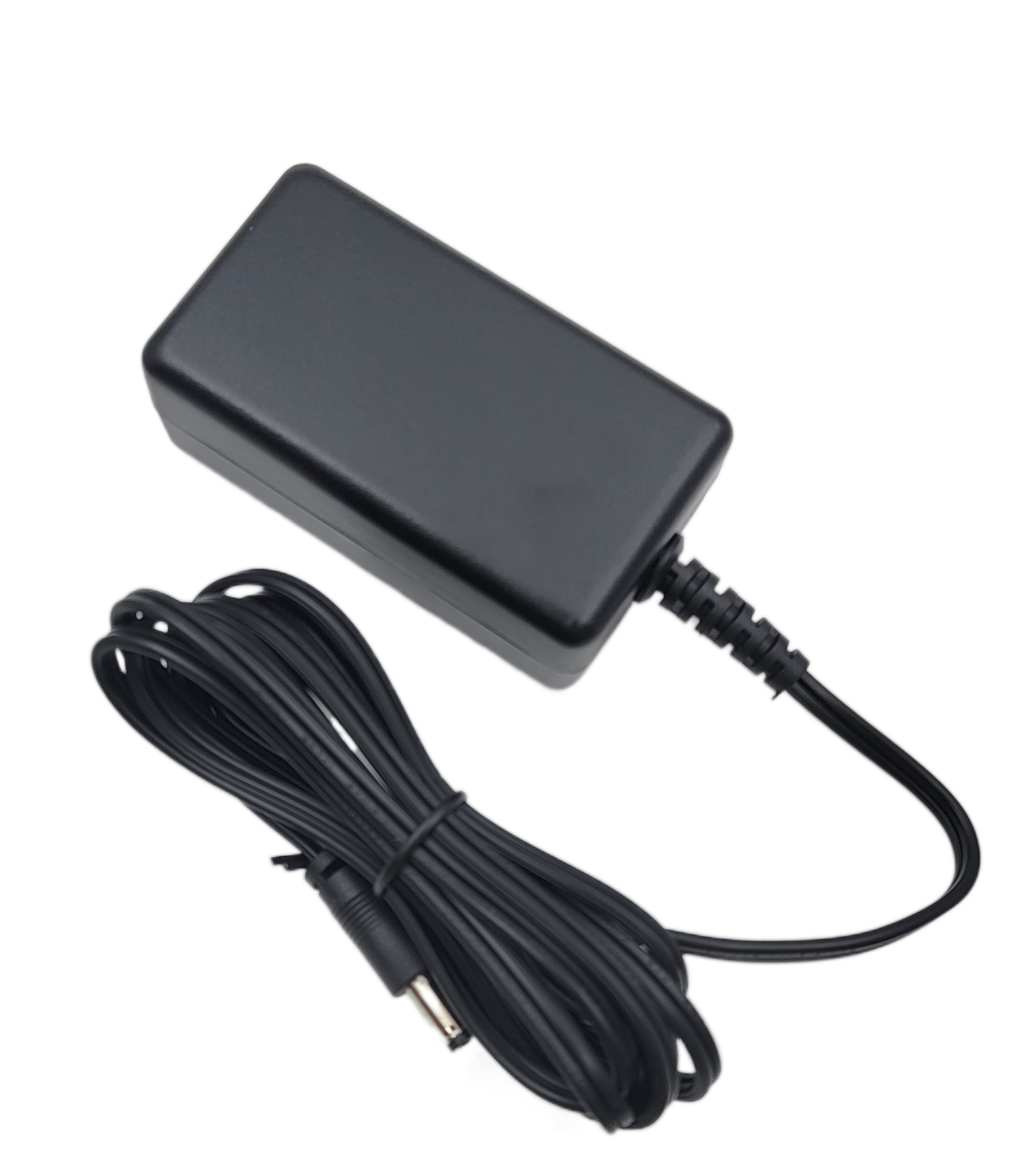

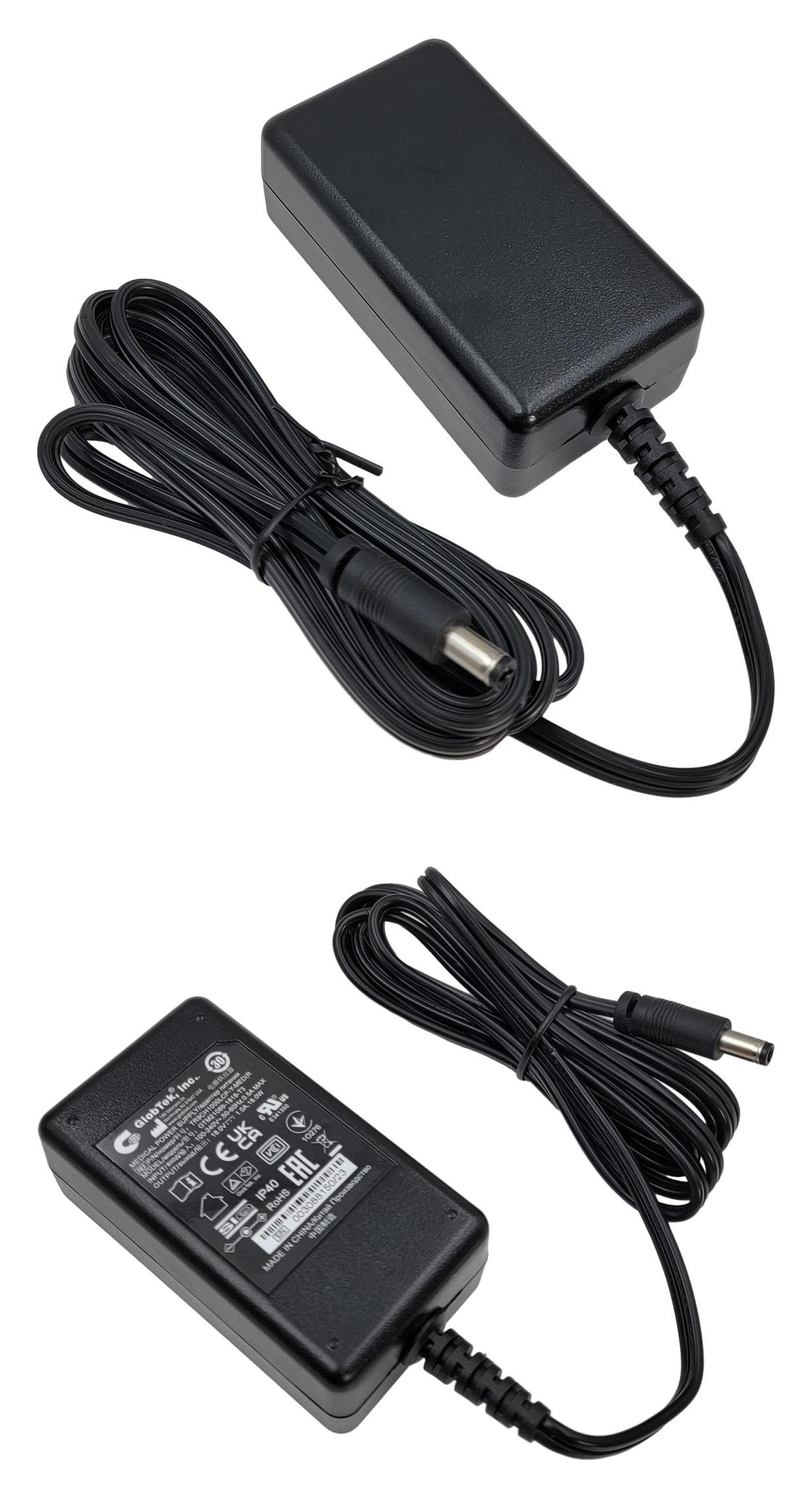

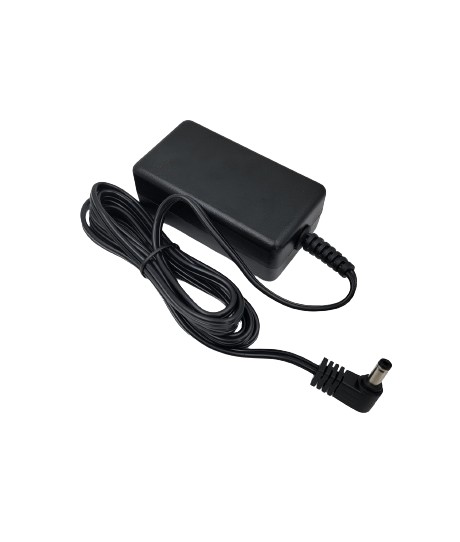

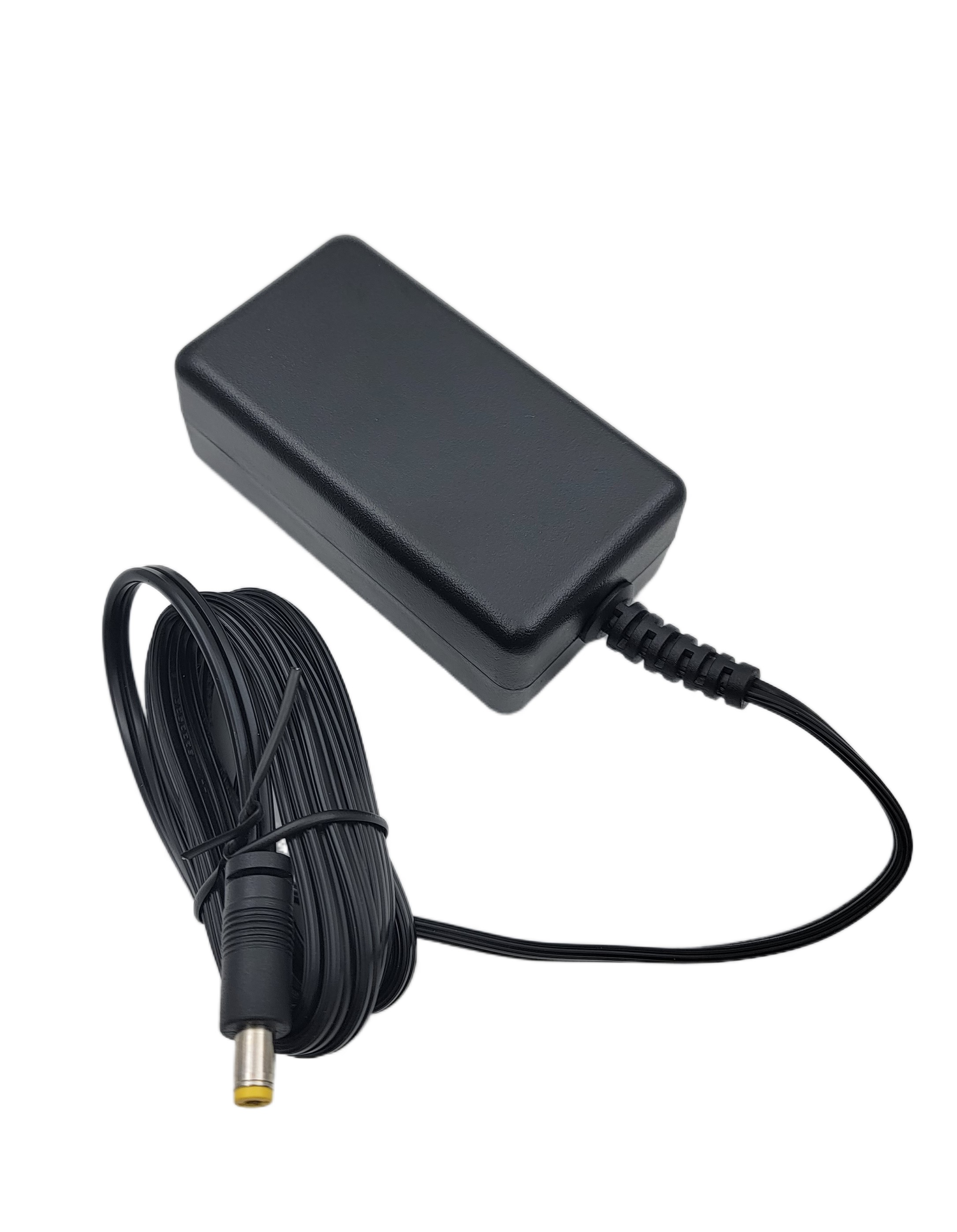

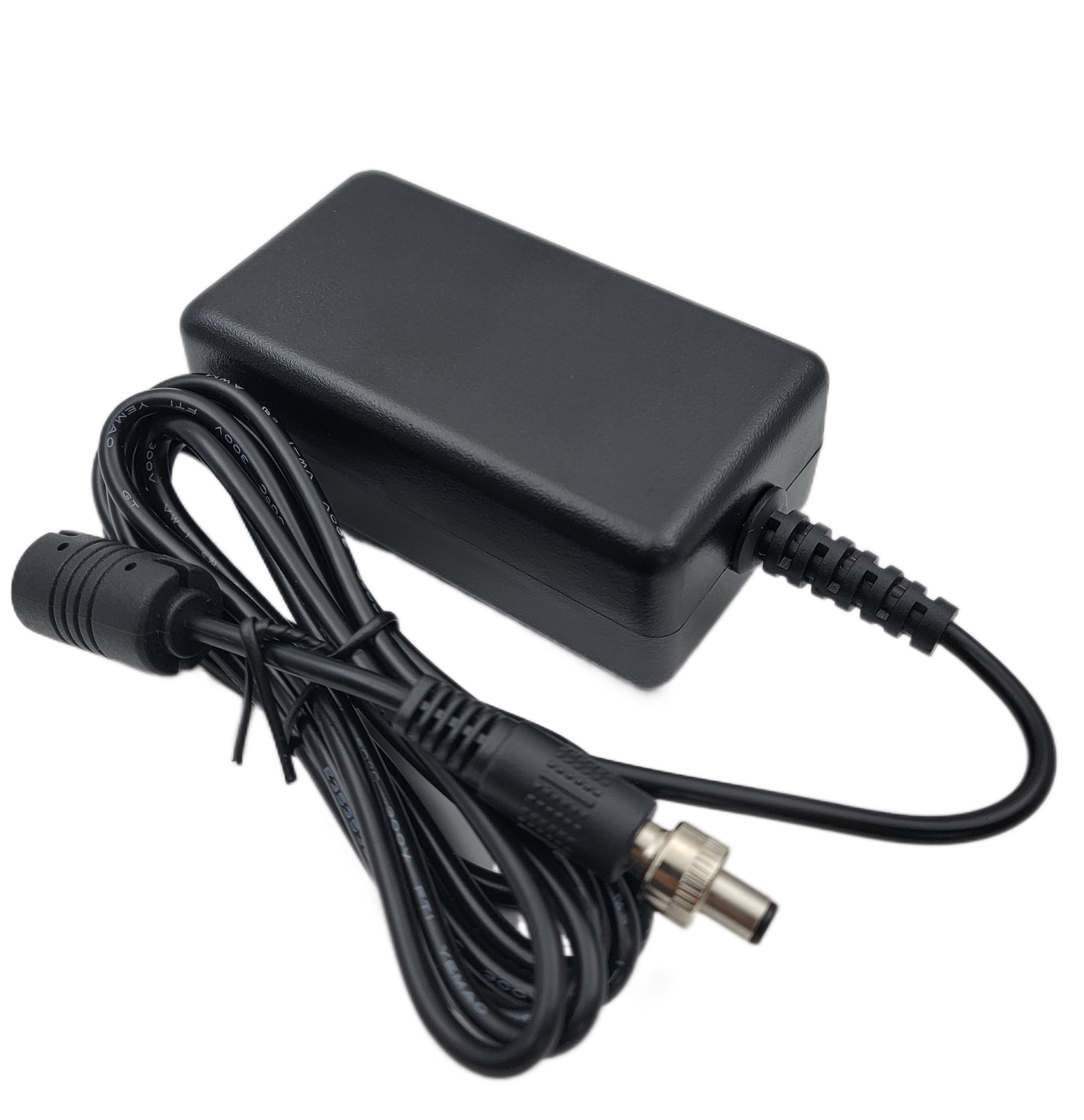

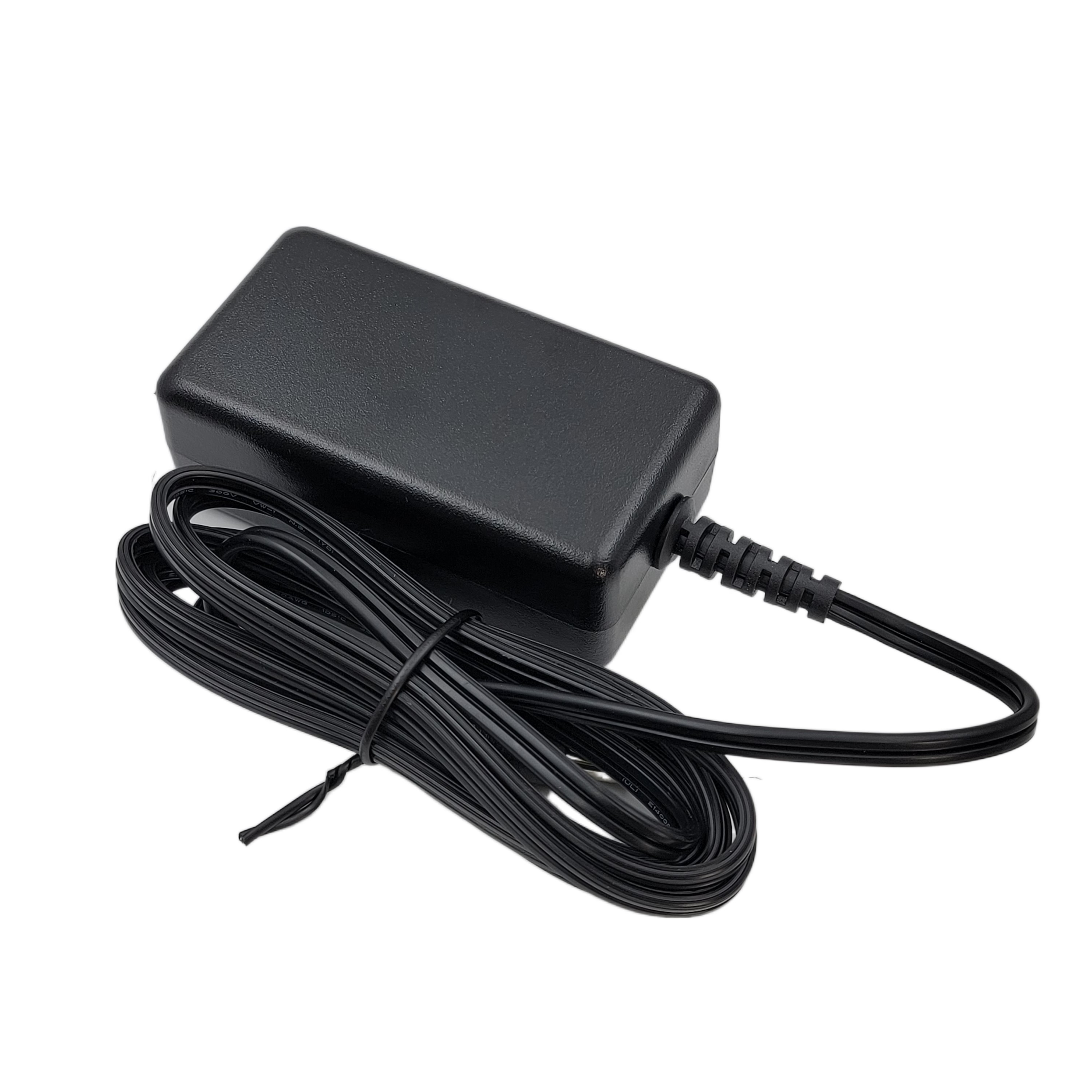

Regulated Switchmode AC-DC Power Supply AC Adaptor
Category
ICT/ITE Power Supply
Input Voltage Range (V)
100-240V~, 50-60 Hz
Max Input Current (A)
0.5A MAX
Max Output Power Rating (W)
19
Output Voltage Range (V)
3.3-48
Efficiency
N/A
Ingress Protection
Size (mm)
86.5*47.4*32
Enclosure
Grounding scheme of this model is functional earth.
Rating Table
Model Number (Final ordering #/Part No to be defined)
Voltage (V)
Current (A)
Power (W)
RFQ
GT-21089-0903-T3*
3.3
2.6
8.58
GT-21089-1305-T3*
5
2.6
13
GT-21089-1506-T3*
6
2.5
15
GT-21089-1509-2.5-T3*
6.5
2.3
14.95
GT-21089-1509-1.5-T3*
7.5
2
15
GT-21089-1509-T3*
9
1.7
15.3
GT-21089-0909-T3*
9
1
9
GT-21089-1512-T3*
12
1.25
15
GT-21089-1815-T3*
15
1.2
18
GT-21089-1818-T3*
18
1
18
GT-21089-1824-T3*
24
0.75
18
GT-21089-1836-T3*
36
0.5
18
GT-21089-1948-T3*
48
0.4
19.2
* (Final ordering #/Part No to be defined)
Specifications
ELECTRICAL SPECIFICATIONS: A) ELECTRICAL SPECIFICATIONS: 01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac 02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz 03. Output Regulation: +/- 5% measured at the output connector 04. Line Voltage Regulation: +/- 1% typical measured at full load 05. Output Ripple (Vp-p): 1% or 100 mV whichever is greater, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with a low impedance 47 uf electrolytic capacitor connected at the end of the output connector 06. Turn-ON/OFF: 5% maximum,1 mS typical recovery time for 25% step load 07. Turn-ON Delay: 1 Second, typical 08. Hold-Up Time: 10 mS typical at nominal input voltage and full load 09. Inrush Current: 30A typical at 115Vac and 40A typical at 230Vac input 10. Switching Frequency: 100 KHz typical, varies with line and load 11. Efficiency: 75% typical at nominal input and full load
B) PROTECTION 01. Over-Voltage: limited by crowbar method 02. Over Load/Short Circuit: Momentary short circuit protected, output will auto recovery upon removal of short 03. Input Protection: Input line fusing
C) SAFETY 01. Dielectric Withstand Voltage: 4242 Vdc from primary to secondary (for Class II with functional ground) 02. Earth Leakage Current: <3.5mA at 264 Vac input voltage 03. Touch Current: <0.25mA @ 240Vac input voltage 04. Earth continuity test:<0.1 or < 0.2 when with a non-DETACHABLE POWER SUPPLY CORD
D) OTHER: 01. MTBF: 200,000 Hours @ 25°C ambient temperature 02. Operating Temperature: 0°C to 40°C ambient temperature 03. Humidity: 0% to 90% relative humidity 04. Storage Temperature: -10°C to 80°C 05. Cooling Convection 06. RoHS 2: Complies with EU 2011/65/EU China SJ/T 11363-2006
E) ENCLOSURE 01. Housing: High impact plastic, 94V0 polycarbonate, non-vented 02. Size: 86.5*47.0*32 +/-1.0 mm 03. Markings: Label and/or Pad Printed and/or Molded in the case
Derating Curve
Qty (ea.)/Carton
60
Individual Box/Gift Box Size (mm)
147*100*33
Individual Box/Gift Box Color
147*100*33
Master Carton Size (mm)
465 x 415 x 225
Gross Weight (kg)
13.0
Label Width (mm)
36.0
Label Height (mm)
47.5
Input Configuration
Description

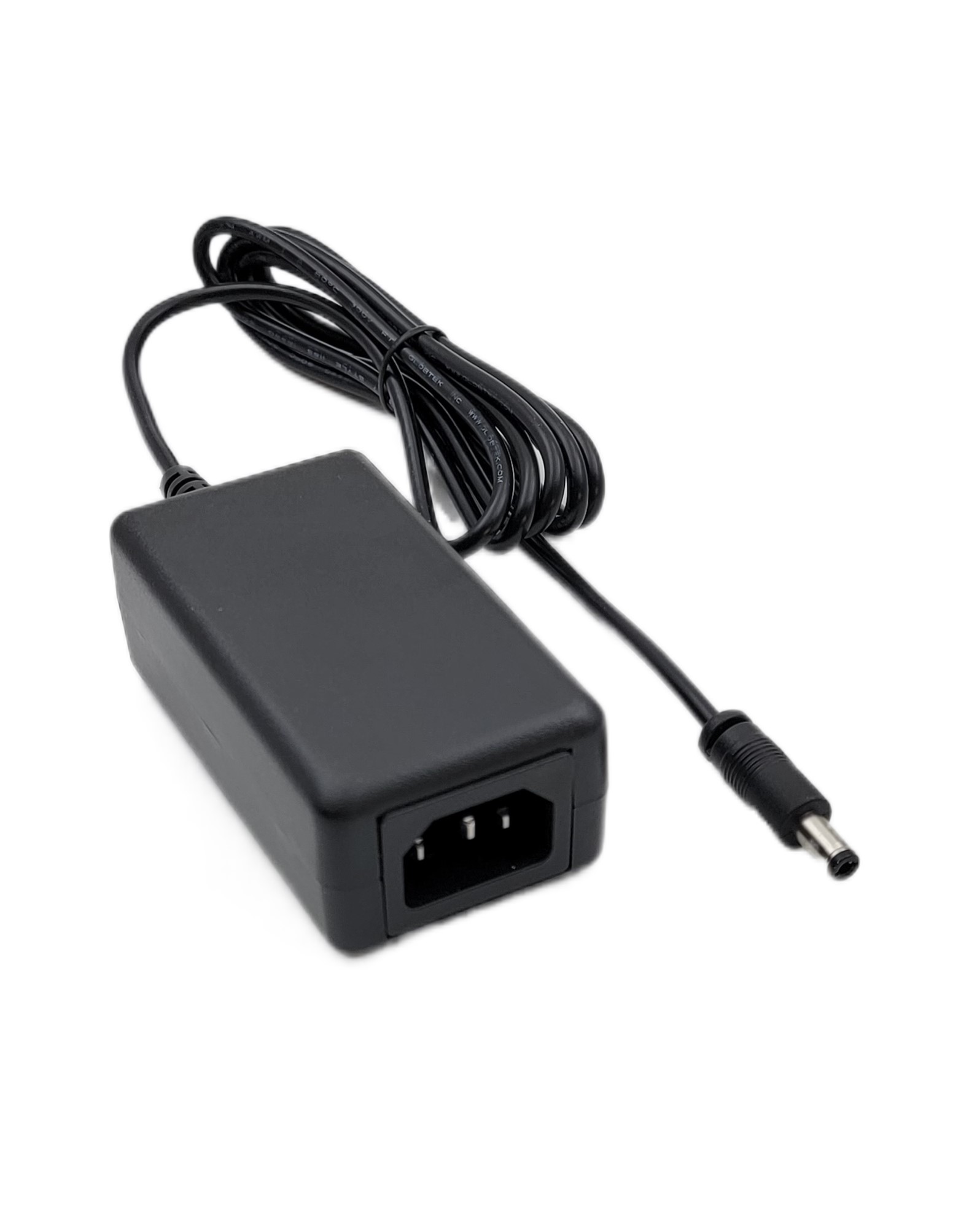

IEC 60320/C14 AC Inlet Connector, Class I, Earth Ground Mates with IEC 60320/C13 Plug
Optional Locking IEC60320 Receptable and cord option available on some models by request.:
Below are standard cordsets which are "not included" (unless stated above); these can be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.
Contact GlobTek for your specific requirements or custom solutions.
Approvals
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.
Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.
Logo
Description
Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
JAPAN TUV R-PSE, Cert. No. JD 50680360.pdf, to J62368-1(2023) , J55032(H29), J3000(H25) ,[15V?30V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
INDIA BIS (GT-21089-T3) 3V, 5V, 6V, 9V, 12V, 15V, 18V, 24V, 48V only
UKCA Certification
No Logo Applicable
CB for IEC 62368-1:2014 (Second Edition)
CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15B - On label or Molded in case
Japan: Voluntary Control Council for Interference (VCCI)
WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
Attention Mark / Refer to operating manual for operating and service instructions
Indoor Use Only - Mark is on the label or Molded in the case
JAPAN TUV R-PSE, Cert. No. JD 50680360 , to J62368-1(2023) , J55032(H29), J3000(H25) ,[30V?60V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
Korea KET KC Mark GT-21089-1305-T3 HU10499-17033A (3V, 4V, 5V, 6V Only)
Korea KET KC Mark GT-21089-1512-T3 HU10040-4015C (12V Only)
Korea KET KC Mark GT-21089-0909-T3 HU10040-12034A ( 9V Only)
LPS
Limited Power Source GT-21089-T3
No Logo
CB Certificate IEC 60950-1:2005 (2nd Edition), Am 1: 2009, CB report IEC 60950-1:2005 (2nd Edition), Am 1: 2009 and EN 60950-1:2006 + Am 1:2010 + Am 11:2009 + Am 12:2011
IP40
Ingress Protection: ?IP40 to IEC60529:2001 Protection against granular foreign bodies
UL60950-1, cULus to UL 60950-1, 1st Edition, 2007-10-31 and CSA C22.2 No. 60950-1-03, 1st Edition, 2006-07, GT-21089-T3 for 3.3-24V only
No Logo
Malaysia ST Release Letter GTM21089-T3 IEC60950-1(Ed.2): 2005 + A1:2009 No logo
JAPAN TUV R-PSE, Cert. No. JD 50680360., to J62368-1(2023) , J55032(H29), J3000(H25) ,[15V or less]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE
IRAM certificate DC-E-G71-001.9 to IEC 60950 + A1:2009
