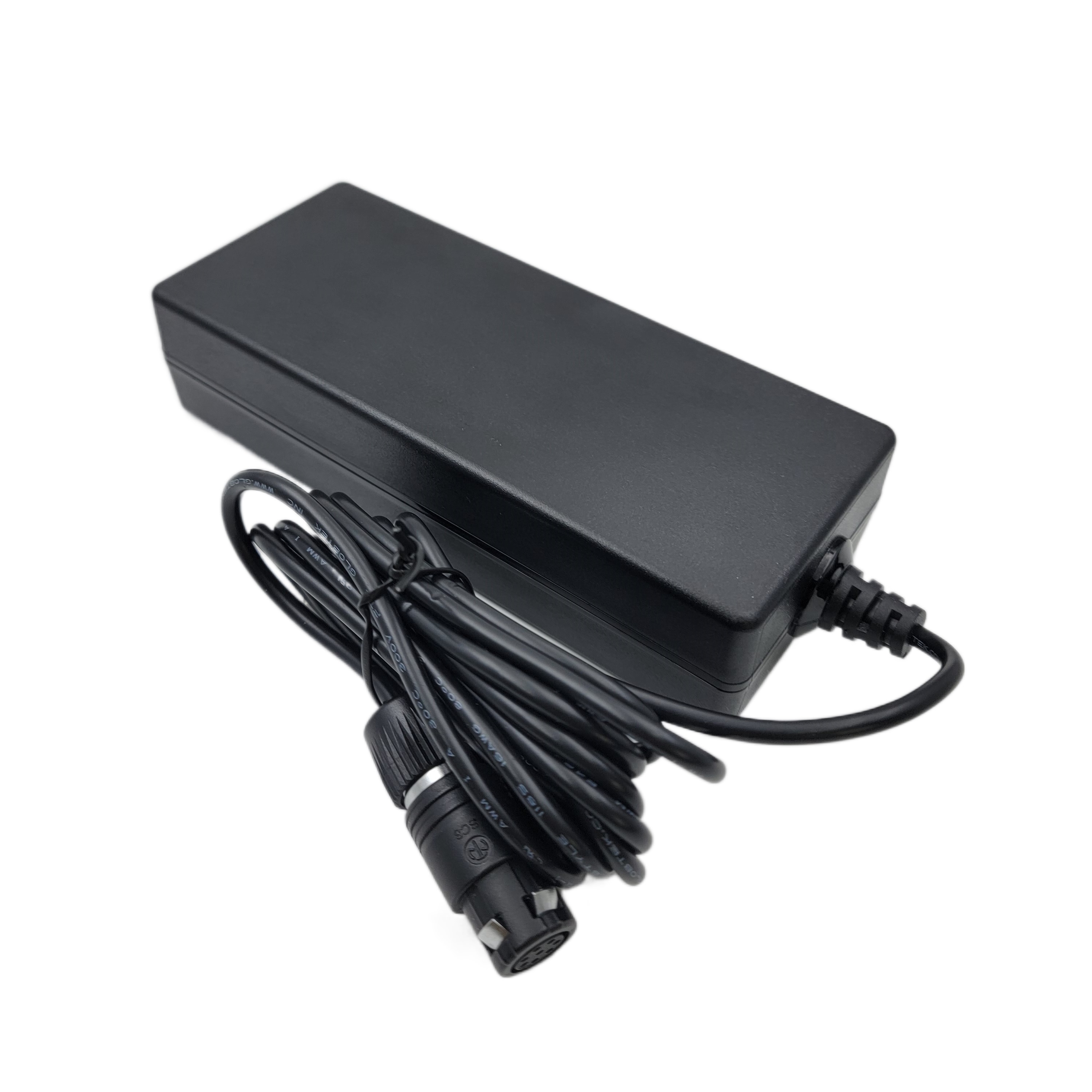

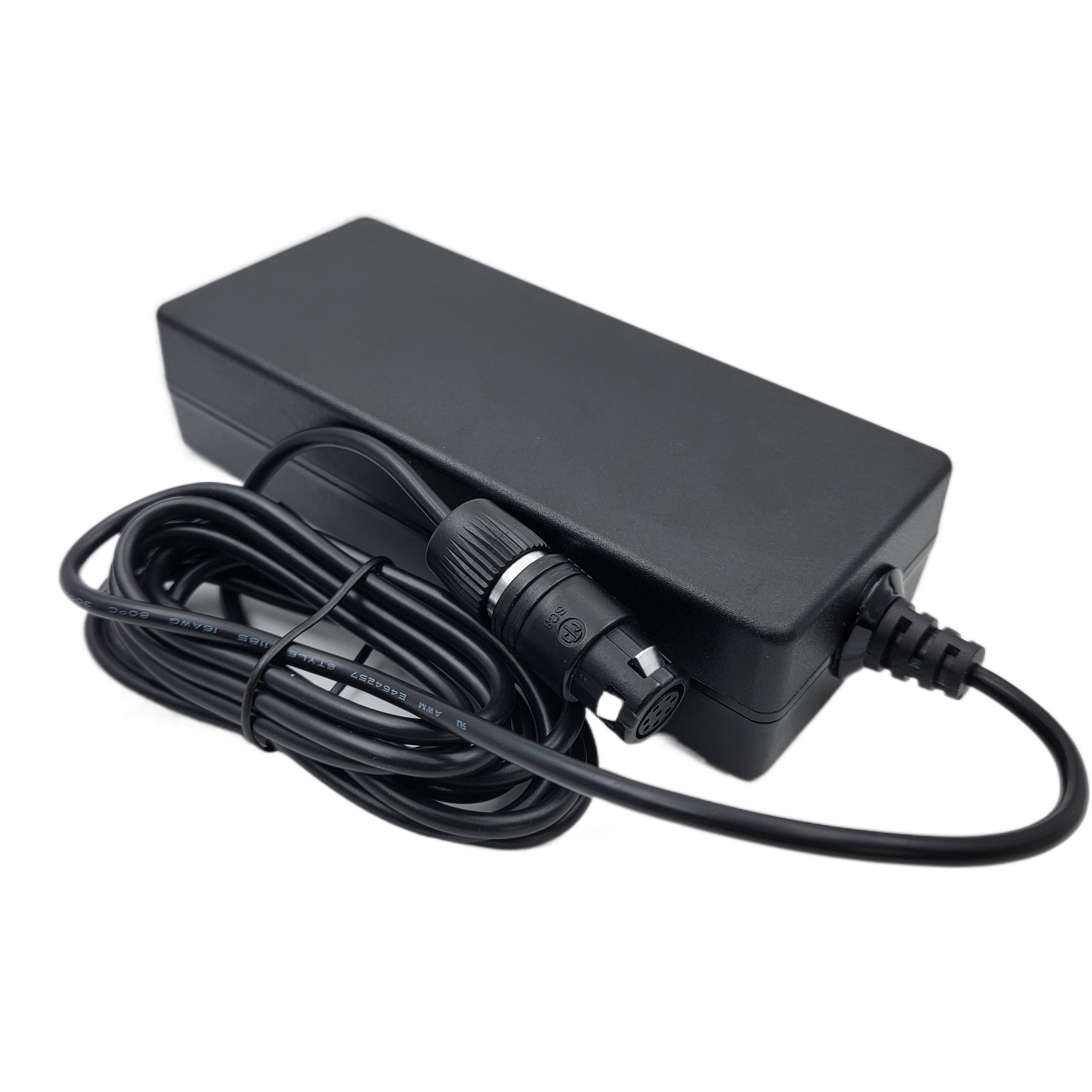

GTM9X1001P-WWWVV-T2A
GTM9X1001P-WWWVV-T2A, ICT / ITE / Medical Power Supply/Class 2/Household Power Supply, 60601-1-4th Ed. , Desktop/External, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V∿ @ 50-60Hz + 115V∿ @ 400Hz, IEC 60320/C18 AC Inlet connector, Class II, Non-Earth Ground, Output Rating: 100 Watts, Power rating with convection cooling (W) , 12-54V in 0.1V increments, Approvals: VCCI; PSE; Double Insulation; China RoHS; RoHS; Ukraine; WEEE; UKCA; Morocco; PSE; PSE; CB 60601-1; cMETus; CE; CB 60601-1 2MOPP;GTM9X1001P-WWWVV-T2A, ICT / ITE / Medical Power Supply/Class 2/Household Power Supply, 60601-1-4th Ed. , Desktop/External, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V∿ @ 50-60Hz + 115V∿ @ 400Hz, IEC 60320/C18 AC Inlet connector, Class II, Non-Earth Ground, Output Rating: 100 Watts, Power rating with convection cooling (W) , 12-54V in 0.1V increments, Approvals: VCCI; PSE; Double Insulation; China RoHS; RoHS; Ukraine; WEEE; UKCA; Morocco; PSE; PSE; CB 60601-1; cMETus; CE; CB 60601-1 2MOPP;
Information
Model NumberGTM9X1001P-WWWVV-T2A
Agency Documentshttp://www.globtek.info/certs/GTM9X1001P/
CE EC-Declaration for Medicalhttps://cs.globtek.info/ec_declaration?id=a0O0c00000QCxcTEAT
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O0c00000QCxcTEAT
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for Medicalhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000QCxcTEAT
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000QCxcTEAT
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000QCxcTEAT
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O0c00000QCxcTEAT
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeDesktop/External
TechnologyRegulated Switchmode AC-DC Power Supply AC Adaptor
CategoryICT / ITE / Medical Power Supply/Class 2/Household Power Supply
Input Voltage Range (V)100-240V∿ @ 50-60Hz + 115V∿ @ 400Hz
Max Input Current (A)1.5A
Max Output Power Rating (W)100
Output Voltage Range (V)12-54
Efficiency/ Europe Code of Conduct on Energy Efficiency of External Power Supplies - Version 5
Ingress ProtectionIP54
Size (mm)149.4 x 62.6 x 34

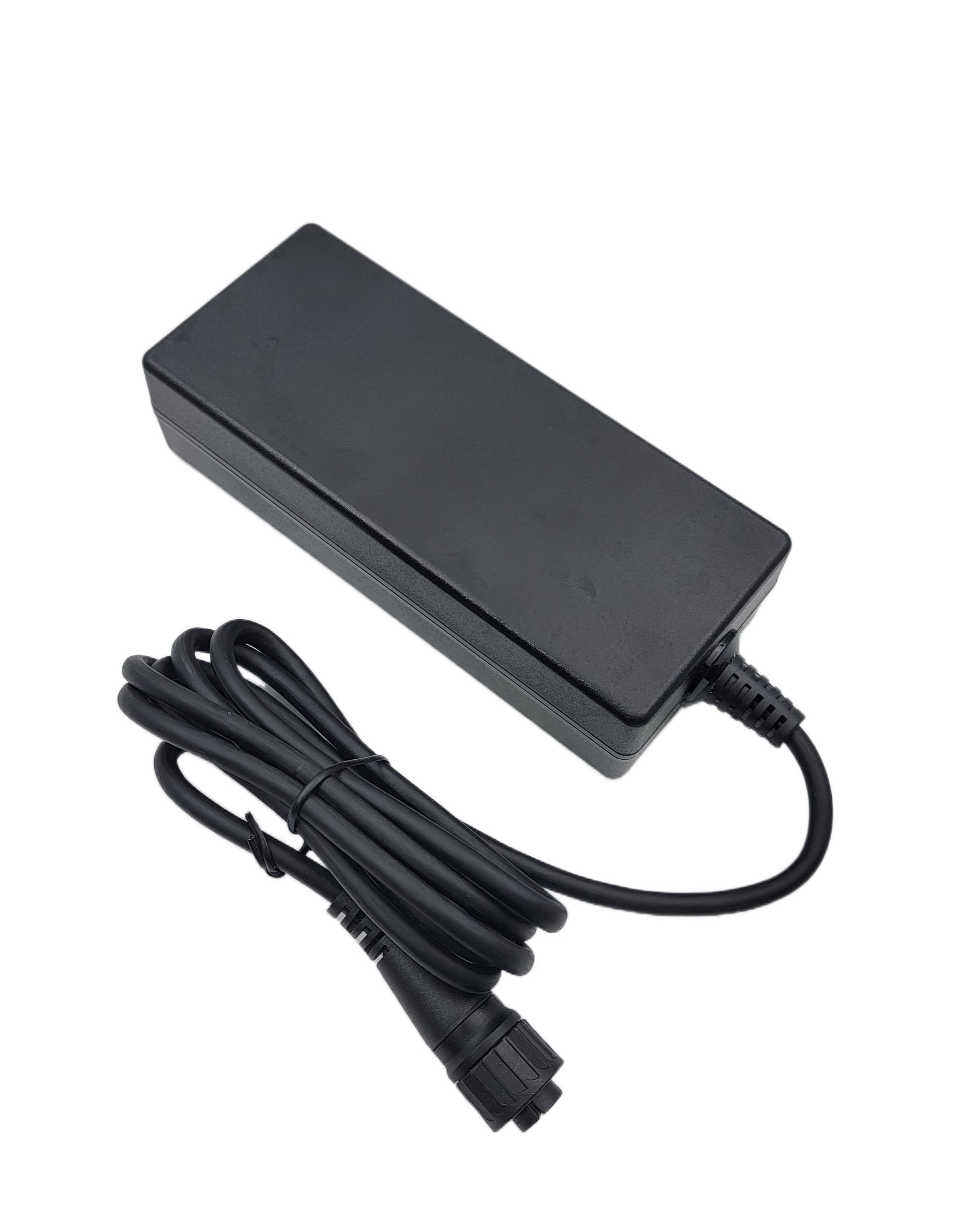

EnclosureUser-added image


Rating Table
Preferred ratings shown below.
Custom output voltages available in 0.1V increment from the minimum voltage listed to the maximum voltage listed; contact sales.
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
AP364077*
AP364078*
AP262917*
AP130726*
AP238080*
AP130725*
AP262918*
AP130729*
AP130727*
AP130728*
AP305546*
AP130730*
AP130724*
AP305540*
AP130731*
AP249978*
AP130723*
MET (cMETus) ANSI AAMI ES 60601-1 Power Supply for GTM9X1001P*ANSI AAMI ES 60601-1; IEC 60601-1-6 Medical Elec. Equip.- Part 1-11: Gen. Req. For Basic Safety & Essential Perf.- Collateral Standard - Req For Med Elec. Equip. & Medical Elec. Systems Used In The Home Healthcare Environment [IEC 60601-1-11:2015 Ed.2]
CE/EMC 60601-1-2 EN55032 and EN55025*CE Certification Class II CE Mark: tested to comply with EN 55032.2015+A1.2020 EN 61000-3-2.2019+A1:2021 EN 61000-3-3.2013 +A1:2019 + A2:2021 EN 55025
CB report 60601 for GTM9X1001P*CB for IEC 60601-1:2005 (Third Edition) + CORR. 1 (2006) + CORR. 2 pending (2007) + AM1 (2012) or IEC 60601-1 (2012 reprint) (Ed 3.1) up to 48V only
CB report 60601-1 cMETus*CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP
83705*
GTM9X1001P-WWWVV-T2A-XXXXCUSTOMCUSTOMCUSTOM
* (Final ordering #/Part No to be defined)
Specifications

Features

  • Aerospace qualified (per RTCA/DO-160G)
  • IEC60601-1-11 "Home Healthcare" certified @ 80VAC
  • Extremely low input current distortion
  • Enhanced immunity capability
  • Exceptionally low inrush current
  • Low leakage current @ 400Hz input
  • Shock & vibration in accordance with IEC60601-1-12 (EMS) & DO-160G

Input

Input Range (Terrestrial):100 - 240VAC @ 50 - 60Hz (nameplate, nominal)
80 - 264VAC @ 47- 63Hz (rated)
Input Range (Aviation):115VAC @ 400Hz (nameplate, nominal)
100-122VAC @ 360 - 440Hz (rated)
No Load Input Power:< 150mW @ 115VAC / 230VAC
Inrush Current:20A max. @ 264VAC
Meets DO-160G, Section 16.7.5.2 for A(CF) equipment
Line Current Distortion:Meets DO-160G, Section 16.7.1.2 for A(CF) equipment, ≥ 60W load
Power Factor (PF):> 0.99 @ 115V/60Hz, > 0.95 @ 230V/50Hz, > 0.95 @ 115V/400Hz (50 - 100W load)
Meets DO-160G, Section 16.7.8.2 for A(CF) equipment
Efficiency:> 87% @ 115VAC, 4-pt. average
> 88% @ 230VAC, 4-pt. average

Output

Turn-on Delay:< 2 seconds
Output Regulation+2% / -5% max. (measured at the output connector)
Line Regulation:± 0.2 % max. (measured at the output connector)
Ripple:1% max. (using a 10µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector)
Transient Response (Step Load):10% max. deviation, 2ms max. recovery time (100W load step)
Transient Response
(Load Dump):		5% max. deviation, 100ms max. recovery time (100W load dump)
Hold-up Time:20ms min.  (80VAC and full load)

Protections

Input Protection:MOV transient suppressor, input line fusing
Over-Voltage Protection:110 - 130%, Latching, cycle AC to reset
Over-Current Protection:115 - 150%, Auto-recovery
Short-Circuit Protection:Auto-recovery
Over-Temperature Protection:Auto-recovery

Environmental

MTBF:> 1,500,000 hours @ 25°C ambient (Telcordia SR-332, Issue 3)
> 750,000 hours @ 50°C ambient (Telcordia SR-332, Issue 3)
Operating Temperature:-10°C to 40°C (100W)
Check derating curve for T > 40°C.
Storage Temperature:-40°C to 80°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Natural convection
Shock:End use handling: Half-sine, <3ms duration, 1.65m/s, 3 shocks per face
Transportation simulation: Trapezoid, 60G acceleration, 5.75m/sec, 3 shocks per face
General shock: Half-sine, 100G acceleration, 6ms duration, 3 shocks per face
Vibration:IEC60601-1-12, Section 10.1.3, Clause B
DO-160G, Section 8, Procedure 8.8, Category U, Zone 1A
Bump:EN1789, Clause 6.4.1
Drop:EN1789, Clause 6.4.2
Ingress Protection:IP54
RoHS:Complies with EU 2015/863 and China SJ/T 11363-2006

Safety

Compliant Standards:General medical: IEC60601-1
Home healthcare: IEC60601-1-11 (2-conductor input models only)
Emergency medical services (EMS): IEC60601-1-12 (2-conductor input models only)
Information & communications technologies (ICT): IEC62368-1
Dielectric Withstand Voltage:4000VAC or 5656VDC, primary-to-secondary
1768VAC or 2500VDC, primary-to-earth (3-conductor input models only)
1500VAC or 2121VDC, secondary-to-earth (F2 configuration only)
10mA, 1 minute
Output Touch Current:2-conductor input :
NC: 40µA max. (60Hz), 80µA max. (400Hz)
SFC: 60µA max. (60Hz), 150µA max. (400Hz)

3-conductor input:
NC: 10µA max. (60Hz), 30µA max. (400Hz)
SFC: 45µA max. (60Hz), 110µA max. (400Hz)
Earth Leakage Current2-conductor input: N/A
3-conductor input: 200µA max.
Means of Protection (Primary-to-Secondary):2 x MOPP
Output Isolation Options:2-conductor input: Class II
3-conductor input: Earthed output (Class I) or functionally earthed ("F2")


EMC

Compliant Standards:Medical: EN 60601-1-2
Airborne Equipment: RTCA DO-160G
Emissions: EN55032, EN61000-6-3, EN61000-6-4
Immunity: EN55024, EN61000-6-1, EN61000-6-2
Conducted Emissions:EN55032/CISPR11, Class B
DO-160G, Section 21.4, Category M
(measured with resistive load)
Radiated Emissions:EN55032/CISPR11, Class B
DO-160G, Section 21.5, Category M
(measured with resistive load)
Harmonic Current Voltage Distortion:EN61000-3-2, Class A
Meets DO-160G, Section 16.7.1.2 for A(CF) equipment
Voltage Fluctuations/Flicker:EN61000-3-3
Electrostatic Discharge (ESD) Immunity:EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A
DO-160G, Section 25.5, Category A
Radiated RF Immunity:EN61000-4-3, 20V/m @ 800MHz - 2.7GHz, 80% 1KHz AM, 80% 5Hz AM, Criterion A
DO-160G, Section 20.5, Category R
EFT/Burst Immunity:EN61000-4-4, 4KV/100KHz., Criterion A
Line Surge Immunity:EN61000-4-5, 2KV differential-mode, 4KV common-mode, Criterion A
Conducted RF Immunity:EN61000-4-6, 3VRMS & 6VRMS, 80% 1KHz AM, Criterion A
DO-160G, Section 20.4, Category R
Power Frequency Magnetic Field Immunity:EN61000-4-8, 30A/m, Criterion A
DO-160G, Section 19.3, Category ZC
Voltage Dip Immunity:EN61000-4-11, 20ms 100% dip @ Criterion A, 500ms 30% dip @ Criterion B, 5sec 100% dip @ Criterion B
DO-160G for A(CF) equipment

Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Markings:Adhesive backed label or laser engraving



Derating CurveUser-added image

Qty (ea.)/Carton60
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box Color
Master Carton Size (mm)480 x 450 x 205
Gross Weight (kg)15.2
Label Width (mm)50.0
Label Height (mm)110.0
Input Configuration
DescriptionIEC 60320/C18 AC Inlet connector, Class II, Non-Earth Ground

Mates with IEC 60320/C17 Plug
User-added image

Standard International IEC 320/C17 Cordsets
Below are standard cordsets which are "not included" (unless stated above); these may be purchased separately or packaged with the power supply. Please contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.
Part Number/ LinkCountryPlugTerminationLength (mm)Length (Ft)
209A4062M071(R)Argentina (Type I)IRAM 2063IEC320/C1720006.6
5014112M071A(R)Australia (Type I)AS3112IEC 320/C1720006
204B4062M071(R)Brazil (Type N)NRR 14136IEC320/C1720006.6
4533502M071(R)China (Type A)GB 2099.1IEC320/C1720006.6
2074232M071C(R)Europe (2.5A, Type C)CEE 7/7IEC 320/C1720006.6
489C4232M071A(R)Europe (10A)CEE 7/17IEC320/C1720006.6
208A41111M8071A(R)India (Type D)IS 1293IEC 320/C1718006
451J3322M071AJapan (Type A)JIS 8303IEC320/C1720006.6
401P1086F071A(R)North America (Type A)NEMA 1-15PIEC 320/C1718286
401P1219F71ANorth America (Type A)NEMA 1-15PIEC 320/C1727439
4033321M8071(R)Taiwan (Type A)CNS10917IEC 320/C1718006
6104232M071A(R)UK, Hong Kong, Singapore, Gulf States (Type G)BS1363 (Fuse 3A)IEC 320/C1720006.6
6303742M571A(R)Thailand (Type C)TIS 166-2549IEC 320/C1725008
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)
Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.
