Wall Plug In, AC DC Adapter, Power Supplies

Wall plug in power supplies, also known as AC DC adapters or Wall warts, are power supplies used outside of end-use equipment and typically housed in plastic enclosures and have fixed input connectors for direct connection to the wall such as 2 prong North American Nema 1-15P (Type A), 3 Prong North American Nema 5-15P (Type B), 2 Prong European CEE 7/16 (Type C), 3 Prong European CEE 7/7 (Type E and Type F), United Kingdom BS1363 (Type G), Australia/New Zealand AS/NZ 3112 (Type I) and as well as interchangeable input plug options for many countries and regions worldwide. Interchangeable input plugs allow OEMs to have a single power supply unit for all countries and regions while using an accessory for local plug types. GlobTek's line of wall plug in ac dc adapters and power supplies offer universal full range input and convert to a fixed voltage. The output is provided by an output cord.

GlobTek's external Wall plug in Ac-Dc Power Supplies feature:

  • Wall plug in with Output power from 1 W - 65 W
  • Input Voltages for AC DC adapters from 90-264VAC, 50-60Hz, with some models offering an optional 277VAC input.
  • DC Output Voltages for wall plug in power supplies offered between 3 -55VDC in 0.1V increments
  • ITE(Information technology Equipment) / ICT(Information and communications technology) for Wall plug in Ac DC adapters
    • IEC/UL/EN 60950-1 Certifications
    • IEC/UL/EN 62368-1 Certifications
  • Medical certifications
    • IEC/ANSI/AAMI/EN 60601-1 3rd Edition with EMC 6060-1-2 4th edition certified
    • IEC 60601-1-11 Power supplies for the home healthcare environment
  • Household use IEC 60335-1 and/or UL 1310 Certifications
  • LPS (Limited power source) ratings
  • Most products have multiple Standard approvals such as LPS, IEC/EN 60950-1, 62368-1, 60335-1
  • All standard models have North American (UL, ETL), European (CE), Russian (EAC), Ukraine, Japan (PSE), China (CCC), and Australian/New Zealand (RCM) Certifications

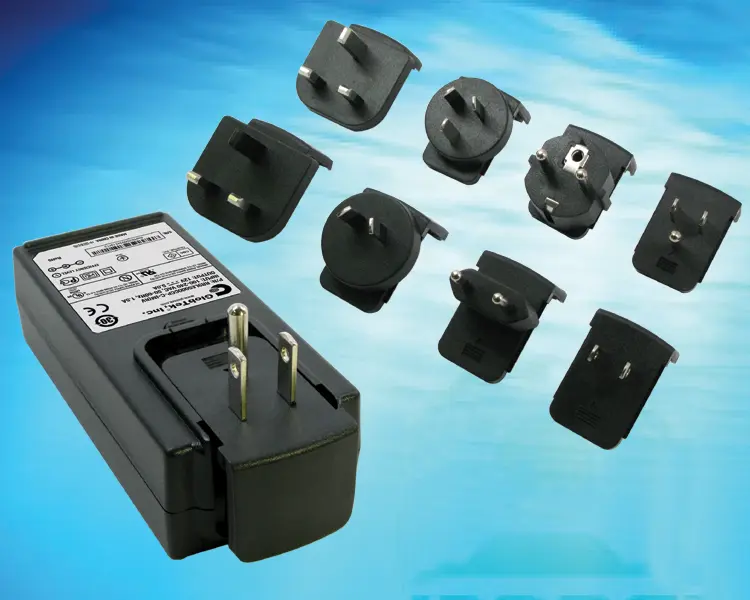

  • Fixed input plug and Interchangeable input blades with up to 14 standard options covering all major countries and regions.
  • Efficency: USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 / Europe Code of Conduct on Energy Efficiency of External Power Supplies - Version 5
  • Industry Standard Configurations as well as custom options
  • SELV and are Isolated for safety purposes
  • Most standard products have a minimum of IP21 Ingress protection
  • Most standard products have elevated Surge tolerance for ESD
  • Elevated IP, Ruggedized, and Water proof versions available
  • Multitudes of standard output connector and overmold options
  • Low cost connector overmold solutions
  • Customized cable lengths

Customization available
