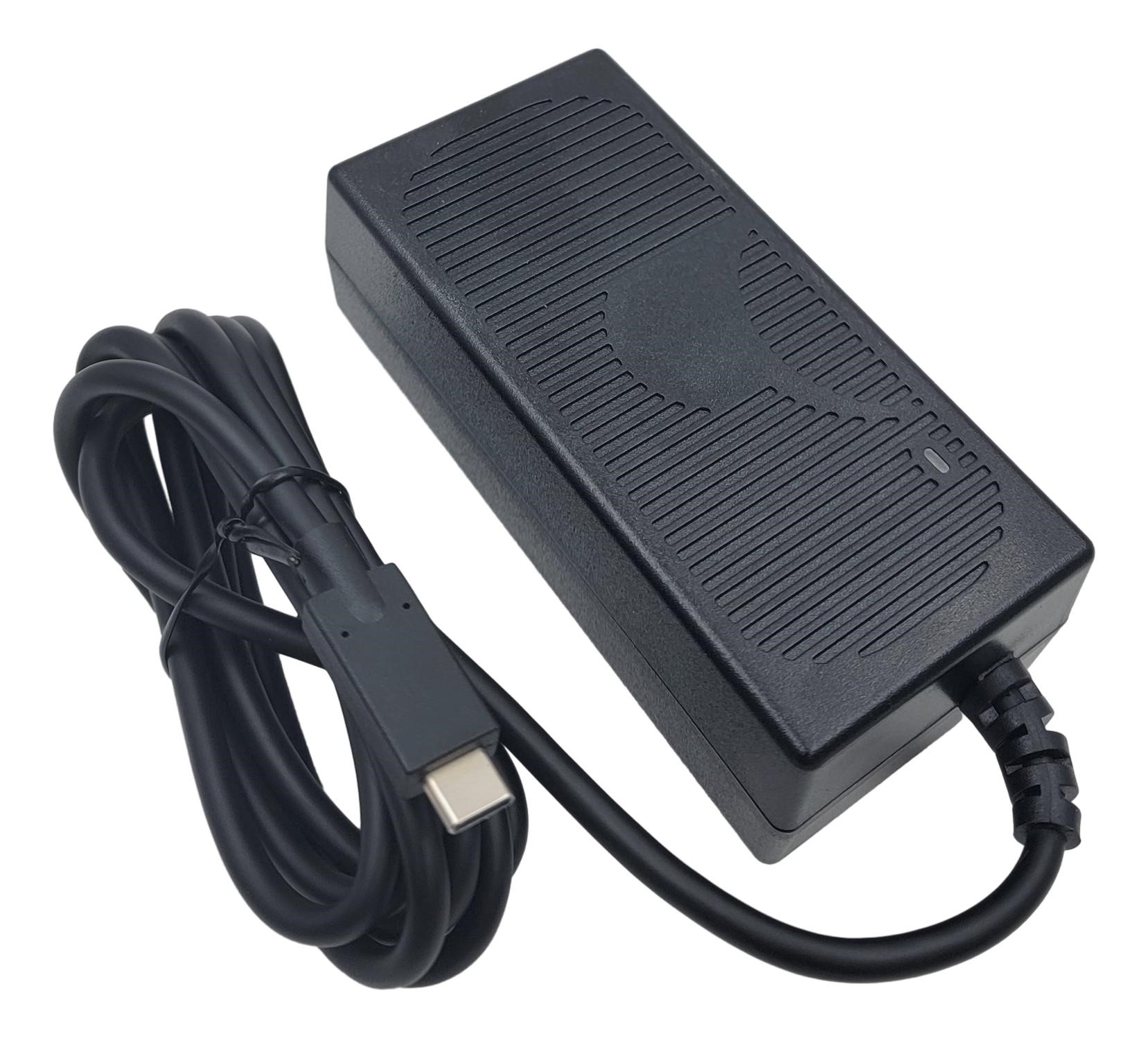

GTM96605-G2-R2 Wall Plug-in+Desktop Combination USB Power Delivery (PD) Source, ICT/ITE/Medical

GTM96605-G2-R2
Communication formats supported: USB Power Delivery (PD) 2.0/3.0, Quick Charge™ 2.0/3.0, Quick Charge™ 4.0/4.0+ with up to 7 voltages and VDM options available. Fully globally certified for Medical 60601-1, ICT 62368Communication formats supported: USB Power Delivery (PD) 2.0/3.0, Quick Charge™ 2.0/3.0, Quick Charge™ 4.0/4.0+ with up to 7 voltages and VDM options available. Fully globally certified for Medical 60601-1, ICT 62368
Information
Model NumberGTM96605-G2-R2
Agency Documentshttp://www.globtek.info/certs/GTM96605-GEN2/
CE EC-Declaration for Medicalhttps://cs.globtek.info/ec_declaration?id=a0O0c00000PIBy9EAH
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O0c00000PIBy9EAH
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for Medicalhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000PIBy9EAH
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000PIBy9EAH
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000PIBy9EAH
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O0c00000PIBy9EAH
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeWall Plug-in+Desktop Combination
TechnologyUSB Adaptive Power Supply AC Adaptor
CategoryUSB Power Delivery (PD) Source, ICT/ITE/Medical
Input Voltage Range (V)100-240V~, 50-60Hz
Max Input Current (A)1.5A
Max Output Power Rating (W)60
Output Voltage Range (V)3.6-20
EfficiencyUSA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782
Ingress Protection
Size (mm)
EnclosureUser-added image
Drawing above is model with output cord
User-added image
Drawing above is model with integrated USBC connector  (suffix -RA)

User-added image

Unit shipped without an installed input plug.
 “Desktop insert” installed.


3D File Downloadhttps://www.globtek.com/dl/GTM96605-R2.igs
Rating Table
Model Number (Final ordering #/Part No to be defined)Output Voltage/Current Levels AvailableRFQ
GTM96605-G2A1-R2*5V/4.6A, 5.8V/4.6A, 9V/4.4A, 12V/4.0A, 15V/3.6A, 15.1V/3.6A, 20V/3.0A
GTM96605-G2A1-R2(PPS)*5V/4.6A, 9V/4.4A, 15V/3.6A, 20V/3.0A, PPS(3.6-11V)/4.0A max, PPS(3.6-16V)/3.5A max, PPS(3.6-20V)/3.0A max
GTM96605-G2A1-R2-RA*5V/4.6A, 5.8V/4.6A, 9V/4.4A, 12V/4.0A, 15V/3.6A, 15.1V/3.6A, 20V/3.0A
GTM96605-G2A1-R2-RA(PPS)*5V/4.6A, 9V/4.4A, 15V/3.6A, 20V/3.0A, PPS(3.6-11V)/4.0A max, PPS(3.6-16V)/3.5A max, PPS(3.6-20V)/3.0A max
* (Final ordering #/Part No to be defined)
Specifications

USB Power Delivery Capabilities

Protocols supported:USB Power Delivery (PD) 2.0/3.0 + PPS
Default Output State:5V/2.0A
Advertised Power Data Objects (PDOs):Standard option: 5V, 5.8V, 9V, 12V, 15V, 15.1V†, 20V
PPS option:         5V, 9V, 15V, 20V, PPS (3.6-11V), PPS (3.6-16V), PPS (3.6-20V)
Output Current:Refer to the 'Rating Table' for output current capability for each USB PD PDO.

Models with -RA suffix have a female USB Type-C connector for use with a detachable USB Type-C cable. If no E-marked cable is detected, the maximum current is limited to 3A.

Models without a suffix have a captive 5A rated cable and can always deliver the full current per the 'Rating Table'.
Note 1:Custom fixed PDOs available upon request. PDO1 must be 5V. PDO2 through PDO7 may be set to any custom voltage from 3.6V to 20V, with a step size of 100mV.
Note 2:In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk. The power adapter's identity may be checked and validated prior to PD contract negotiation by using USB PD Vendor Defined Messages (VDMs). Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Qualcomm Quick Charge™ Capabilities

Protocols supported:Quick Charge™ 2.0/3.0
Default Output State:5V/2.0A
HVDCP Class B Profiles:
D+D-Output
0.6VGND5.0V/4.6A
3.3V0.6V9.0V/4.4A
0.6V0.6V12V/4.0A
3.3V3.3V20V/3.0A
0.6V3.3VContinuous mode. Adjust from 3.6V to 20V in 200mV steps.
Output Current:Models with -RA suffix are limited to 3A, as Quick Charge does not support USB PD E-marked cables.

Models without a suffix can deliver full rated Quick Charge current.

Input

Input Voltage:Specified: 90-264VAC, Nameplate: 100-240VAC
          100% rated load current for 90-264VAC
            85% rated load current for 85-264VAC
          100% rated load current for 110-370VDC
Input Frequency:Specified: 47-63Hz, Nameplate: 50-60Hz
No Load Input Power:< 75mW @ 230VAC (EU CoC Tier 2 compliant)
Inrush Current:< 30A @ 115VAC, < 60A @ 230VAC (cold start)
Efficiency:DoE Efficiency Level VI and CoC Tier 2 compliant (tested according to DoE 10 CFR Part 430, Subpart B, Appendix Z)

Output

Turn-on Delay:< 1 second (full load, 115VAC)
Output Regulation± 4% max. (measured at the end of output cord)
Line Regulation:± 0.5% typ. (measured at the end of output cord)
Ripple:100mV max. (using a 47µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector)
Transient Response:5% max. deviation, 1ms max. recovery time (with 40 to 70% load step),
Hold-up Time:8ms typ. (full load, nominal line voltage)
Power Indicator:Green LED

Protections

Input Protection:MOV transient suppressor, input line fusing
Over-Voltage Protection:Level 1: 110-130%, Auto-recovery, adaptive to selected PDO/QC profile
Level 2: 25V (max), Latched off, cycle AC to reset
Over-Current Protection:110-140%, Auto-recovery, adaptive to selected PDO/QC profile
Short-Circuit Protection:Auto-recovery
Over-Temperature Protection:Auto-recovery

Environmental

MTBF:1,500,000 hours @ 25°C ambient, full load (Telcordia SR-332, Issue 3)
Operating Temperature:-10°C to 40°C (full load)
-10°C to 50°C (80% load)
Storage Temperature:-30°C to 80°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Convection
RoHS:Complies with EU 2011/65/EU and China SJ/T 11363-2006

Safety

Dielectric Withstand Voltage:4000VAC or 5656VDC from input to output
Touch Current:3-conductor models: 20µA max.
2-conductor models: 65µA max.
Earth Leakage Current300µA max. NC/SFC (N/A for 2-conductor input models)
Means of Protection:2 x MOPP
Output Isolation Options:-T2/R2 suffix: Class II 2-conductor (C8/C18 inlet or interchangeable blades)
-T3/R3 suffix: Class II, with functional earth (FE) (C6/C14 inlet or interchangeable blades)
                       Class I, earth wire connected directly to output negative (C6/C14 inlet or interchangeable blades)
Note 3:Review output isolation options with our article:  PSU Isolation and Identify

EMC

Applicable Standards:Medical: EN 60601-1-2 (4e)
Emissions: EN55032, EN61000-6-3, EN61000-6-4
Immunity: EN55024, EN61000-6-1 (4e), EN61000-6-2 (4e)
Conducted Emissions:Class B, FCC Part 15, Class B (with resistive load)
Radiated Emissions:Class B, FCC Part 15, Class B (with resistive load)
Harmonic Current Voltage Distortion:EN61000-3-2, Class A
Voltage Fluctuations/Flicker:EN61000-3-3
Electrostatic Discharge (ESD) Immunity:EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A
Radiated RF Immunity:EN61000-4-3, 10V/m @ 80-1000MHz, 3V/m @ 1-2.7GHz, 80% 1KHz AM, Criterion A
EFT/Burst Immunity:EN61000-4-4, 2KV/100KHz., Criterion A; 4KV/100KHz, Criterion B
Line Surge Immunity:EN61000-4-5, 2KV differential, 2KV common-mode, Criterion A; 4KV common-mode, Criterion B
Conducted RF Immunity:EN61000-4-6, 3VRMS, 80% 1KHz AM, Criterion A
Power Frequency Magnetic Field Immunity:EN61000-4-8, 30A/m, Criterion A
Voltage Dip Immunity:EN61000-4-11, Criterion B

Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Desktop T2/T3: C6, C8, C14, or C18 IEC inlet
Hybrid (desktop or wall plug-in): Class I or Class II input

No suffix: Captive 1.5m shielded USB Type-C cable
-RA suffix: Female USB Type-C connector integrated into housing
Markings:Adhesive backed label or laser engraving

Prevention of Unauthorized Use

USB Power Delivery:In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk to system safety or performance.

The power adapter's identity may be checked and validated prior to PD contract negotiation by use of USB PD Vendor Defined Messages (VDMs). The power adapter will respond to a USB PD “Discover Identity” VDM with 0x4754 in the “ProductID” field.

Additionally, non-standard 5.8V and 15.1V PDOs are included. Host systems may be designed to reject a power adapter which does not contain one of these PDOs.
Note 4:These measures do not guarantee a secure implementation, and are only suggested as a method of risk mitigation.
Note 5:Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Special Options

Non-standard - Contact GlobTek

  1. Custom housing and output cord colors
  2. Custom fixed output cord length, for applicable models (1m, 2m, 3m lengths,etc.)
  3. Custom markings and marking methods
  4. Custom USB PD PDOs: Output voltages selectable between 5V and 20V, in 100mV increments
  5. USB Micro-B connector for Quick Charge™-only applications
  6. Quick Charge™ 4.0/4.0+ support

†  15.1V PDO is standard on units with date codes after Sept-10-2019.
†† VDM functionality is standard on units with date codes after Sept-10-2019.

Derating CurveUser-added image
Qty (ea.)/Carton20
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box Color
Master Carton Size (mm)427 x 405 x 158
Gross Weight (kg)15.6
Label Width (mm)null
Label Height (mm)null
Input Configuration
DescriptionIEC 60320/C8 AC Inlet connectorBlade Insertion Instructions
R-Blade Style Instruction Video

User-added image
Mates with IEC 60320/C8 Plug

This series of Interchangeable Blade products may be used with Proprietary Interchangeable Blades as described below or with standard international power cords.

Optional INPUT BLADES: R-Socket: below are available blades configurations which are "not included" (unless stated above); may be purchased separately, packaged with power supply, or as a separate "R-KIT" if specified

#Part NumberMain Country/RegionPlugIECEE Type
1R-NA-2(R) North America, JapanNema 1-15PType A
2R-SAA-2(R) Australia/New Zealand AS/NZ 3112 Type I
3R-UK-2(R) United Kingdom/IrelandUK, Hong Kong, Singapore, Gulf StatesType G
4R-EU-2(R)EuropeCEE 7/16Type C
5R-CN-2(R)ChinaGB 2099 Type A
6461-03030003(R)N/AR-DI(R) Desktop Insert for use with a cordN/A
7R-KIT-2(R)prepackaged kit1,2,3,4 aboveN/A
8R-KIT-2-INTL(R)prepackaged kit2,3,4 aboveN/A

User-added image

Standard Cordsets
Below are standard cordsets which are "not included" (unless stated above); these may be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.

Standard International IEC 320/C7 Cordsets

Part NumberCountryPlugConnectorLength (mm)Length (feet)
2094112M703(R)Argentina (Type I)IRAM 2063IEC 320/C720007
5014112M703A(R)Australian (Type I)AS 3112IEC 320/C720007
207B4111M8703(R)Brazil (Type N)NBR14136IEC 320/C718006
4533501M8703(R)China (Type A)GB 2099.1IEC 320/C718306
2074112M703A(R)European (Type C)CEE 7/16IEC 320/C720007
2084111M8703(R)South Africa (Type M)BS 546IEC 320/C718006
2084111M8703B(R)India (Type D)ISI:1293IEC 320/C718006
2714111M8703A(R)India (Type C)ISI:1293IEC 320/C718006
451J3401M8703(R)Japan (Type A)JIS 8303IEC 320/C718306
2044112M703A(R)Korea (Type C)KS C8305IEC 320/C720007
4511116F703A(R)N. American (Type A)NEMA 1-15PIEC 320/C718306
4033401M8703A(R)Taiwan (Type A)CNS690IEC 320/C718306
6104112M703A(R)UK, Hong Kong, Singapore, Gulf States (Type G)BS1363IEC 320/C720007
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)

Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)USBC Type (USB Type C)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
Medical 4th Ed.EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
Australian EMC
User-added image  Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration

User-added image  		CE Certification
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
User-added imagenull
 User-added image
 		Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
User-added imageJAPAN TUV R-PSE, Cert. No. JD50473430 , to J62368-1(H30) , J55032(H29),J3000(H25)[DC15? 30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
No Logo ApplicableCB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
No Logo CB Report IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 (GTM96605-G2-XX)

No Logo Applicable

CB for IEC 62368-1:2014 (Second Edition)
User-added image
 		AAMI ES60601-1 Issued: 2012/08/20 Medical Electrical Equipment - Part 1: CAN/CSA-C22.2 No.60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1: IEC 60601-1-11 Issued: 2015/01/20 Ed. 2 Medical Elec. Equip.- Part 1-11:
User-added imageInformation Technology Equipment Safety Part 1: General Requirements (UL 60950-1 Issued: 2007/03/27, Ed: 2 Rev: 2014/10/14) Information Technology Equipment Safety Part 1: General Requirements (CSA C22.2 No. 60950-1 Issued: 2007/03/27 Ed: 2 (R2012) Amd.
User-added imageAudio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2]Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
Conforms to AAMI STD. ES60601-1
Certified to CAN/CSA STD.C22.2 NO.60601-1		Conforms to AAMI STD. ES60601-1,IEC 60601-1-11 Certified to CAN/CSA STD.C22.2 NO.60601-1
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
User-added imageS-Mark Certificate EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+A2:2013 (http://www.intertek.com/marks/s/)
User-added image
仅适用于海拔5000米以下地区使用
 		CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008
User-added imageAustralia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
User-added imageUKCA Certification
Conforms to UL STD. 62368-1
Certified to CSA STD C22.2 NO.62368-1		Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
LPSLimited Power Source 60950
User-added image
 		Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/

Request Info
