GTM96605-G2-T2 |
---|
| Communication formats supported: USB Power Delivery (PD) 2.0/3.0, Quick Charge™ 2.0/3.0, Quick Charge™ 4.0/4.0+ with up to 7 voltages and VDM options available. Fully globally certified for Medical 60601-1, ICT 62368 |
---|
Information |
---|
Model Number | GTM96605-G2-T2 |
---|
Agency Documents | http://www.globtek.info/certs/GTM96605-GEN2/ |
---|
CE EC-Declaration for Medical | https://cs.globtek.info/ec_declaration?id=a0O0c00000PGI8DEAX |
---|
CE EC-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ec_declaration?id=a0O0c00000PGI8DEAX |
---|
CE EC-Declaration for Household | Contact GlobTek for more information |
---|
UKCA-Declaration for Medical | https://cs.globtek.info/ukca_declaration?id=a0O0c00000PGI8DEAX |
---|
UKCA-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ukca_declaration?id=a0O0c00000PGI8DEAX |
---|
UKCA-Declaration for Household | Contact GlobTek for more information |
---|
Morocco SDoC Declaration | https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000PGI8DEAX |
---|
RoHS/RoHS3 Declaration | https://www.globtek.com/pdf/rohs_cert/a0O0c00000PGI8DEAX |
---|
Prop 65 Statement | https://www.globtek.com/r2/PH7CNf |
---|
REACH Declaration | https://www.globtek.com/r2/eM2co8 |
---|
Conflict Minerals Declaration | https://www.globtek.com/r2/vZY8R5 |
---|
Model Parameters |
---|
Type | Desktop/External |
---|
Technology | USB Adaptive Power Supply AC Adaptor |
---|
Category | USB Power Delivery (PD) Source, ICT/ITE/Medical |
---|
Input Voltage Range (V) | 100-240V~, 50-60Hz |
---|
Max Input Current (A) | 1.5A |
---|
Max Output Power Rating (W) | 60 |
---|
Output Voltage Range (V) | 3.6-20 |
---|
Efficiency | USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 |
---|
Ingress Protection | |
---|
Size (mm) | |
---|

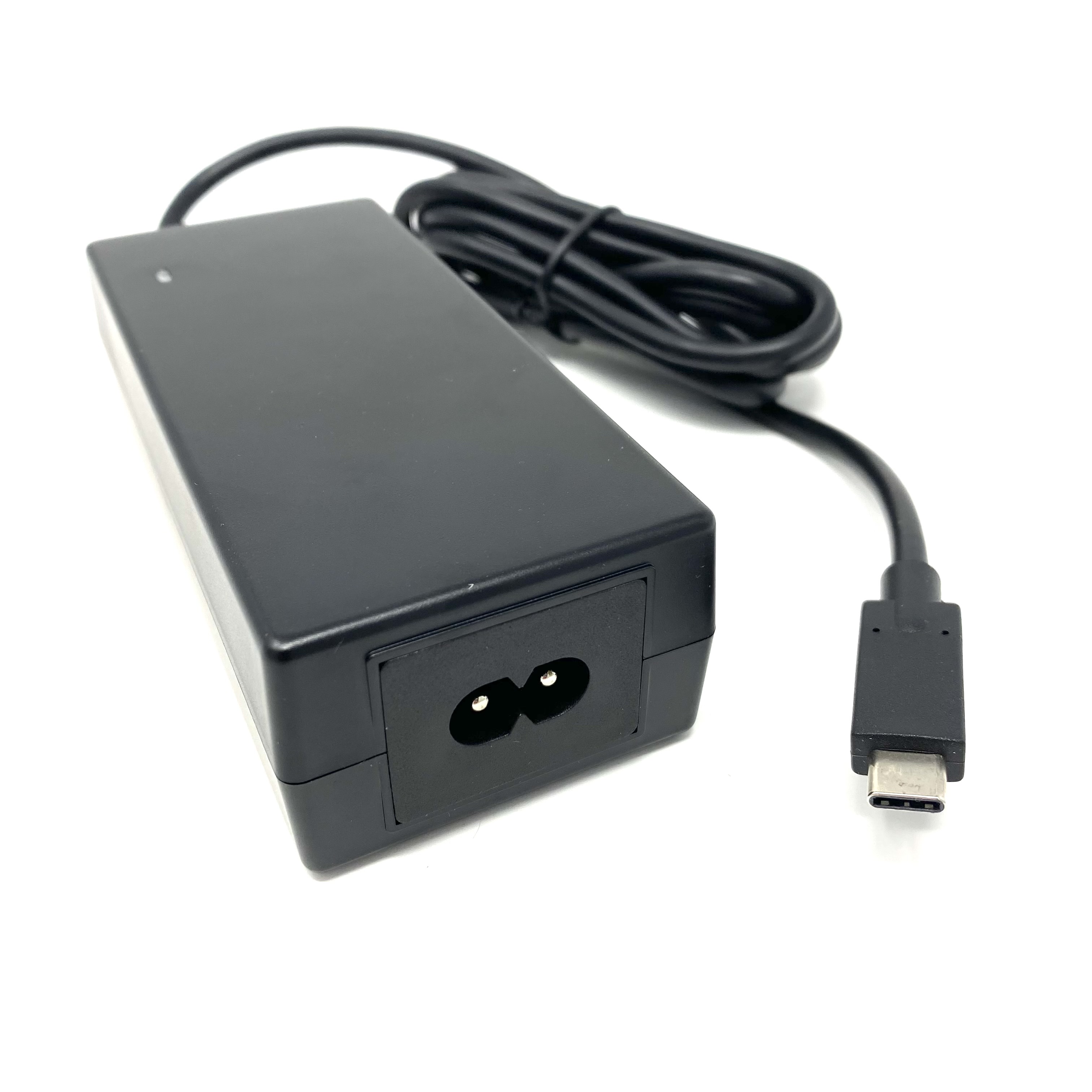

Enclosure | Drawing above is model with output cord

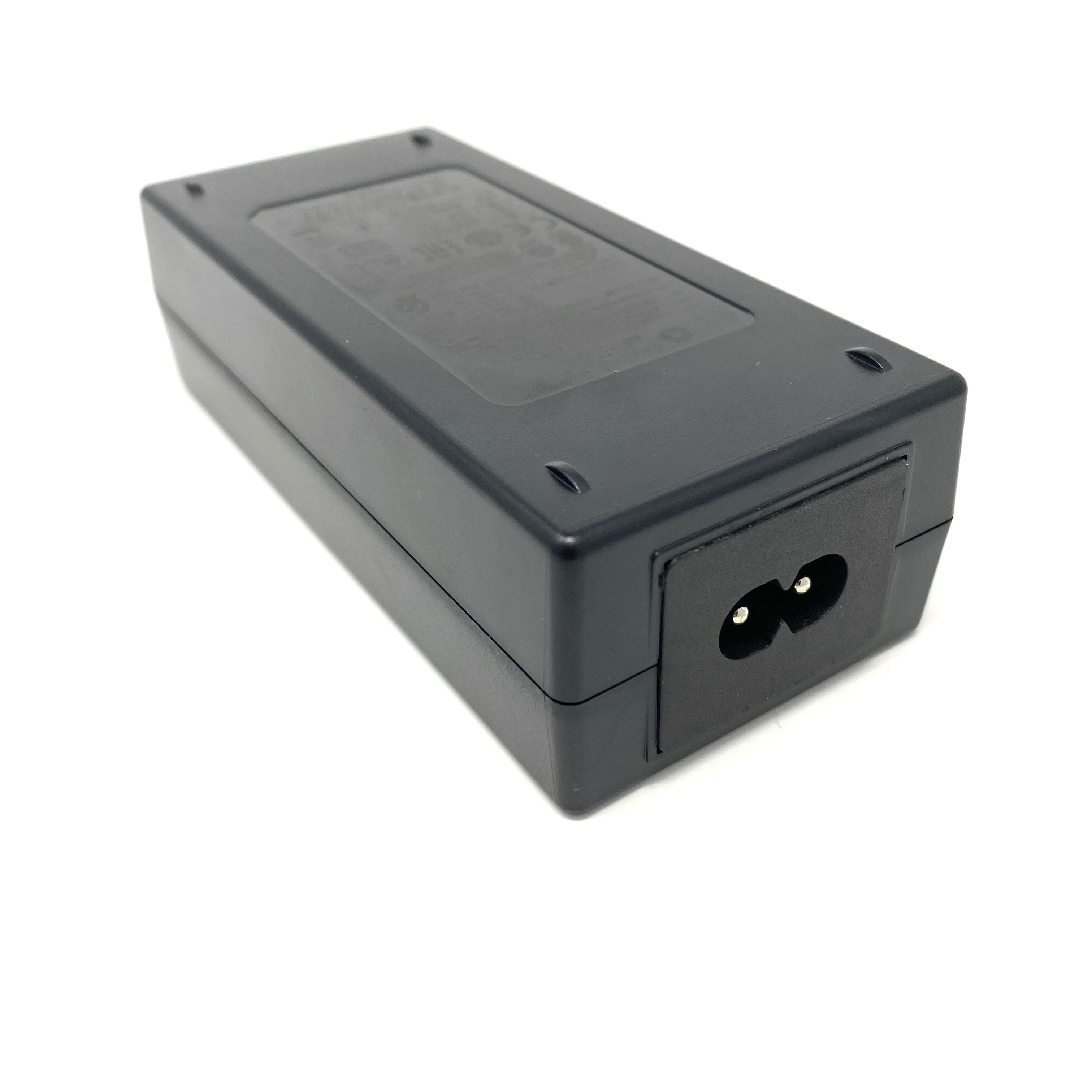

Drawing above is model with integrated USBC connector (suffix -RA) |
---|
3D File Download | https://www.globtek.com/dl/GTM96605-T2.igs |
---|
Rating Table |
---|
Model Number (Final ordering #/Part No to be defined) | Output Number | Voltage | Amps (Convection) | Amps (Forced Air) | Watts (Convection) | Watts (Forced Air) | RFQ |
---|
* (Final ordering #/Part No to be defined) |
Specifications |
---|
USB Power Delivery CapabilitiesProtocols supported: | USB Power Delivery (PD) 2.0/3.0 + PPS |
---|
Default Output State: | 5V/2.0A |
---|
Advertised Power Data Objects (PDOs): | Standard option: 5V, 5.8V, 9V, 12V, 15V, 15.1V†, 20V PPS option: 5V, 9V, 15V, 20V, PPS (3.6-11V), PPS (3.6-16V), PPS (3.6-20V) |
---|
Output Current: | Refer to the 'Rating Table' for output current capability for each USB PD PDO.
Models with -RA suffix have a female USB Type-C connector for use with a detachable USB Type-C cable. If no E-marked cable is detected, the maximum current is limited to 3A.
Models without a suffix have a captive 5A rated cable and can always deliver the full current per the 'Rating Table'. |
---|
Note 1: | Custom fixed PDOs available upon request. PDO1 must be 5V. PDO2 through PDO7 may be set to any custom voltage from 3.6V to 20V, with a step size of 100mV. |
---|
Note 2: | In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk. The power adapter's identity may be checked and validated prior to PD contract negotiation by using USB PD Vendor Defined Messages (VDMs). Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information. |
---|
Qualcomm Quick Charge™ CapabilitiesProtocols supported: | Quick Charge™ 2.0/3.0 |
---|
Default Output State: | 5V/2.0A |
---|
HVDCP Class B Profiles: | D+ | D- | Output | 0.6V | GND | 5.0V/4.6A | 3.3V | 0.6V | 9.0V/4.4A | 0.6V | 0.6V | 12V/4.0A | 3.3V | 3.3V | 20V/3.0A | 0.6V | 3.3V | Continuous mode. Adjust from 3.6V to 20V in 200mV steps. |
|
---|
Output Current: | Models with -RA suffix are limited to 3A, as Quick Charge does not support USB PD E-marked cables.
Models without a suffix can deliver full rated Quick Charge current. |
---|
InputInput Voltage: | Specified: 90-264VAC, Nameplate: 100-240VAC 100% rated load current for 90-264VAC 85% rated load current for 85-264VAC 100% rated load current for 110-370VDC |
---|
Input Frequency: | Specified: 47-63Hz, Nameplate: 50-60Hz |
---|
No Load Input Power: | < 75mW @ 230VAC (EU CoC Tier 2 compliant) |
---|
Inrush Current: | < 30A @ 115VAC, < 60A @ 230VAC (cold start) |
---|
Efficiency: | DoE Efficiency Level VI and CoC Tier 2 compliant (tested according to DoE 10 CFR Part 430, Subpart B, Appendix Z) |
---|
OutputTurn-on Delay: | < 1 second (full load, 115VAC) |
---|
Output Regulation | ± 4% max. (measured at the end of output cord) |
---|
Line Regulation: | ± 0.5% typ. (measured at the end of output cord) |
---|
Ripple: | 100mV max. (using a 47µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector) |
---|
Transient Response: | 5% max. deviation, 1ms max. recovery time (with 40 to 70% load step), |
---|
Hold-up Time: | 8ms typ. (full load, nominal line voltage) |
---|
Power Indicator: | Green LED |
---|
ProtectionsInput Protection: | MOV transient suppressor, input line fusing |
---|
Over-Voltage Protection: | Level 1: 110-130%, Auto-recovery, adaptive to selected PDO/QC profile Level 2: 25V (max), Latched off, cycle AC to reset |
---|
Over-Current Protection: | 110-140%, Auto-recovery, adaptive to selected PDO/QC profile |
---|
Short-Circuit Protection: | Auto-recovery |
---|
Over-Temperature Protection: | Auto-recovery |
---|
EnvironmentalMTBF: | 1,500,000 hours @ 25°C ambient, full load (Telcordia SR-332, Issue 3) |
---|
Operating Temperature: | -10°C to 40°C (full load) -10°C to 50°C (80% load) |
---|
Storage Temperature: | -30°C to 80°C |
---|
Humidity: | 0% to 95% relative humidity, non-condensing |
---|
Altitude | 5000m |
---|
Cooling: | Convection |
---|
RoHS: | Complies with EU 2011/65/EU and China SJ/T 11363-2006 |
---|
SafetyDielectric Withstand Voltage: | 4000VAC or 5656VDC from input to output |
---|
Touch Current: | 3-conductor models: 20µA max. 2-conductor models: 65µA max. |
---|
Earth Leakage Current | 300µA max. NC/SFC (N/A for 2-conductor input models) |
---|
Means of Protection: | 2 x MOPP |
---|
Output Isolation Options: | -T2/R2 suffix: Class II 2-conductor (C8/C18 inlet or interchangeable blades) -T3/R3 suffix: Class II, with functional earth (FE) (C6/C14 inlet or interchangeable blades) Class I, earth wire connected directly to output negative (C6/C14 inlet or interchangeable blades) |
---|
Note 3: | Review output isolation options with our article: PSU Isolation and Identify |
---|
EMCApplicable Standards: | Medical: EN 60601-1-2 (4e) Emissions: EN55032, EN61000-6-3, EN61000-6-4 Immunity: EN55024, EN61000-6-1 (4e), EN61000-6-2 (4e) |
---|
Conducted Emissions: | Class B, FCC Part 15, Class B (with resistive load) |
---|
Radiated Emissions: | Class B, FCC Part 15, Class B (with resistive load) |
---|
Harmonic Current Voltage Distortion: | EN61000-3-2, Class A |
---|
Voltage Fluctuations/Flicker: | EN61000-3-3 |
---|
Electrostatic Discharge (ESD) Immunity: | EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A |
---|
Radiated RF Immunity: | EN61000-4-3, 10V/m @ 80-1000MHz, 3V/m @ 1-2.7GHz, 80% 1KHz AM, Criterion A |
---|
EFT/Burst Immunity: | EN61000-4-4, 2KV/100KHz., Criterion A; 4KV/100KHz, Criterion B |
---|
Line Surge Immunity: | EN61000-4-5, 2KV differential, 2KV common-mode, Criterion A; 4KV common-mode, Criterion B |
---|
Conducted RF Immunity: | EN61000-4-6, 3VRMS, 80% 1KHz AM, Criterion A |
---|
Power Frequency Magnetic Field Immunity: | EN61000-4-8, 30A/m, Criterion A |
---|
Voltage Dip Immunity: | EN61000-4-11, Criterion B |
---|
EnclosureHousing: | High impact plastic, 94V0 polycarbonate, non-vented Desktop T2/T3: C6, C8, C14, or C18 IEC inlet Hybrid (desktop or wall plug-in): Class I or Class II input

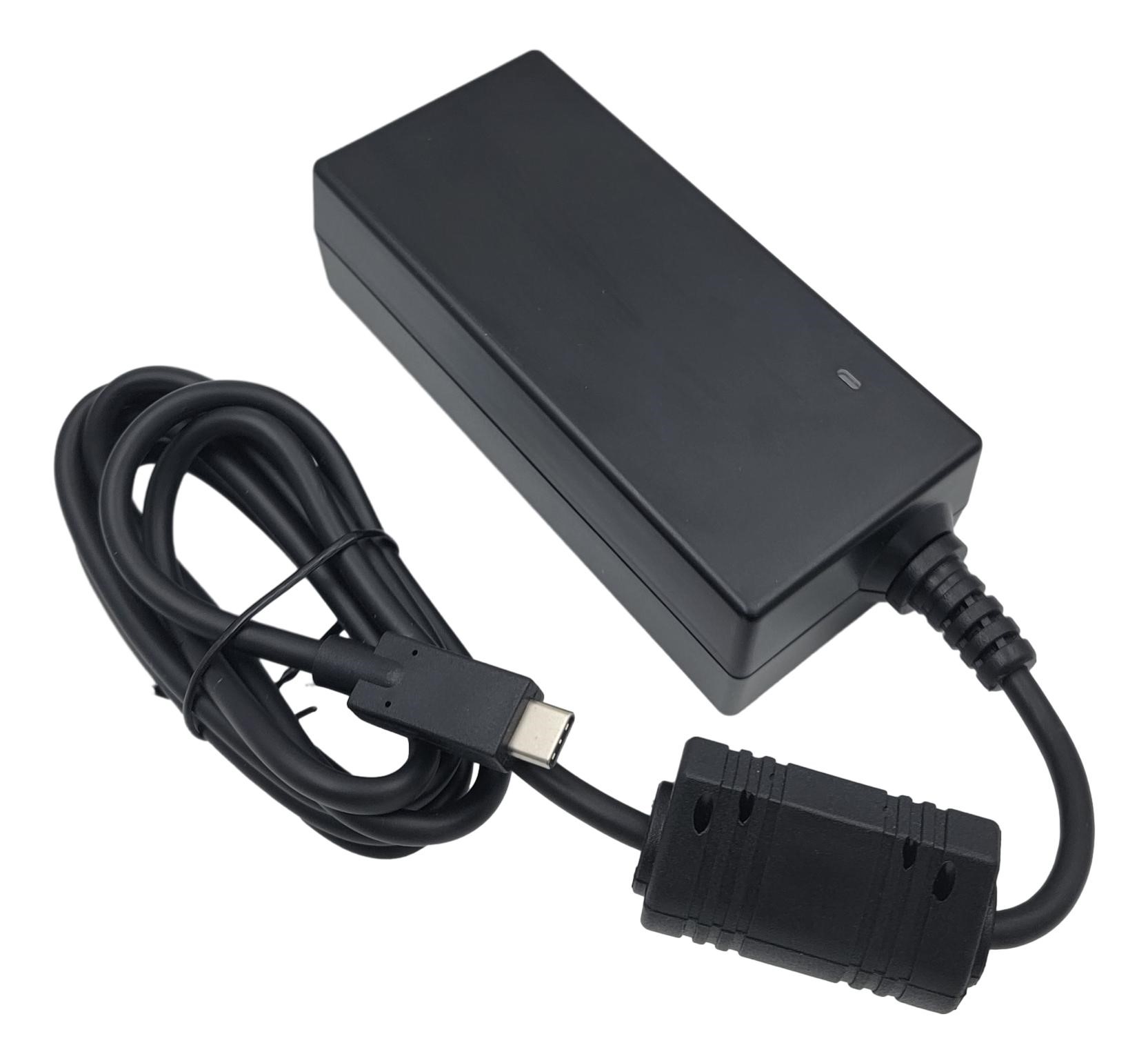

No suffix: Captive 1.5m shielded USB Type-C cable -RA suffix: Female USB Type-C connector integrated into housing |
---|
Markings: | Adhesive backed label or laser engraving |
---|
Prevention of Unauthorized UseUSB Power Delivery: | In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk to system safety or performance.
The power adapter's identity may be checked and validated prior to PD contract negotiation by use of USB PD Vendor Defined Messages (VDMs). The power adapter will respond to a USB PD “Discover Identity” VDM with 0x4754 in the “ProductID” field.
Additionally, non-standard 5.8V and 15.1V PDOs are included. Host systems may be designed to reject a power adapter which does not contain one of these PDOs. |
---|
Note 4: | These measures do not guarantee a secure implementation, and are only suggested as a method of risk mitigation. |
---|
Note 5: | Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information. |
---|
Special OptionsNon-standard - Contact GlobTek - Custom housing and output cord colors
- Custom fixed output cord length, for applicable models (1m, 2m, 3m lengths,etc.)
- Custom markings and marking methods
- Custom USB PD PDOs: Output voltages selectable between 5V and 20V, in 100mV increments
- USB Micro-B connector for Quick Charge™-only applications
- Quick Charge™ 4.0/4.0+ support
† 15.1V PDO is standard on units with date codes after Sept-10-2019. †† VDM functionality is standard on units with date codes after Sept-10-2019. |
Derating Curve | |
---|
Qty (ea.)/Carton | 75 |
---|
Individual Box/Gift Box Size (mm) | Egg Crate |
---|
Individual Box/Gift Box Color | |
---|
Master Carton Size (mm) | 455 x 430 x 320 |
---|
Gross Weight (kg) | 15.6 |
---|
Label Width (mm) | null |
---|
Label Height (mm) | null |
---|
Input Configuration |
---|
Description | IEC 60320/C8 AC Inlet connector, Class II, Non-Earth Ground (aka "Figure-8") Mates with IEC 60320/C7 Plug
Below are standard cordsets which are "not included" (unless stated above); these may be purchased separately or packaged with the power supply. Please contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.
Standard International IEC 320/C7 Cordsets |
|
---|
Output Configuration |
---|
Common output connector options: Click to add to your request.
|
|
|
|
|
| L Type (Coaxial 5.5x2.5mm plug) | C Type (Coaxial 5.5x2.1mm plug) | K Type (Coaxial 3.5x1.3mm plug) | LL Type (5.5x2.5mm Locking 760k type) | CL Type (5.5x2.1mm Locking S761k type) | Magnetic Connector |
|
|
|
|
|
| YL3 Type (KPPX-3P) | YL4 Type (KPPX-4P) | EJ1/2/3/4/5 (EIAJ RC-5320A type connectors) | MSB Type (Micro USB) | USBC Type (USB Type C) | Inquire for custom design |
Comprehensive list of GlobTek output cordset options Contact GlobTek for your specific requirements or custom solutions. |
Approvals |
---|
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice. Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation. |
Logo | Description |
---|
Medical 4th Ed. | EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info) | | Australian EMC | | CE Certification | | JAPAN TUV R-PSE, Cert. No. JD50473430 , to J62368-1(H30) , J55032(H29),J3000(H25)[DC15? 30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb | | WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case | | Japan: Voluntary Control Council for Interference (VCCI) | RoHS | Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf | | CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf | | Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe) | | null | | Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration | | Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf) | No Logo Applicable | CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max) | No Logo | CB Report IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 (GTM96605-G2-XX) | No Logo Applicable | CB for IEC 62368-1:2014 (Second Edition) | 仅适用于海拔5000米以下地区使用 | CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 | | Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2]Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2] | | Information Technology Equipment Safety Part 1: General Requirements (UL 60950-1 Issued: 2007/03/27, Ed: 2 Rev: 2014/10/14) Information Technology Equipment Safety Part 1: General Requirements (CSA C22.2 No. 60950-1 Issued: 2007/03/27 Ed: 2 (R2012) Amd. | | AAMI ES60601-1 Issued: 2012/08/20 Medical Electrical Equipment - Part 1: CAN/CSA-C22.2 No.60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1: IEC 60601-1-11 Issued: 2015/01/20 Ed. 2 Medical Elec. Equip.- Part 1-11: | Conforms to AAMI STD. ES60601-1 Certified to CAN/CSA STD.C22.2 NO.60601-1 | Conforms to AAMI STD. ES60601-1,IEC 60601-1-11 Certified to CAN/CSA STD.C22.2 NO.60601-1 | | Indoor Use Only - Mark is on the label or Molded in the case | | Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm | | S-Mark Certificate EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+A2:2013 (http://www.intertek.com/marks/s/) | | UKCA Certification | Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1 | Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1 | LPS | Limited Power Source 60950 | | Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/ |
|
