GTM96605-G2-T3
Communication formats supported: USB Power Delivery (PD) 2.0/3.0, Quick Chargeā„¢ 2.0/3.0, Quick Chargeā„¢ 4.0/4.0+ with up to 7 voltages and VDM options available. Fully globally certified for Medical 60601-1, ICT 62368Communication formats supported: USB Power Delivery (PD) 2.0/3.0, Quick Chargeā„¢ 2.0/3.0, Quick Chargeā„¢ 4.0/4.0+ with up to 7 voltages and VDM options available. Fully globally certified for Medical 60601-1, ICT 62368
Information
Model NumberGTM96605-G2-T3
Agency Documentshttp://www.globtek.info/certs/GTM96605-GEN2/
CE EC-Declaration for Medicalhttps://cs.globtek.info/ec_declaration?id=a0O0c00000PILwlEAH
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O0c00000PILwlEAH
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for Medicalhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000PILwlEAH
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000PILwlEAH
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000PILwlEAH
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O0c00000PILwlEAH
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeDesktop/External
TechnologyUSB Adaptive Power Supply AC Adaptor
CategoryUSB Power Delivery (PD) Source, ICT/ITE/Medical
Input Voltage Range (V)100-240V~, 50-60Hz
Max Input Current (A)1.5A
Max Output Power Rating (W)60
Output Voltage Range (V)3.6-20
EfficiencyUSA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782
Ingress Protection
Size (mm)
EnclosureUser-added image

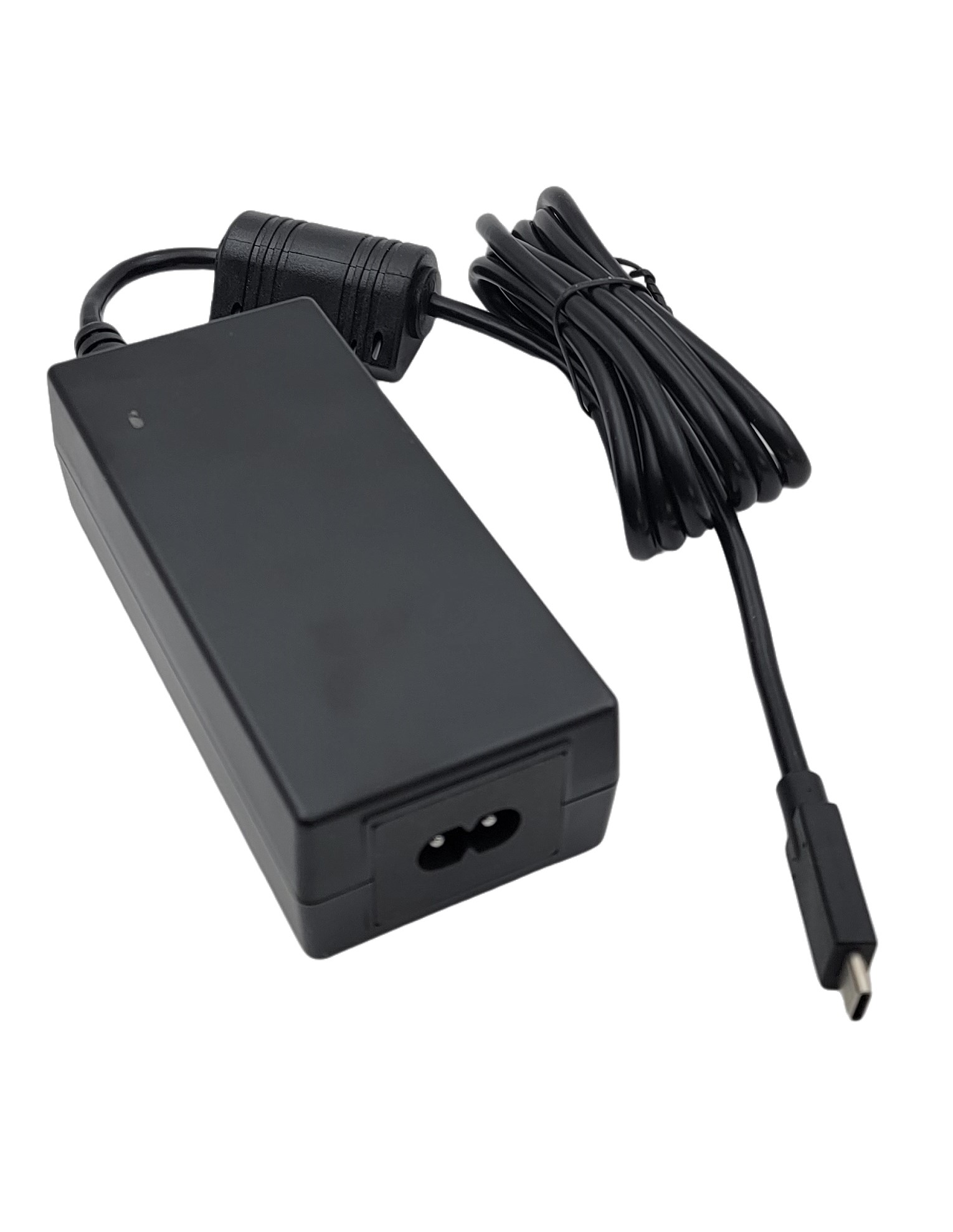

Drawing above is model with output cord
User-added image

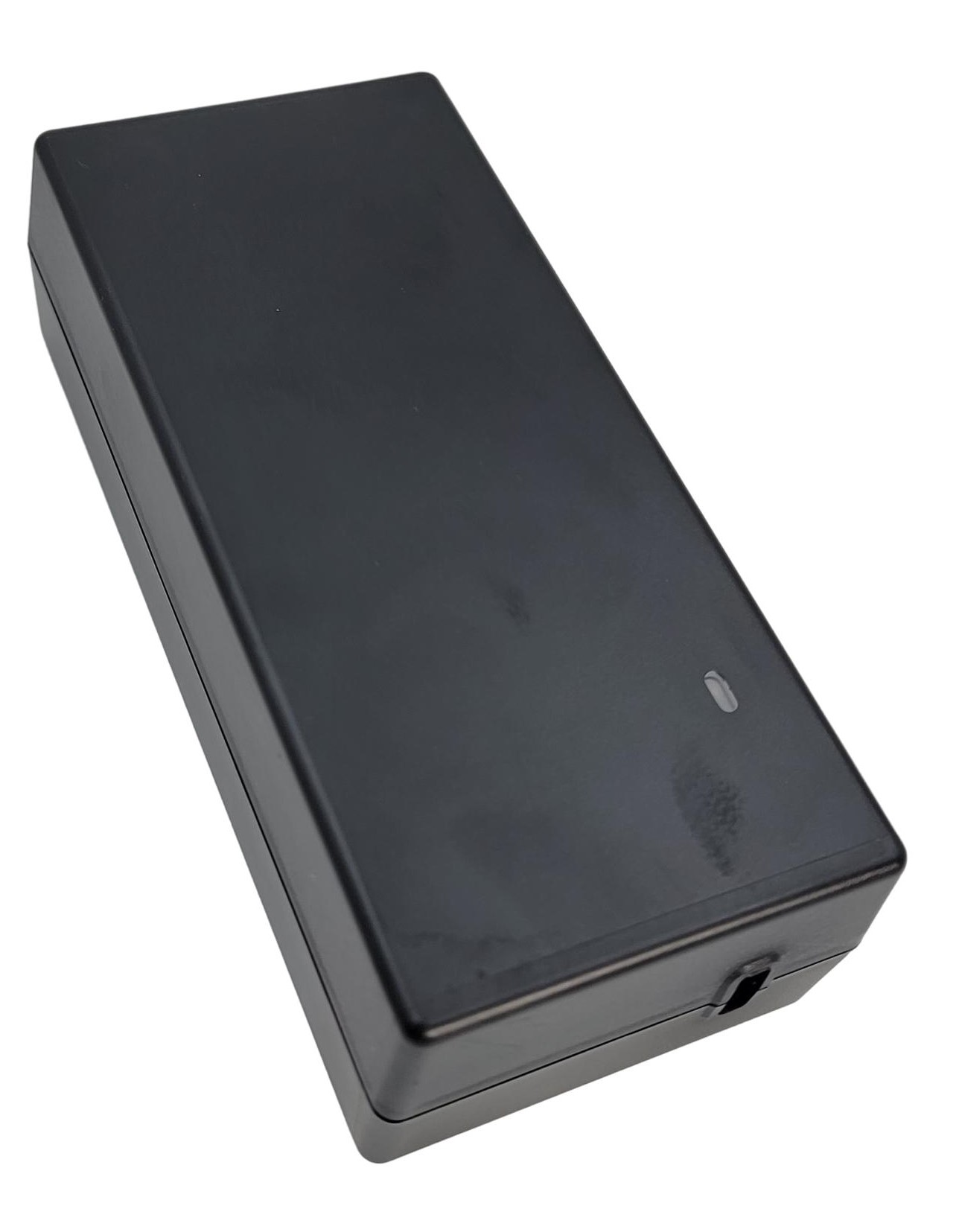

Drawing above is model with integrated USBC connectorĀ Ā (suffix -RA)
3D File Downloadhttps://www.globtek.com/dl/GTM96605-T3.igs
Rating Table
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GTM96605-G2A1-T3*
GTM96605-G2A1-T3(PPS)*
GTM96605-G2A1-T3-RA*
GTM96605-G2A1-T3-RA(PPS)*
* (Final ordering #/Part No to be defined)
Specifications

USB Power Delivery Capabilities

Protocols supported:USB Power Delivery (PD) 2.0/3.0 + PPS
Default Output State:5V/2.0A
Advertised Power Data Objects (PDOs):Standard option: 5V, 5.8V, 9V, 12V, 15V, 15.1Vā€ , 20V
PPS option:Ā Ā Ā Ā  Ā  Ā  5V, 9V, 15V, 20V, PPS (3.6-11V), PPS (3.6-16V), PPS (3.6-20V)
Output Current:Refer to the 'Rating Table' for output current capability for each USB PD PDO.

Models with -RA suffix have a female USB Type-C connector for use with a detachable USB Type-C cable. If no E-marked cable is detected, the maximum current is limited to 3A.

Models without a suffix have a captive 5A rated cable and can always deliver the full current per the 'Rating Table'.
Note 1:Custom fixed PDOs available upon request. PDO1 must be 5V. PDO2 through PDO7 may be set to any custom voltage from 3.6V to 20V, with a step size of 100mV.
Note 2:In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk. The power adapter's identity may be checked and validated prior to PD contract negotiation by using USB PD Vendor Defined Messages (VDMs). Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Qualcomm Quick Chargeā„¢ Capabilities

Protocols supported:Quick Chargeā„¢ 2.0/3.0
Default Output State:5V/2.0A
HVDCP Class B Profiles:
D+D-Output
0.6VGND5.0V/4.6A
3.3V0.6V9.0V/4.4A
0.6V0.6V12V/4.0A
3.3V3.3V20V/3.0A
0.6V3.3VContinuous mode. Adjust from 3.6V to 20V in 200mV steps.
Output Current:Models with -RA suffix are limited to 3A, as Quick Charge does not support USB PD E-marked cables.

Models without a suffix can deliver full rated Quick Charge current.

Input

Input Voltage:Specified: 90-264VAC, Nameplate: 100-240VAC
Ā Ā Ā Ā Ā Ā Ā Ā Ā  100% rated load current for 90-264VAC
Ā Ā Ā  Ā  Ā Ā  Ā Ā  85% rated load current for 85-264VAC
Ā Ā Ā Ā Ā Ā  Ā Ā  100% rated load current for 110-370VDC
Input Frequency:Specified: 47-63Hz, Nameplate: 50-60Hz
No Load Input Power:< 75mW @ 230VAC (EU CoC Tier 2 compliant)
Inrush Current:< 30A @ 115VAC, < 60A @ 230VAC (cold start)
Efficiency:DoE Efficiency Level VI and CoC Tier 2 compliant (tested according to DoE 10 CFR Part 430, Subpart B, Appendix Z)

Output

Turn-on Delay:< 1 second (full load, 115VAC)
Output RegulationĀ± 4% max. (measured at the end of output cord)
Line Regulation:Ā± 0.5% typ. (measured at the end of output cord)
Ripple:100mV max. (using a 47ĀµF low-ESR electrolytic cap + 0.1ĀµF ceramic cap, measured @ 20MHz BW, at the output connector)
Transient Response:5% max. deviation, 1ms max. recovery time (with 40 to 70% load step),
Hold-up Time:8ms typ. (full load, nominal line voltage)
Power Indicator:Green LED

Protections

Input Protection:MOV transient suppressor, input line fusing
Over-Voltage Protection:Level 1: 110-130%, Auto-recovery, adaptive to selected PDO/QC profile
Level 2: 25V (max), Latched off, cycle AC to reset
Over-Current Protection:110-140%, Auto-recovery, adaptive to selected PDO/QC profile
Short-Circuit Protection:Auto-recovery
Over-Temperature Protection:Auto-recovery

Environmental

MTBF:1,500,000 hours @ 25Ā°C ambient, full load (Telcordia SR-332, Issue 3)
Operating Temperature:-10Ā°C to 40Ā°C (full load)
-10Ā°C to 50Ā°C (80% load)
Storage Temperature:-30Ā°C to 80Ā°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Convection
RoHS:Complies with EU 2011/65/EU and China SJ/T 11363-2006

Safety

Dielectric Withstand Voltage:4000VAC or 5656VDC from input to output
Touch Current:3-conductor models: 20ĀµA max.
2-conductor models: 65ĀµA max.
Earth Leakage Current300ĀµA max. NC/SFC (N/A for 2-conductor input models)
Means of Protection:2 x MOPP
Output Isolation Options:-T2/R2 suffix: Class II 2-conductor (C8/C18 inlet or interchangeable blades)
-T3/R3 suffix: Class II, with functional earth (FE) (C6/C14 inlet or interchangeable blades)
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā  Class I, earth wire connected directly to output negative (C6/C14 inlet or interchangeable blades)
Note 3:Review output isolation options with our article:Ā  PSU Isolation and Identify

EMC

Applicable Standards:Medical: EN 60601-1-2 (4e)
Emissions: EN55032, EN61000-6-3, EN61000-6-4
Immunity: EN55024, EN61000-6-1 (4e), EN61000-6-2 (4e)
Conducted Emissions:Class B, FCC Part 15, Class B (with resistive load)
Radiated Emissions:Class B, FCC Part 15, Class B (with resistive load)
Harmonic Current Voltage Distortion:EN61000-3-2, Class A
Voltage Fluctuations/Flicker:EN61000-3-3
Electrostatic Discharge (ESD) Immunity:EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A
Radiated RF Immunity:EN61000-4-3, 10V/m @ 80-1000MHz, 3V/m @ 1-2.7GHz, 80% 1KHz AM, Criterion A
EFT/Burst Immunity:EN61000-4-4, 2KV/100KHz., Criterion A; 4KV/100KHz, Criterion B
Line Surge Immunity:EN61000-4-5, 2KV differential, 2KV common-mode, Criterion A; 4KV common-mode, Criterion B
Conducted RF Immunity:EN61000-4-6, 3VRMS, 80% 1KHz AM, Criterion A
Power Frequency Magnetic Field Immunity:EN61000-4-8, 30A/m, Criterion A
Voltage Dip Immunity:EN61000-4-11, Criterion B

Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Desktop T2/T3: C6, C8, C14, or C18 IEC inlet
Hybrid (desktop or wall plug-in): Class I or Class II input

No suffix: Captive 1.5m shielded USB Type-C cable
-RA suffix: Female USB Type-C connector integrated into housing
Markings:Adhesive backed label or laser engraving

Prevention of Unauthorized Use

USB Power Delivery:In critical applications, the use of a non-authorized USB PD power adapter may pose a substantial risk to system safety or performance.

The power adapter's identity may be checked and validated prior to PD contract negotiation by use of USB PD Vendor Defined Messages (VDMs). The power adapter will respond to a USB PD ā€œDiscover Identityā€ VDM with 0x4754 in the ā€œProductIDā€ field.

Additionally, non-standard 5.8V and 15.1V PDOs are included. Host systems may be designed to reject a power adapter which does not contain one of these PDOs.
Note 4:These measures do not guarantee a secure implementation, and are only suggested as a method of risk mitigation.
Note 5:Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Special Options

Non-standard - Contact GlobTek

  1. Custom housing and output cord colors
  2. Custom fixed output cord length, for applicable models (1m, 2m, 3m lengths,etc.)
  3. Custom markings and marking methods
  4. Custom USB PD PDOs: Output voltages selectable between 5V and 20V, in 100mV increments
  5. USB Micro-B connector for Quick Chargeā„¢-only applications
  6. Quick Chargeā„¢ 4.0/4.0+ support

ā€ Ā  15.1V PDO is standard on units with date codes after Sept-10-2019.
ā€ ā€  VDM functionality is standard on units with date codes after Sept-10-2019.

Derating CurveUser-added image
Qty (ea.)/Carton20
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box Color
Master Carton Size (mm)427 x 405 x 158
Gross Weight (kg)15.6
Label Width (mm)
Label Height (mm)
Input Configuration

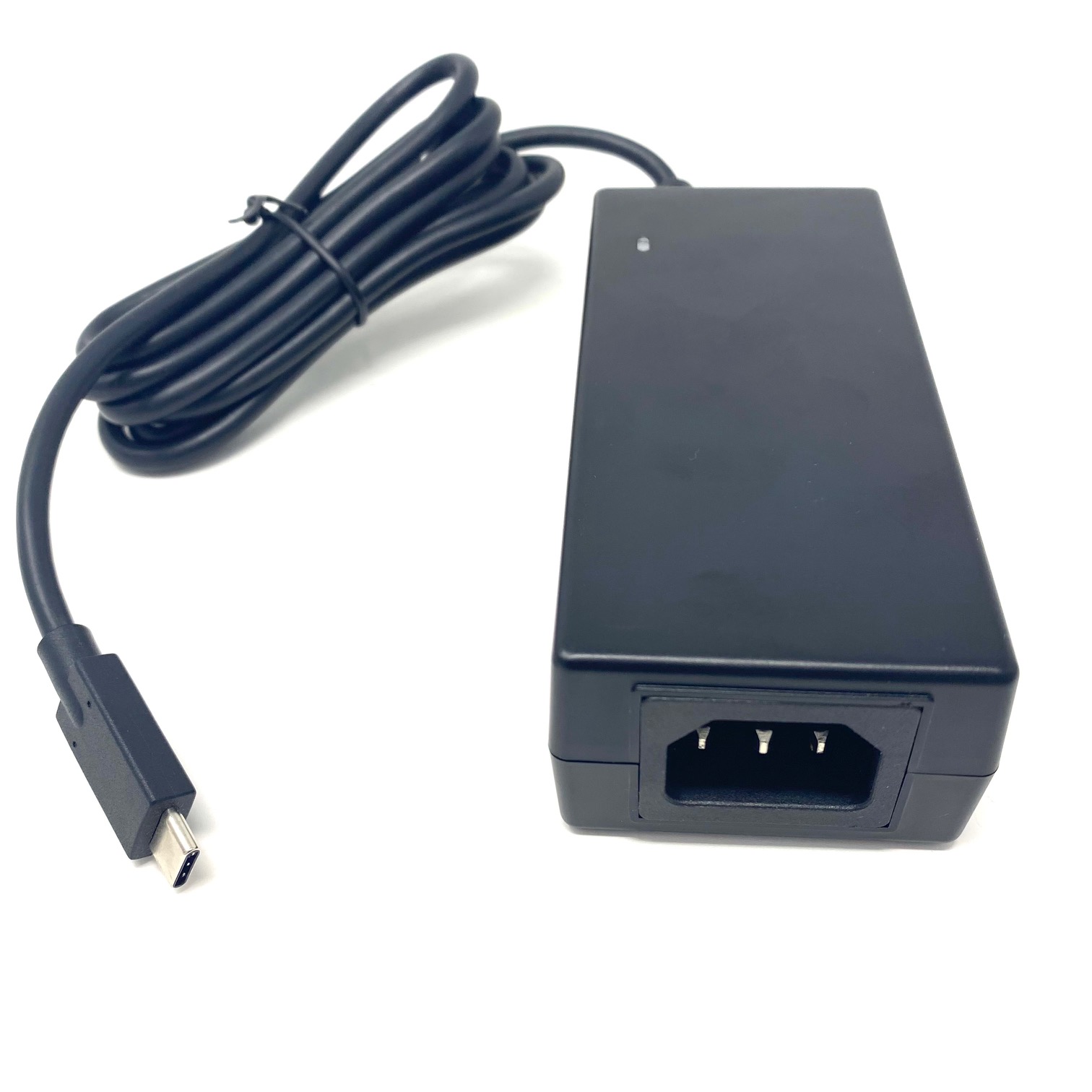

DescriptionIEC 60320/C14 AC Inlet Connector, Class I, Earth GroundUser-added image
Mates with IEC 60320/C13 Plug

Optional Locking IEC60320 Receptable and cord option available on some models by request.:
User-added image

Standard International IEC 320/C13 Cordsets

Below are standard cordsets which are "not included" (unless stated above); theseĀ can be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.

Stock Power Supply Cords

Part Number/ LinkCountryPlugTerminationLength (mm)(Ft)
3021457F701(R)N. American (Type B)NEMA 5-15PIEC 320/C1321507
1191068F0701(R)N. American (Type B)NEMA 5-15P HospitalIEC 320/C1324598
2194272M5701-T(R)Argentina (Type I)IRAM 2073IEC 320/C1325008
5502022M5701A(R)Australian (Type I)AS3112 / 3 PRONGIEC 320/C1325008
204B4272M5701(R)Brazil (Type N)BRAZILIEC 320/C1325008
6023602M5701(R)China (Type I)CCC GR2099IEC 320/C1325008
G8014272M5701(R)Danish (Type K)AFSNIT SECTION 107-2-D1IEC 320/C1325008
23144272M5701-T(R)Europe (Type E)CEE 7/7IEC 320/C1325008
23134272M5701EUKR(R)Europe/Korea Combo (Type E)CEE 7/7 / KSC8305IEC 320/C1325008
205IN4272M5701(R)India (Type D)India IS 1293 (also known as IA16A3 or BS546)IEC 320/C1325008
208IN4272M5701(R)India (Type M)India IS 1293 (also known as IA16A3 or BS546)IEC320/C1325008
377C4272M5701(R)Israel (Type H)ISL 377CIEC 320/C1325008
23024272M5701(R)Italy (Type L)CEI 23-16/VIIIEC 320/C1325008
3003339F701(R)
[3x1.25mm2]

3003068F2701-HK(R)
[3 x 2.0mm2]		Japan (Type B)JIS 8303 / 3 PINSIEC 320/C1325008
302J115J6F0701J(R)North America / Japan (Type B ā€“ 12A)NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved)IEC 320/C1318306
302J104J6F0701J(R)North America / Japan (Type B ā€“ 15A)NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved)IEC 320/C1318306
302JT104J9F0701JT(R)North America / Japan / Taiwan (Type B ā€“ 15A)NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved), Taiwan CNS 6797 (BSMI Approved)IEC 320/C1328009
2313K3432M5701(R)Korea (Type F)KS C 8305IEC 320/C1325008
5804272M5701(R)Russia (Type F)GOST 7396IEC 320/C1325008
2084272M5701(R)South Africa (Type M)South Africa SABS164-1 (16A type)IEC 320/C1325008
23214272M5701(R)Switzerland (Type J)SEV 1011IEC 320/C1325008
3003322M5701(R)Taiwan (Type B)BSMIIEC 320/C1325008
6363762M5701(R)Thailand (Type O)TIS 166-2549IEC 320/C1325008
PZ0800100-2M5BK13H(RUK, Hong Kong,Singapore, Gulf States (Type G)BS 1363AIEC 320/C1325008
7055002M5701A(R)InternationalIEC 320 C14-C13IEC 320/C1325008
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)

Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)USBC Type (USB Type C)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
Medical 4th Ed.EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
Conforms to UL STD. 62368-1
Certified to CSA STD C22.2 NO.62368-1		Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
LPSLimited Power Source 60950
Conforms to UL STD. 60950-1Ā
Certified to CSA STD C22.2 NO.60950-1		Conforms to UL STD. 60950-1 Certified to CSA STD C22.2 NO.60950-1
User-added imageUKCA Certification
User-added imageBureau Of Indian Standards for GTM96605-G2-T3
No Logo ApplicableCB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
No LogoĀ CB Report IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 (GTM96605-G2-XX)
User-added imageIndoor Use Only - Mark is on the label or Molded in the case

No Logo Applicable

CB for IEC 62368-1:2014 (Second Edition)
User-added imageAudio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2]Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
User-added imageInformation Technology Equipment Safety Part 1: General Requirements (UL 60950-1 Issued: 2007/03/27, Ed: 2 Rev: 2014/10/14) Information Technology Equipment Safety Part 1: General Requirements (CSA C22.2 No. 60950-1 Issued: 2007/03/27 Ed: 2 (R2012) Amd.
User-added image
Ā 		AAMI ES60601-1 Issued: 2012/08/20 Medical Electrical Equipment - Part 1: CAN/CSA-C22.2 No.60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1: IEC 60601-1-11 Issued: 2015/01/20 Ed. 2 Medical Elec. Equip.- Part 1-11:
Conforms to AAMI STD. ES60601-1
Certified to CAN/CSA STD.C22.2 NO.60601-1		Conforms to AAMI STD. ES60601-1,IEC 60601-1-11 Certified to CAN/CSA STD.C22.2 NO.60601-1
User-added imageAustralia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
User-added imageS-Mark Certificate EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+A2:2013 (http://www.intertek.com/marks/s/)
User-added image
Ā 		Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
Ā User-added image
Ā 		Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
Ā User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageJAPAN TUV R-PSE, Cert. No. JD50473430 , to J62368-1(H30) , J55032(H29),J3000(H25)[DC15? 30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
User-added imageJapan: Voluntary Control Council for Interference (VCCI)

User-added imageĀ Ā 		CE Certification
User-added image
仅适ē”ØäŗŽęµ·ę‹”5000ē±³ä»„äø‹åœ°åŒŗä½æē”Ø
Ā 		CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008
Australian EMC
User-added imageĀ Ā Declaration Š”Š” ā„– Š•ŠŠ­Š” N RU Š”-US.ŠšŠ01.Š’.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
