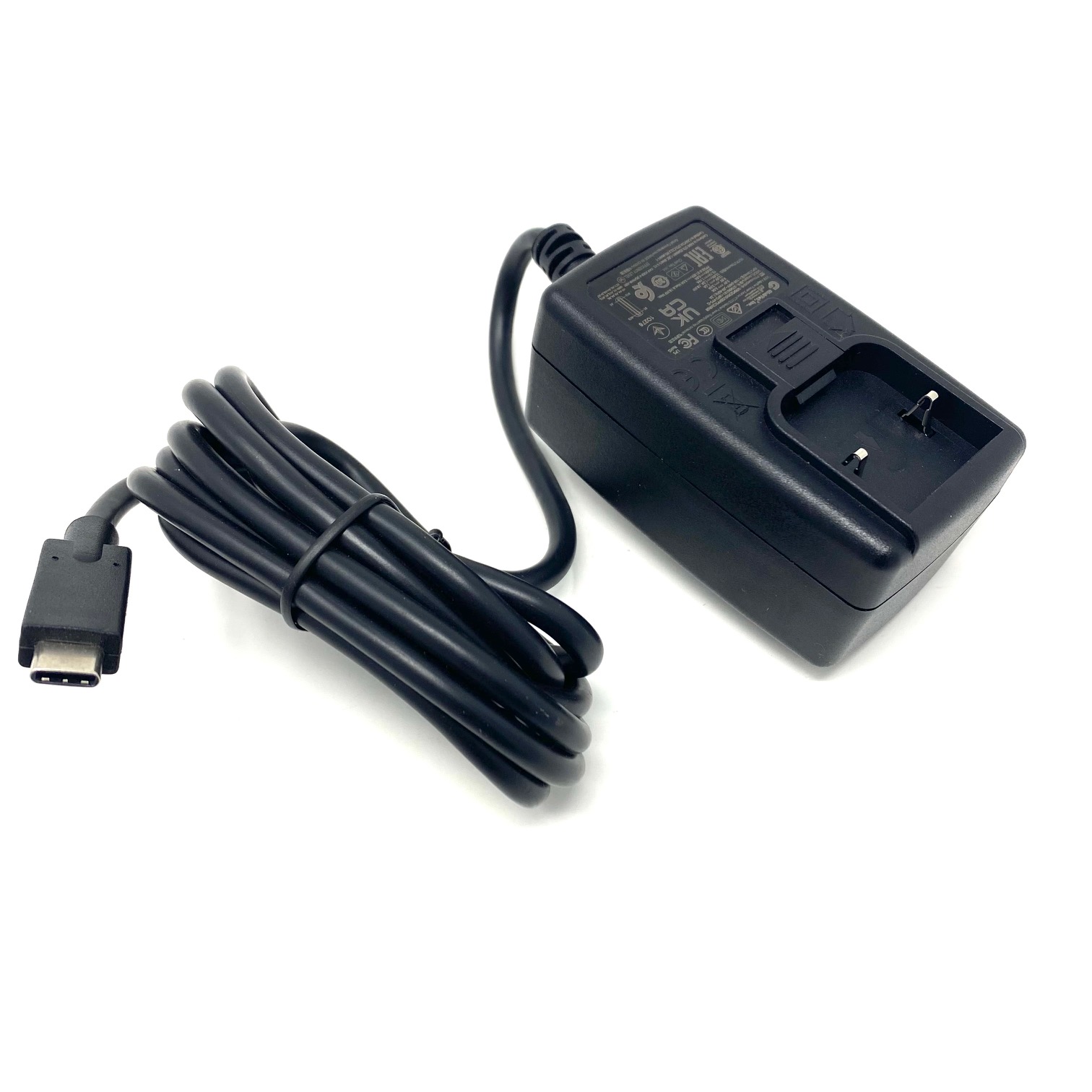

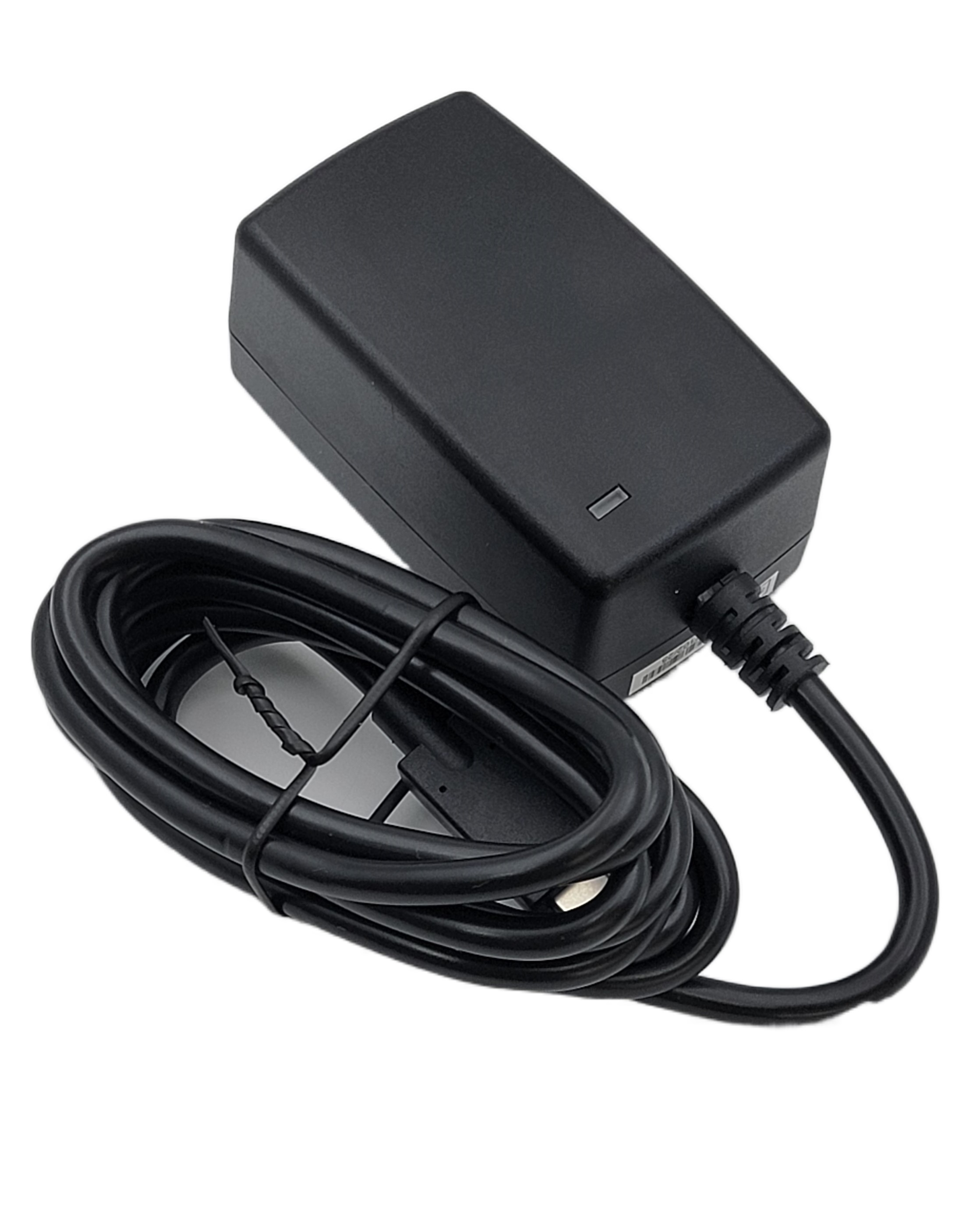

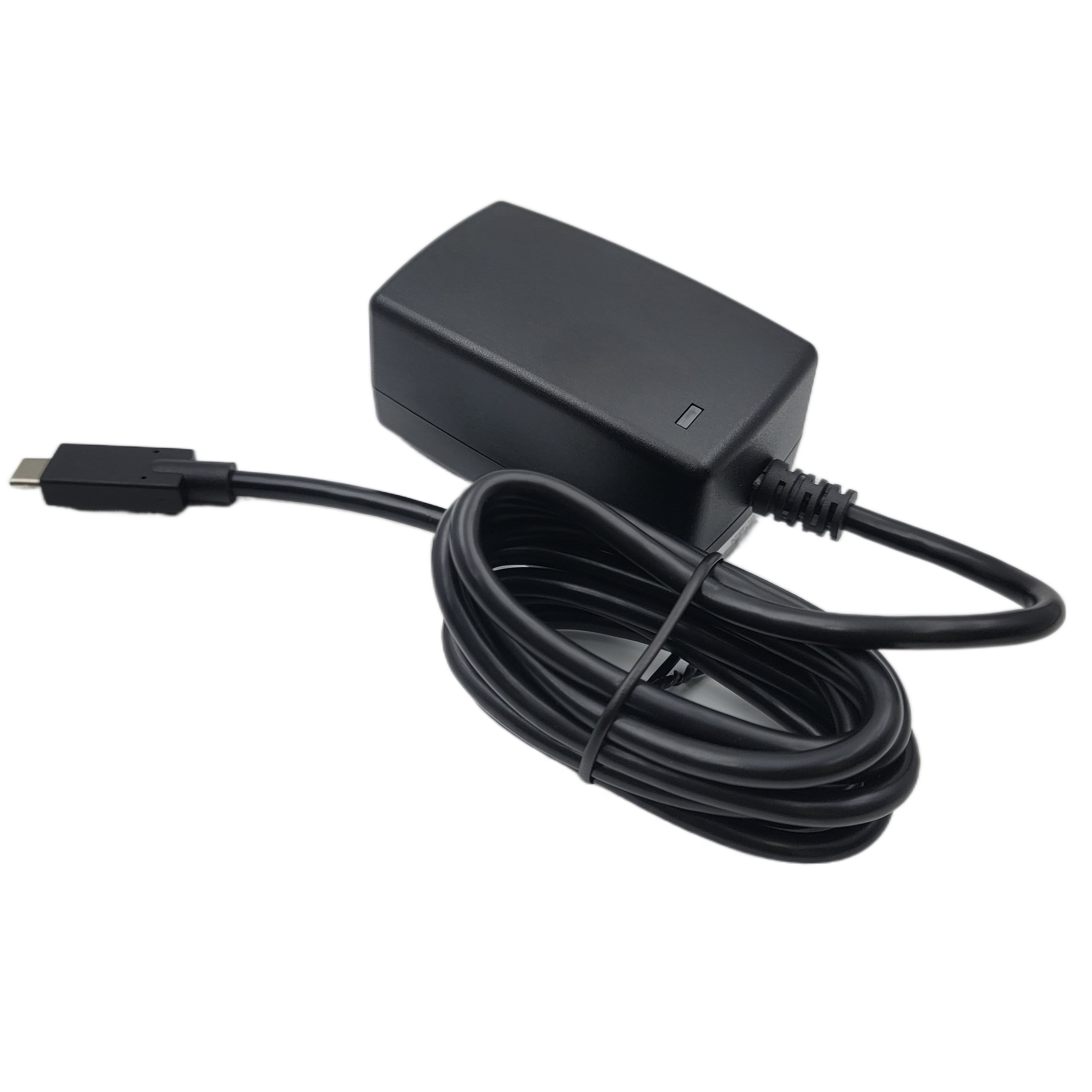

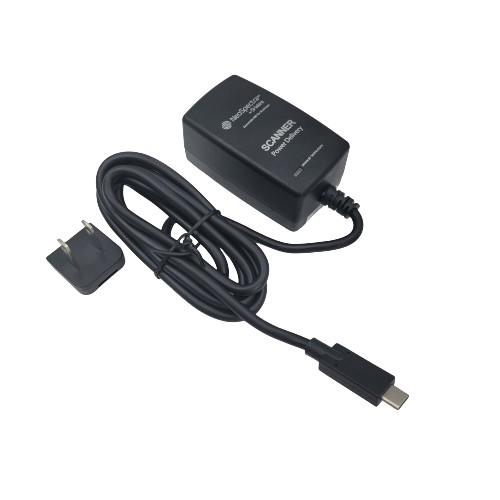

GTM96181-WWPD-Q Wall Plug-in USB Adaptive Power Source ICT/ITE/Medical Power supply

GTM96181-WWPD-Q
GTM96181-WWPD-Q, USB Adaptive Power Source ICT/ITE/Medical Power supply, Wall Plug-in, USB Adaptive Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Blade Options for Q Series Wall Plug-in Power Supplies, Output Rating: 36 Watts, Power rating with convection cooling (W) , 3.6-20V in 0.1V increments, Approvals: UKCA; WEEE; China RoHS; Ukraine; PSE; RoHS; cETLus 60601-1 3rd (pending); VCCI; CB 62368; CB 60950 (pending); 230V CoC Tier 2; EAC; FCC; CCC (pending); Double Insulation; LPS 62368; CB 60601-1 (pending); Level VI; RCM (pending); CAN ICES-3; Morocco;cco;GTM96181-WWPD-Q, USB Adaptive Power Source ICT/ITE/Medical Power supply, Wall Plug-in, USB Adaptive Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Blade Options for Q Series Wall Plug-in Power Supplies, Output Rating: 36 Watts, Power rating with convection cooling (W) , 3.6-20V in 0.1V increments, Approvals: UKCA; WEEE; China RoHS; Ukraine; PSE; RoHS; cETLus 60601-1 3rd (pending); VCCI; CB 62368; CB 60950 (pending); 230V CoC Tier 2; EAC; FCC; CCC (pending); Double Insulation; LPS 62368; CB 60601-1 (pending); Level VI; RCM (pending); CAN ICES-3; Morocco;cco;
Information
Model NumberGTM96181-WWPD-Q
Agency Documentshttp://www.globtek.info/certs/GTM96181-PD/
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O3a00000M3ytqEAB
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O3a00000M3ytqEAB
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O3a00000M3ytqEAB
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O3a00000M3ytqEAB
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeWall Plug-in
TechnologyUSB Adaptive Power Supply AC Adaptor
CategoryUSB Adaptive Power Source ICT/ITE/Medical Power supply
Input Voltage Range (V)100-240V~, 50-60 Hz
Max Input Current (A)1.2A
Max Output Power Rating (W)36
Output Voltage Range (V)3.6-20
EfficiencyUSA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 / Europe Code of Conduct on Energy Efficiency of External Power Supplies - Version 5
Ingress ProtectionIP42
Size (mm)74*43.5*36.8
Enclosure

User-added image
LED INDICATORGreen Power ON indicator LED standard. May be ordered without LED as an option, for cost reduction.

3D File Downloadhttps://www.globtek.com/file/dl/GTM96181-WWPD-Q.stp
Rating Table
Model Number (Final ordering #/Part No to be defined)Output Voltage/Current Levels AvailableRFQ
GTM96181-18PD*5V/3A, 5.8V/3A, 9V/2A, 12V/1.5A, 15V/1.2A, 15.1V/1.19A and 20V/0.9A
GTM96181-18PD*5V/3A, 5.8V/3A, 9V/2A, 12V/1.5A, 15V/1.2A, 15.1V/1.19A and 20V/0.9A
GTM96181-18PD-PPS*5V/3A, 9V/2A, 12V/1.5A, 15V/1.2A, 15.1V/1.19A, 20V/0.9A, PPS (5-21V)/3.0A (for V ≤ 6V) & 18W max
GTM96181-18PD-PPS*5V/3A, 9V/2A, 12V/1.5A, 15V/1.2A, 15.1V/1.19A, 20V/0.9A, PPS (5-21V)/3.0A (for V ≤ 6V) & 18W max
GTM96181-36PD*5V/3A, 5.8V/3A, 9V/3A, 12V/3A, 15V/2.4A, 15.1V/2.3A and 20V/1.8A
GTM96181-36PD*5V/3A, 5.8V/3A, 9V/3A, 12V/3A, 15V/2.4A, 15.1V/2.3A and 20V/1.8A
GTM96181-36PD-PPS*5V/3A, 9V/3A, 15V/2.4A, 20V/1.8A, PPS (5-11V)/3A max, PPS (5-16V)/2.2A max, PPS (5-21V)/3.0A (for V ≤ 12V) & 36W max
GTM96181-36PD-PPS*5V/3A, 9V/3A, 15V/2.4A, 20V/1.8A, PPS (5-11V)/3A max, PPS (5-16V)/2.2A max, PPS (5-21V)/3.0A (for V ≤ 12V) & 36W max
* (Final ordering #/Part No to be defined)
Specifications

USB Power Delivery Capabilities

Protocol supported:USB Power Delivery (PD) 2.0/3.0 + PPS
Advertised Power Data Objects (PDOs/APDOs):Standard option:     5V, 5.8V, 9V, 12V, 15V, 15.1V, 20V
PPS option (18W):  5V, 9V, 12V, 15V, 15.1V, 20V, PPS (5-21V)
PPS option (36W):  5V, 9V, 15V, 20V, PPS (5-11V), PPS (5-16V), PPS (5-21V)
Note 1:Custom fixed PDOs available upon request. PDO1 must be 5V. PDO2 through PDO7 may be set to any custom voltage from 5V to 20V, with a step size of 100mV.
Note 2:In critical applications, the use of a non-authorized USB PD power supply may pose a substantial risk. Power supply authorization may be implemented using USB PD Vendor Defined Messages (VDMs) to prevent system operation with non-authorized power sources. Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Input

Input Voltage:Specified: 90-264VAC, Nameplate: 100-240VAC
          100% rated load current for 90-264VAC
            85% rated load current for 85-264VAC
          100% rated load current for 110-370VDC
Input Frequency:Specified: 47-63Hz, Nameplate: 50-60Hz
No Load Input Power:< 75mW @ 230VAC (EU CoC Tier 2 compliant)
Inrush Current:< 30A @ 115VAC, < 60A @ 230VAC (cold start)
Efficiency:DoE Efficiency Level VI and CoC Tier 2 compliant (tested according to DoE 10 CFR Part 430, Subpart B, Appendix Z)

Output

Turn-on Delay:< 1 second @ 115VAC and full load
Output Regulation± 4% max. (measured at the end of a 1m long output cord)
Line Regulation:± 0.5% typ. (measured at the end of a 1m long output cord)
Ripple:100mV max. (using a 47µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector)
Transient Response:5% max. deviation, 1ms max. recovery time (with 25% load step),
Hold-up Time:8ms min. (100VAC and full load)
Power Indicator:Green LED

Protections

Input Protection:MOV transient suppressor, input line fusing
Over-Voltage Protection:Level 1: 110-130%, Auto-recovery, adaptive to selected PDO
Level 2: 24-28V, Latched off, cycle AC to reset
Over-Current Protection:110-130%, Auto-recovery, adaptive to selected PDO
Short-Circuit Protection:Auto-recovery
Over-Temperature Protection:Auto-recovery

Environmental

MTBF:1,500,000 hours @ 25°C ambient, full load (Telcordia SR-332, Issue 3)
Operating Temperature:-10°C to 40°C (full load)
Storage Temperature:-40°C to 80°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Convection
RoHS:Complies with EU 2011/65/EU and China SJ/T 11363-2006

Safety

Dielectric Withstand Voltage:4000VAC or 5656VDC from input to output
10mA, 1 minute
Touch Current:NC: 80µA max.
SFC: 400µA max.
Earth Leakage Current300µA max. NC/SFC (N/A for 2-conductor input models)
Means of Protection:2 x MOPP
Output Isolation Options: -Q suffix: Class II 2-conductor (interchangeable blades)
-T2 suffix: Class II 2-conductor
-T3 suffix: Class II, with functional earth (FE)
                 Class I, earth wire connected directly to output negative
Note 3: Review output isolation options with our article:  PSU Isolation and Identify

EMC

Applicable Standards:Medical: EN 60601-1-2 (4e)
Emissions: EN55032, EN61000-6-3, EN61000-6-4
Immunity: EN55024, EN61000-6-1 (4e), EN61000-6-2 (4e)
Conducted Emissions:Class B, FCC Part 15, Class B (with resistive load)
Radiated Emissions:Class B, FCC Part 15, Class B (with resistive load)
Harmonic Current Voltage Distortion:EN61000-3-2, Class A
Voltage Fluctuations/Flicker:EN61000-3-3
Electrostatic Discharge (ESD) Immunity:EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A
Radiated RF Immunity:EN61000-4-3, 10V/m @ 80-1000MHz, 3V/m @ 1-2.7GHz, 80% 1KHz AM, Criterion A
EFT/Burst Immunity:EN61000-4-4, 4KV/100KHz., Criterion A
Line Surge Immunity:EN61000-4-5, 2KV differential, 4KV common-mode, Criterion A
Conducted RF Immunity:EN61000-4-6, 10VRMS, 80% 1KHz AM, Criterion A
Voltage Dip Immunity:EN61000-4-11, Criterion B/C
Note 4:When a Class II power supply is connected to an earth-referenced system, conducted/radiated EMI levels tend to increase since the distant earth connection creates a long return path for common-mode EMI currents. This model includes an output common-mode choke to help alleviate system-level EMI issues. This choke can be removed for cost-sensitive applications.

Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Markings:Adhesive backed label or laser engraving

Security

USB Power Delivery:Two non-standard voltage profiles are included: 5.8V and 15.1V. System designers may use these non-standard profiles to reduce the likelihood of system operation with non-GlobTek power supplies. 12.0V is also not standard, but is often included in other power supplies.

The power supply will respond to a USB PD “Discover Identity” VDM with 0x4754 in the “ProductID” field. USB PD host systems may check this value before initiating/allowing power negotiation.
Note 5:These measures do not guarantee a secure implementation, and are only suggested as a method of risk mitigation.
Note 6:Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information.

Special Options

Non-standard - Contact GlobTek

  1. Custom housing and output cord colors
  2. Custom fixed output cord length, for applicable models (1m, 2m, 3m lengths)
  3. Custom markings and marking methods
  4. Custom USB PD PDOs: Output voltages selectable between 5V and 20V, in 100mV increments
Derating CurveUser-added image
Qty (ea.)/Carton60
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box Colorwhite
Master Carton Size (mm)480 x 450 x 205
Gross Weight (kg)15.2
Label Width (mm)29.8
Label Height (mm)20.8
Input Configuration
DescriptionBlade Options for Q Series Wall Plug-in Power SuppliesData Sheet: http://en.globtek.com/interchangeable-blades.php
Insertion Instructions: http://www.globtek.com/pdf/Instructions-Interchangeable-Blades.pdf
Video: Q-Blade Style Instruction Video


User-added image


INPUT CONNECTOR: Q-Socket (below are available blades configurations which are "not included" (unless stated above); can be purchased separately, package with power supply or as a separate "Q-KIT" if specified

01. United States / Canada / Japan  NEMA 1-15P/ IEC PLUG Type A [WORKS IN PLUG B] configuration: NA 2 blades, Class II; US/CA/JP P/N: Q-NA(R)
02. Australian AS 3112 configuration: SAA 2 blade/ IEC TYPE I, Class II; AU P/N: Q-SAA(R)
03. UK BS 1363 configuration: UK 3 blade with dummy Ground/ IEC TYPE G, Class II; GB P/N: Q-UK(R)
04. European CEE 7/16 configuration: Europlug 2 pins/ IEC TYPE C [WORKS IN TYPE E&F], Class II; EU P/N: Q-EU(R)
05. Korean KS C8305 configuration: 2 pins/SIMILAR TO IEC TYPE C, Class II; KR P/N: Q-KR(R)
06. Argentina IRAM 2073 configuration: 2 blades/SIMILAR TO IEC TYPE I; AR P/N: Class II Q-AR(R)
07. China GB 2099 configuration: 2 blades/SIMILAR TO TYPE A, Class II; CN P/N:Q-CN(R)
08. India IS 1293 6A/BS546 configuration: 5A, 3 pins with Dummy Ground, Class II/IEC TYPE D; IN P/N: Q-IN(R)
09. IEC60320/C18 Inlet, Class II; P/N: Q-C18(R)
10. Brazilian NBR6147 configuration: 2 pins, Class II;SIMILAR TO IEC TYPE C BR P/N: Q-BR(R)
11. South Africa SABS164-1 and India
 IS 1293, IS694, 16A type plug, 3 round prongs, Class II + dummy ground, IEC TYPE M P/N: Q-SANS164-1-16A(R)
12. South Africa SABS164-4, 3 round prongs with a notched prong @ 0º, Class II + dummy ground, IEC TYPE M Red, P/N:
Q-SANS164-4C-16A(R)
13. South Africa SABS164-4, 3 round prongs with a notched prong @ -
53º, Class II + dummy ground, Blue, IEC TYPE M, P/N:
Q-SANS164-4L-16A(R)
14. South Africa SABS164-4, 3 round prongs with a notched prong @ +53º, Class II + dummy ground, Black,IEC TYPE M P/N:
Q-SANS164-4R-16A(R)

Kits

01. Q-KIT: 1,2,3,4 above
02. Q-KIT-INTL: 2,3,4 above
03. Q-KIT-6: 1,2,3,4,5,6 above
04. Q-KIT-7: 1,2,3,4,5,6,7 above
05. Q-KIT-8: 1,2,3,4,5,6,7,8 above

Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)

Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)USBC Type (USB Type C)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
User-added image  Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
User-added imagenull
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
CAN ICES-3(B)/NMB-3(B)
Compliance of this PSU with Industry Canada, Class B demonstrated with a standard output load. The ICES law stipulates that system-level testing is required to demonstrate compliance with the ICES-3 emission limits with the actual system load.
 User-added imageCCC to GB4943. 1-2011; GB9254-2008; GB17625. 1-2012 with Tropical and Altitude up to 5000 m approval. (pending)
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
No Logo ApplicableEU 230V CoC Tier 2, 278/2009, Mar 2014

No Logo Applicable

CB for IEC 62368-1:2014 (Second Edition)
User-added imageCompliance of this power supply with FCC Part 15, Class B has been demonstrated with a standard output load. The FCC law stipulates that system-level testing is required to demonstrate compliance with the FCC emission limits with the actual system load.
LPSLimited Power Source 62368
 User-added image

Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50471561.pdf, to J62368-1(H30) , J55032(H29), J3000(H25) ,[15V?30V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
User-added image

Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/
User-added image

Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm (pending)

No Logo Applicable

IEC 60601-1:2005 (Third Edition) + CORR. 1 (2006) + CORR. 2 (2007) + AM1 (2012) or IEC 60601-1 (2012 reprint) (Ed 3.1) for GTM96181 only (pending)

No Logo Applicable

CB for IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 (pending)
User-added imageUKCA Certification
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
User-added image

AAMI ES60601-1 Issued: 2012/08/20 Med Electrical Equipment - Part 1: CAN/CSA-C22.2 No.60601-1:14, 3rd Edition Issued: 2014/03/01 - Med Electrical Equipment - Part 1: IEC 60601-1-11 Ed. 2 Medical Elec. Equip.- Part 1-11: GTM96181 only (pending)
User-added image  Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
User-added imagenull
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
CAN ICES-3(B)/NMB-3(B)
Compliance of this PSU with Industry Canada, Class B demonstrated with a standard output load. The ICES law stipulates that system-level testing is required to demonstrate compliance with the ICES-3 emission limits with the actual system load.
 User-added imageCCC to GB4943. 1-2011; GB9254-2008; GB17625. 1-2012 with Tropical and Altitude up to 5000 m approval. (pending)
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
No Logo ApplicableEU 230V CoC Tier 2, 278/2009, Mar 2014

No Logo Applicable

CB for IEC 62368-1:2014 (Second Edition)
User-added imageCompliance of this power supply with FCC Part 15, Class B has been demonstrated with a standard output load. The FCC law stipulates that system-level testing is required to demonstrate compliance with the FCC emission limits with the actual system load.
LPSLimited Power Source 62368
 User-added image

Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50471561.pdf, to J62368-1(H30) , J55032(H29), J3000(H25) ,[15V?30V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
User-added image

Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/
User-added image

Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm (pending)

No Logo Applicable

IEC 60601-1:2005 (Third Edition) + CORR. 1 (2006) + CORR. 2 (2007) + AM1 (2012) or IEC 60601-1 (2012 reprint) (Ed 3.1) for GTM96181 only (pending)

No Logo Applicable

CB for IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 (pending)
User-added imageUKCA Certification
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
User-added image

AAMI ES60601-1 Issued: 2012/08/20 Med Electrical Equipment - Part 1: CAN/CSA-C22.2 No.60601-1:14, 3rd Edition Issued: 2014/03/01 - Med Electrical Equipment - Part 1: IEC 60601-1-11 Ed. 2 Medical Elec. Equip.- Part 1-11: GTM96181 only (pending)

Request Info
