GTM96183-WWPD-USB1C-Q |
---|

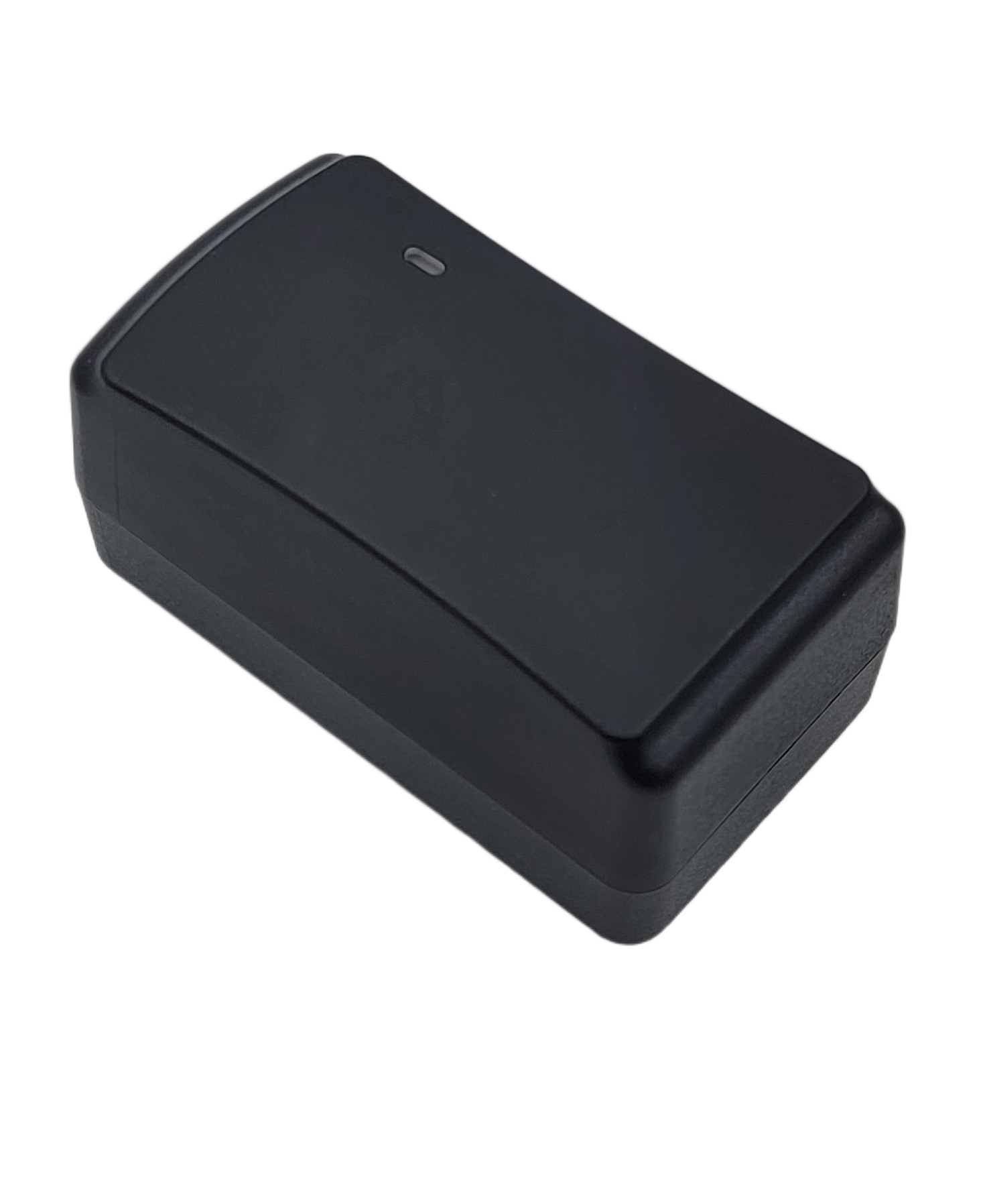

| GTM96183-WWPD-USB1C-Q, USB Adaptive Power Source ICT/ITE/Medical Power supply, Wall Plug-in, USB Adaptive Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Blade Options for Q Series Wall Plug-in Power Supplies, Output Rating: 36 Watts, Power rating with convection cooling (W) , 3.6-20V in 0.1V increments, Approvals: UKCA; EAC; PSE; CAN ICES-3; RCM (pending); China RoHS; Level VI; CB 60601-1 (pending); LPS 62368; RoHS; Ukraine; VCCI; WEEE; Double Insulation; CCC (pending); FCC; cETLus 60601-1 3rd (pending); 230V CoC Tier 2; CB 60950 (pending); CB 62368; Morocco;cco; |
---|
Information |
---|
Model Number | GTM96183-WWPD-USB1C-Q |
---|
Agency Documents | http://www.globtek.info/certs/GTM96183-PD/ |
---|
CE EC-Declaration for Medical | Contact GlobTek for more information |
---|
CE EC-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ec_declaration?id=a0O3a00000M3yqaEAB |
---|
CE EC-Declaration for Household | Contact GlobTek for more information |
---|
UKCA-Declaration for Medical | Contact GlobTek for more information |
---|
UKCA-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ukca_declaration?id=a0O3a00000M3yqaEAB |
---|
UKCA-Declaration for Household | Contact GlobTek for more information |
---|
Morocco SDoC Declaration | https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O3a00000M3yqaEAB |
---|
RoHS/RoHS3 Declaration | https://www.globtek.com/pdf/rohs_cert/a0O3a00000M3yqaEAB |
---|
Prop 65 Statement | https://www.globtek.com/r2/PH7CNf |
---|
REACH Declaration | https://www.globtek.com/r2/eM2co8 |
---|
Conflict Minerals Declaration | https://www.globtek.com/r2/vZY8R5 |
---|
Model Parameters |
---|
Type | Wall Plug-in |
---|
Technology | USB Adaptive Power Supply AC Adaptor |
---|
Category | USB Adaptive Power Source ICT/ITE/Medical Power supply |
---|
Input Voltage Range (V) | 100-240V~, 50-60 Hz |
---|
Max Input Current (A) | 0.6A |
---|
Max Output Power Rating (W) | 36 |
---|
Output Voltage Range (V) | 3.6-20 |
---|
Efficiency | USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 |
---|
Ingress Protection | Indoor Use |
---|
Size (mm) | 41.0 x 70.0 x 35.1 |
---|
Enclosure |
|
---|
3D File Download | https://www.globtek.com/file/dl/gtm96183-wwpd-usb1c-q.stp |
---|
Rating Table |
---|
Model Number (Final ordering #/Part No to be defined) | Output Number | Voltage | Amps (Convection) | Amps (Forced Air) | Watts (Convection) | Watts (Forced Air) | RFQ |
---|
* (Final ordering #/Part No to be defined) |
Specifications |
---|
USB Power Delivery CapabilitiesProtocol supported: | USB Power Delivery (PD) 2.0/3.0 + PPS |
---|
Advertised Power Data Objects (PDOs/APDOs): | Standard option: 5V, 5.8V, 9V, 12V, 15V, 15.1V, 20V PPS option (18W): 5V, 9V, 12V, 15V, 15.1V, 20V, PPS (5-21V) PPS option (36W): 5V, 9V, 15V, 20V, PPS (5-11V), PPS (5-16V), PPS (5-21V) |
---|
Note 1: | Custom fixed PDOs available upon request. PDO1 must be 5V. PDO2 through PDO7 may be set to any custom voltage from 5V to 20V, with a step size of 100mV. |
---|
Note 2: | In critical applications, the use of a non-authorized USB PD power supply may pose a substantial risk. Power supply authorization may be implemented using USB PD Vendor Defined Messages (VDMs) to prevent system operation with non-authorized power sources. Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information. |
---|
InputInput Voltage: | Specified: 90-264VAC, Nameplate: 100-240VAC 100% rated load current for 90-264VAC 85% rated load current for 85-264VAC 100% rated load current for 110-370VDC |
---|
Input Frequency: | Specified: 47-63Hz, Nameplate: 50-60Hz |
---|
No Load Input Power: | < 75mW @ 230VAC (EU CoC Tier 2 compliant) |
---|
Inrush Current: | < 30A @ 115VAC, < 60A @ 230VAC (cold start) |
---|
Efficiency: | DoE Efficiency Level VI and CoC Tier 2 compliant (tested according to DoE 10 CFR Part 430, Subpart B, Appendix Z) |
---|
OutputTurn-on Delay: | < 1 second @ 115VAC and full load |
---|
Output Regulation | ± 4% max. (measured at the end of a 1m long output cord) |
---|
Line Regulation: | ± 0.5% typ. (measured at the end of a 1m long output cord) |
---|
Ripple: | 100mV max. (using a 47µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector) |
---|
Transient Response: | 5% max. deviation, 1ms max. recovery time (with 25% load step), |
---|
Hold-up Time: | 8ms min. (100VAC and full load) |
---|
Power Indicator: | Green LED |
---|
ProtectionsInput Protection: | MOV transient suppressor, input line fusing |
---|
Over-Voltage Protection: | Level 1: 110-130%, Auto-recovery, adaptive to selected PDO Level 2: 24-28V, Latched off, cycle AC to reset |
---|
Over-Current Protection: | 110-130%, Auto-recovery, adaptive to selected PDO |
---|
Short-Circuit Protection: | Auto-recovery |
---|
Over-Temperature Protection: | Auto-recovery |
---|
EnvironmentalMTBF: | 1,500,000 hours @ 25°C ambient, full load (Telcordia SR-332, Issue 3) |
---|
Operating Temperature: | -10°C to 40°C (full load) |
---|
Storage Temperature: | -40°C to 80°C |
---|
Humidity: | 0% to 95% relative humidity, non-condensing |
---|
Altitude | 5000m |
---|
Cooling: | Convection |
---|
RoHS: | Complies with EU 2011/65/EU and China SJ/T 11363-2006 |
---|
SafetyDielectric Withstand Voltage: | 4000VAC or 5656VDC from input to output 10mA, 1 minute |
---|
Touch Current: | NC: 80µA max. SFC: 400µA max. |
---|
Earth Leakage Current | 300µA max. NC/SFC (N/A for 2-conductor input models) |
---|
Means of Protection: | 2 x MOPP |
---|
Output Isolation Options: | -Q suffix: Class II 2-conductor (interchangeable blades) -T2 suffix: Class II 2-conductor -T3 suffix: Class II, with functional earth (FE) Class I, earth wire connected directly to output negative |
---|
Note 3: | Review output isolation options with our article: PSU Isolation and Identify |
---|
EMCApplicable Standards: | Medical: EN 60601-1-2 (4e) Emissions: EN55032, EN61000-6-3, EN61000-6-4 Immunity: EN55024, EN61000-6-1 (4e), EN61000-6-2 (4e) |
---|
Conducted Emissions: | Class B, FCC Part 15, Class B (with resistive load) |
---|
Radiated Emissions: | Class B, FCC Part 15, Class B (with resistive load) |
---|
Harmonic Current Voltage Distortion: | EN61000-3-2, Class A |
---|
Voltage Fluctuations/Flicker: | EN61000-3-3 |
---|
Electrostatic Discharge (ESD) Immunity: | EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A |
---|
Radiated RF Immunity: | EN61000-4-3, 10V/m @ 80-1000MHz, 3V/m @ 1-2.7GHz, 80% 1KHz AM, Criterion A |
---|
EFT/Burst Immunity: | EN61000-4-4, 4KV/100KHz., Criterion A |
---|
Line Surge Immunity: | EN61000-4-5, 2KV differential, 4KV common-mode, Criterion A |
---|
Conducted RF Immunity: | EN61000-4-6, 10VRMS, 80% 1KHz AM, Criterion A |
---|
Voltage Dip Immunity: | EN61000-4-11, Criterion B/C |
---|
Note 4: | When a Class II power supply is connected to an earth-referenced system, conducted/radiated EMI levels tend to increase since the distant earth connection creates a long return path for common-mode EMI currents. This model includes an output common-mode choke to help alleviate system-level EMI issues. This choke can be removed for cost-sensitive applications. |
---|
EnclosureHousing: | High impact plastic, 94V0 polycarbonate, non-vented |
---|
Markings: | Adhesive backed label or laser engraving |
---|
SecurityUSB Power Delivery: | Two non-standard voltage profiles are included: 5.8V and 15.1V. System designers may use these non-standard profiles to reduce the likelihood of system operation with non-GlobTek power supplies. 12.0V is also not standard, but is often included in other power supplies.
The power supply will respond to a USB PD “Discover Identity” VDM with 0x4754 in the “ProductID” field. USB PD host systems may check this value before initiating/allowing power negotiation. |
---|
Note 5: | These measures do not guarantee a secure implementation, and are only suggested as a method of risk mitigation. |
---|
Note 6: | Please see our article Product Security and Risk Mitigation for USB Power Delivery (PD) Based Systems for additional information. |
---|
Special OptionsNon-standard - Contact GlobTek - Custom housing and output cord colors
- Custom fixed output cord length, for applicable models (1m, 2m, 3m lengths)
- Custom markings and marking methods
- Custom USB PD PDOs: Output voltages selectable between 5V and 20V, in 100mV increments
|
Derating Curve | |
---|
Qty (ea.)/Carton | 210 |
---|
Individual Box/Gift Box Size (mm) | 74 x 35 x 42 |
---|
Individual Box/Gift Box Color | White |
---|
Master Carton Size (mm) | 544 x 375 x 151 |
---|
Gross Weight (kg) | 14.8 |
---|
Label Width (mm) | 28.5 |
---|
Label Height (mm) | 17.5 |
---|
Input Configuration |
---|

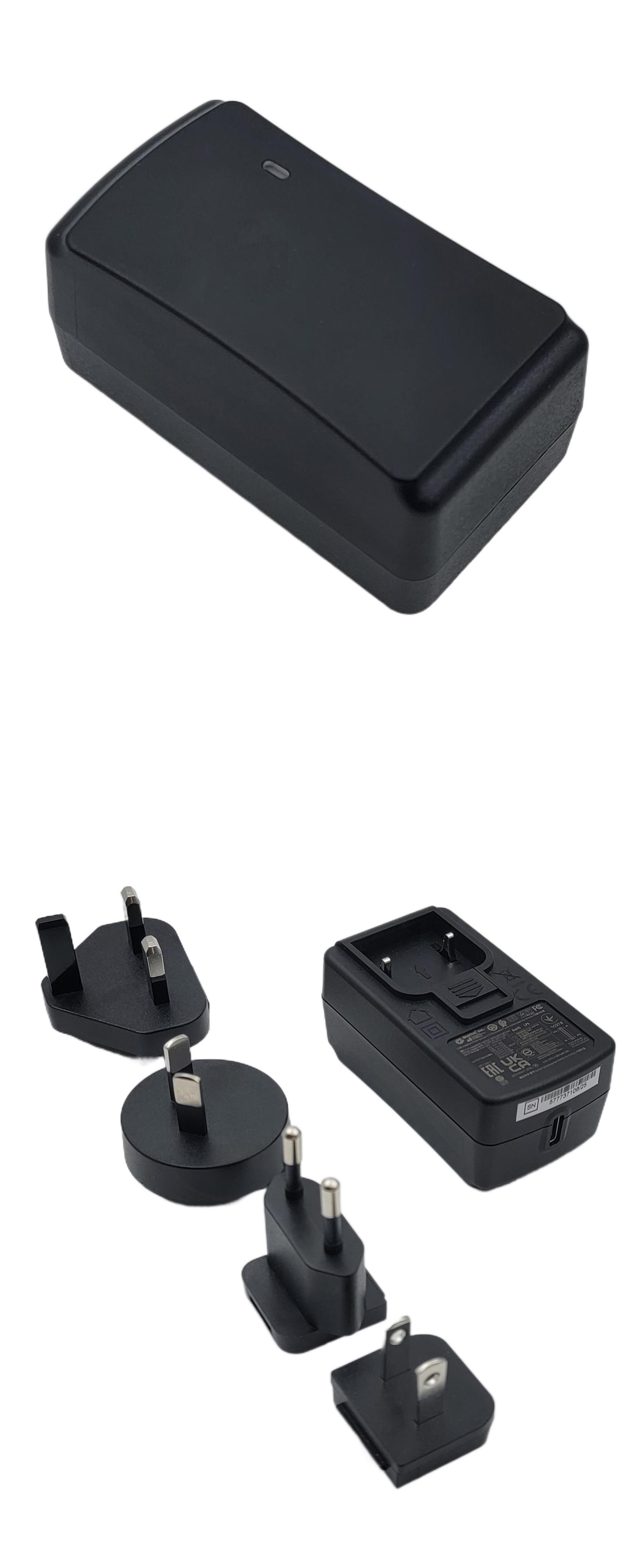

Description | Blade Options for Q Series Wall Plug-in Power SuppliesData Sheet: http://en.globtek.com/interchangeable-blades.php Insertion Instructions: http://www.globtek.com/pdf/Instructions-Interchangeable-Blades.pdf Video: Q-Blade Style Instruction Video
