Name: GT-96300-3656-T3-AP
Creator: GlobTek

High-Performance Gigabit PoE Injector for Reliable Power Delivery

▼▼Scroll to GT-96300-3656-T3-AP datasheet▼▼

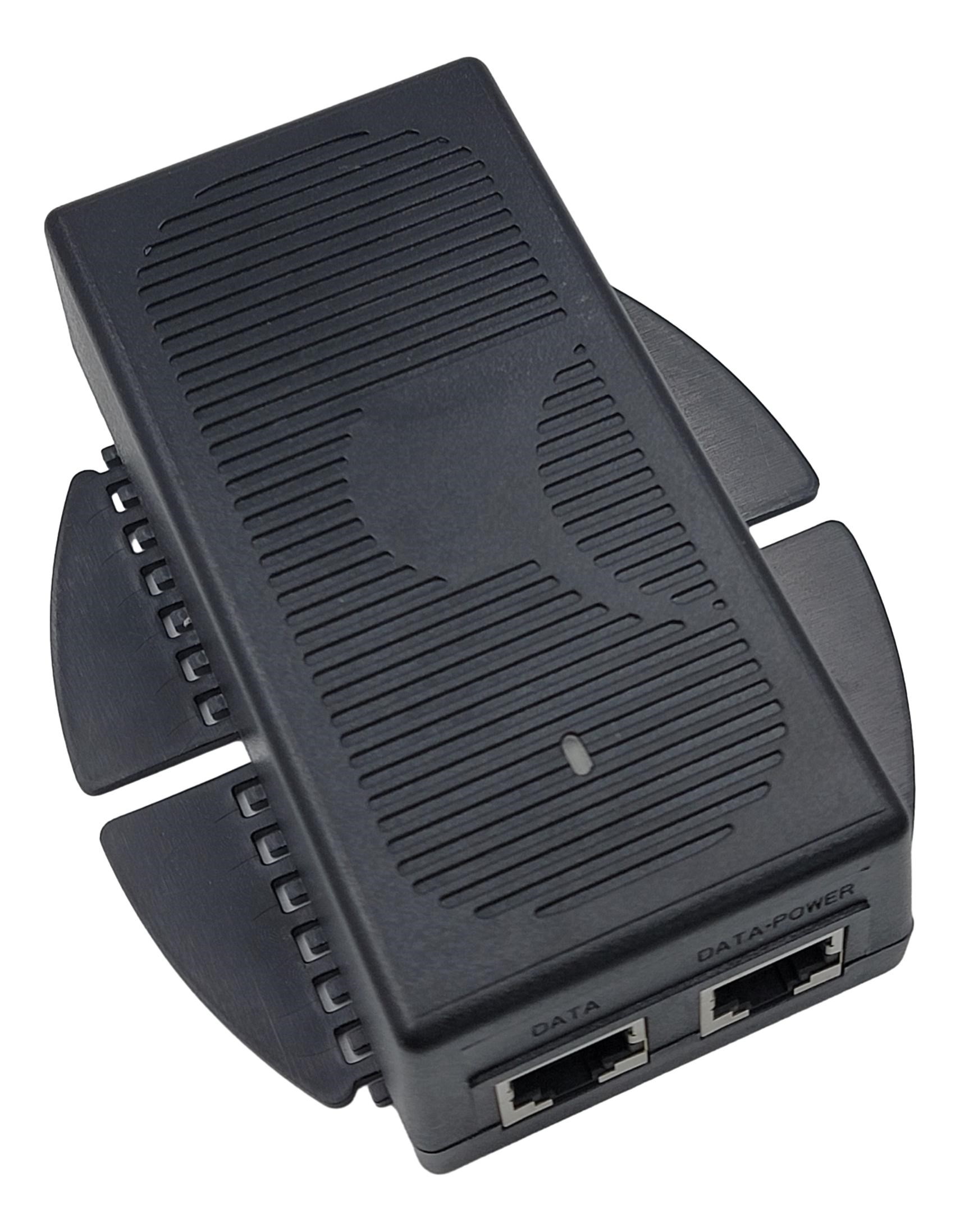

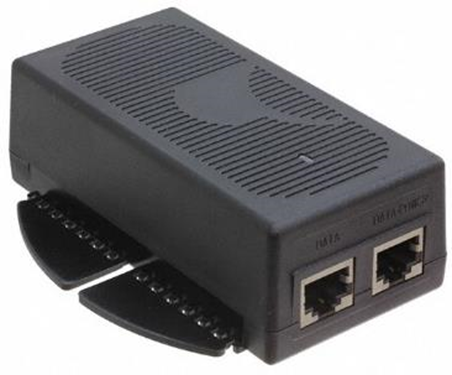

GlobTek GT-96300-3656-T3-AP PoE Active Power Injector

GlobTek’s Advanced Solution for Powering Network Devices with Efficiency and Compliance

GlobTek introduces the GT-96300-3656-T3-AP, a desktop/external Power over Ethernet (PoE) active power injector designed to deliver reliable power and data connectivity for modern network applications. This IEEE802.3at-compliant PoE Power Sourcing Equipment (PSE) offers a robust 36W output at 56V, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. With an input range of 100-240V~ at 50-60 Hz and an IEC 60320/C14 AC inlet, this injector ensures global compatibility and ease of integration. The device meets stringent Level VI efficiency standards and complies with a wide range of international safety and environmental certifications, including ETL, UKCA, CCC, and RoHS, ensuring reliability and sustainability. Its gigabit data rate support (10/100/1000 Mbps) ensures seamless connectivity for high-speed networks, while the convection-cooled design enhances durability without the need for active cooling. Whether deployed in enterprise, industrial, or commercial settings, the GT-96300-3656-T3-AP from GlobTek provides a versatile and compliant solution for powering PoE-enabled devices, backed by the company’s commitment to innovation and quality.

Features

IEEE802.3at-compliant PoE active power injector for standardized power delivery.
36W output at 56V, adjustable in 0.1V increments for precise power needs.
Gigabit data rate support (10/100/1000 Mbps) for high-speed network performance.
Wide input range of 100-240V~, 50-60 Hz for global compatibility.
IEC 60320/C14 AC inlet with Class I, earth ground for secure connectivity.
Level VI efficiency compliance for energy savings and reduced environmental impact.
Convection-cooled design for reliable operation without fans.
Certified to ETL 62368, UKCA, CCC, and S-Mark 62368 for global safety standards.
RoHS and China RoHS compliant for environmentally conscious manufacturing.
Protected by US patent US9838207B2 for innovative design.
Additional cordsets for other regions (e.g., China, Korea, Brazil) are available; see GlobTek’s datasheet for full list.

Applications

IP surveillance cameras for security systems.
Wireless access points for enterprise Wi-Fi networks.
VoIP phones for business communication systems.
IoT gateways for smart building automation.
Network switches in small to medium-sized offices.
Digital signage systems for retail and public displays.
Access control systems for secure entry management.
Industrial automation equipment requiring PoE connectivity.

Parts Lists

Primary Part:

DigiKey Part Number	Manufacturer's Part Number	Description
GT96300-3656-T3-APOE	GT-96300-3656-T3-AP	56V Power Over Ethernet (POE) 1 Port Midspan Injector, 10/100/1000 Mbps Data Rate

Supporting Parts:

DigiKey Part Number	Manufacturer's Part Number	Country	Description
1939-1010-ND	3021457F701(R)	N. American (Type B)	NEMA 5-15P to IEC 320/C13, 2150mm
1939-1003-ND	1191068F0701(R)	N. American (Type B)	NEMA 5-15P Hospital to IEC 320/C13, 2459mm
1939-1606-ND	2194272M5701-T(R)	Argentina (Type I)	IRAM 2073 to IEC 320/C13, 2500mm
1939-1669-ND	5502022M5701A(R)	Australian (Type I)	AS3112 / 3 PRONG to IEC 320/C13, 2500mm
1939-1592-ND	204B4272M5701(R)	Brazil (Type N)	BRAZIL to IEC 320/C13, 2500mm
1939-1671-ND	6023602M5701(R)	China (Type I)	CCC GR2099 to IEC 320/C13, 2500mm
1939-1697-ND	G8014272M5701(R)	Danish (Type K)	AFSNIT SECTION 107-2-D1 to IEC 320/C13, 2500mm
1939-1619-ND	23144272M5701-T(R)	Europe (Type E)	CEE 7/7 to IEC 320/C13, 2500mm
1939-23134272M5701EUKR(R)-ND	23134272M5701EUKR(R)	Europe/Korea Combo (Type E)	CEE 7/7 / KSC8305 to IEC 320/C13, 2500mm
1939-1890-ND	205IN4272M5701(R)	India (Type D)	India IS 129ogle3 (IA16A3 or BS546) to IEC 320/C13, 2500mm
1939-1893-ND	208IN4272M5701(R)	India (Type M)	India IS 1293 (IA16A3 or BS546) to IEC320/C13, 2500mm
1939-1653-ND	377C4272M5701(R)	Israel (Type H)	ISL 377C to IEC 320/C13, 2500mm
1939-1608-ND	23024272M5701(R)	Italy (Type L)	CEI 23-16/VII to IEC 320/C13, 2500mm
1939-1636-ND	3003339F701(R)	Japan (Type B)	JIS 8303 / 3 PINS to IEC 320/C13, 2500mm, 3x1.25mm2
1939-1633-ND	3003068F2701-HK(R)	Japan (Type B)	JIS 8303 / 3 PINS to IEC 320/C13, 2500mm, 3x2.0mm2
1939-1896-ND	302J115J6F0701J(R)	North America / Japan (Type B â€“ 12A)	NEMA 5-15P (cULus, PSE Approved) to IEC 320/C13, 1830mm
1939-1895-ND	302J104J6F0701J(R)	North America / Japan (Type B â€“ 15A)	NEMA 5-15P (cULus, PSE Approved) to IEC 320/C13, 1830mm
1939-302JT104J9F0701JT(R)-ND	302JT104J9F0701JT(R)	North America / Japan / Taiwan (Type B â€“ 15A)	NEMA 5-15P (cULus, PSE, BSMI Approved) to IEC 320/C13, 2800mm
1939-1616-ND	2313K3432M5701(R)	Korea (Type F)	KS C 8305 to IEC 320/C13, 2500mm
1939-1601-ND	2084272M5701(R)	South Africa (Type M)	South Africa SABS164-1 (16A type) to IEC 320/C13, 2500mm
1939-1632-ND	23214272M5701(R)	Switzerland (Type J)	SEV 1011 to IEC 320/C13, 2500mm
1939-1635-ND	3003322M5701(R)	Taiwan (Type B)	BSMI to IEC 320/C13, 2500mm
1939-6363762M5701(R)-ND	6363762M5701(R)	Thailand (Type O)	TIS 166-2549 to IEC 320/C13, 2500mm
1939-1721-ND	PZ0800100-2M5BK13H(R)	UK, Hong Kong, Singapore, Gulf States (Type G)	BS 1363A to IEC 320/C13, 2500mm
1939-1686-ND	7055002M5701A(R)	International	IEC 320 C14-C13 to IEC 320/C13, 2500mm

GT-96300-3656-T3-AP Specifications

GT-96300-3656-T3-AP

GT-96300-3656-T3-AP, PoE, Active Power Injector, Desktop/External, Gigabit Power over Ethernet (IEEE802.3at PoE PSE) Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, IEC 60320/C14 AC Inlet Connector, Class I, Earth Ground, Output Rating: 36 Watts, Power rating with convection cooling (W) , 56V in 0.1V increments, Approvals: ETL; CB 62368; Patent US9838207B2; EAC; CCC; ETL 62368; UKCA; LPS 62368; Conforms to 62368-1; Morocco; S-Mark 62368; IRAM; PSE; Level VI; Ukraine; RCM; CE; CB 60335; WEEE; VCCI; China RoHS; RoHS; India BIS;

Information

Model Number

GT-96300-3656-T3-AP

Agency Documents

http://www.globtek.info/certs/GT-96300-POE/

CE EC-Declaration for Medical

Contact GlobTek for more information

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0Oa000000Mm4XQEAZ

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

Contact GlobTek for more information

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0Oa000000Mm4XQEAZ

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000Mm4XQEAZ

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0Oa000000Mm4XQEAZ

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Desktop/External

Technology

Gigabit Power over Ethernet (IEEE802.3at PoE PSE) Power Supply AC Adaptor

Category

PoE, Active Power Injector

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

1.0A

Max Output Power Rating (W)

Output Voltage Range (V)

Efficiency

USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782

Ingress Protection

IP40

Size (mm)

107*55*36

Enclosure

Optional: Mounting tabs "wings" can be cut and surface sanded to remove them at an additional cost

3D File Download

https://www.globtek.com/file/dl/GT-96180-1856-T3-AP.stp

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)	RFQ
GT-96300-3656-T3-AP*	56	0.643	36.01

* (Final ordering #/Part No to be defined)

Specifications

GlobTek’s GT-96300-3656 Active Power over Ethernet Midspan Injector offers cost effective and reliable solution for remote powering of Wireless LAN Access Points, Voice over IP phones, Security Cameras, RFID readers and other IP terminals up to 36 Watts over existing network infrastructure. This injector is configured to provide 36 watts of power per port over two pairs in compliance with IEEE 802.3at standard.

The GT-96300-3656 Active PoE Injector is designed to function with and provide power to any IEEE 802.3at compliant PoE device.

MAIN FEATURES
- Withstands high energy EMI Immunity events without going into latched shutdown state
- Enhanced 36W output power capability
- IEEE 802.3at Detection, 2 Event classification, Disconnect and Overload Protection
- LED User Interface for Power Good and Fault Conditions
- Compliant to PoE+, 10/100/1000 BaseT Data Rates
- Universal Input Power from 100Vac to 240Vac
- Unique Patented Green Design: Compliant to DoE Efficiency level VI requirement
- Full Protection for Over Voltage and Current
- Compact 104 x 54 x 40 mm (w/o MTG Flange)

APPLICATIONS
- VoIP Phones
- VoIP Phone with Video
- Wireless Access Points
- Bluetooth Access Points
- Multi-Band Wireless Access Points
- Network Security Cameras
- Point of Sales
- Industrial Controllers
- Electronic Time Card Readers
- Building Security Systems
- Network Camera with Pan, Tilt and Zoom Features
- Electronic Signs
- RFID Readers
- Motion Sensors
- HVAC Controllers
- Magnetic Card Readers
- PDAs
- Digital Time clock

A) ELECTRICAL SPECIFICATIONS:
INPUT
Input Range: 90-264 Vac (85-264Vac @ 85% of rated output power)
Input Line Frequency: 47-63Hz
Input Current:< 1A RMS @ 90Vac Full Load
Inrush Current: 60A Typical, Cold Start @ 25°C at 230Vac
No load Power: < 100mW
Efficiency: >87.4%, 4 Point Avg efficiency. Typical at Full Load , 230 Vac
Turn on-delay: 1 Second Typical @ 115Vac
Input Line Protection: MOV Transient protected.
Hold-up time: 8ms typical at nominal input voltage and full load
Leakage current: <100uA
Isolation: 3000 VAC

OUTPUT
Number of Ports: One

Data Rates: Compliant to PoE+, 10/100/1000 Mbits/second Ethernet Speed

Power Injection Method: For IEEE 802.3at Midspan, 4&5 for V+ and 7&8 for Common

Port Voltage:    56Vdc nom at pins 4&5 to 7&8

Port Current:     0 to 640mA max for pins 4&5 to 7&8

Port Power:     36W max from pins 4&5 to 7&8

Port Voltage Regulation: Complies with IEEE 802.3at requirements

Port Voltage Ripple: Complies with IEEE 802.3at requirements

Port Voltage Transient Performance: Complies with IEEE 802.3at requirements

Port Overload Protection: Complies with IEEE 802.3at Requirements. Port will shutdown during
overload and auto recover when overload is removed.

Port Short Circuit Protection: Complies with IEEE 802.3at Requirements. Port will shutdown during
short circuit and auto recover when short is removed.

Port Power Disconnection Method: Automatic Disconnect if < 10mA minimum load detected per IEEE 802.3at standard.

User Interface: Green LED Status Indicator, States as Follows:
        No Light: No Powered Device detected at end of ethernet cable
        Flashing at 1.5Hz: Detection (hand-shaking) in-Process, with Powered Device
        Continuous Light: Good Connection with Powered Device
        Flashing at 10Hz: Over Current Condition

ENVIRONMENTAL
Temperature: Operating, -10C to 40C
Storage, -30C to 80C
Humidity: 0% to 95% Relative Humidity, Non-Condensing
Altitude: Operating, Up to 5000M

MECHANICALS / ENCLOSURE
Housing: High impact plastic, 94V0 polycarbonate, non-vented
Markings: Label and/or Pad Printed and/or Molded in the case Dimensions: 104*54*40 mm (w/o MTG Flange)
Weight: 0.35 Lb, 155 gr.
AC Input mechanical options: Desktop C6, C8, C14 or C18 IEC Inlet.
       Hybrid option (Desktop or Changeable Blade Wall Plug-in) Class I or Class II input
Data and Data+Power Connector: Fully Shielded RJ45

D) EMISSIONS and IMMUNITY
Emission: Complies with FCC Class B Part 15, EN55022 Class B
Immunity: Complies with the following;
EN610000-6-2 (Industrial Level Immunity Compliance, extended levels shown in parenthesis)
EN 61000-4-2 ESD (+/-18KV Air, +/-8KV Contact, criteria A) (+/-20KV Air, +/-10KV Contact, criteria B)
EN 61000-4-3 Radiated Immunity
EN 61000-4-4 EFT (+/-2.5KV, criteria A) (+/-4KV, criteria B)
EN 61000-4-5 Surge   (+/-2KV Line-Line, +/-4KV Line to Gnd, criteria A)
EN 61000-4-6 Conducted Susceptibility
EN 61000-4-11 Voltage Dips and Interrupts
EN 61000-3-2 Harmonics, Class A

REGULATORY COMPLIANCE
Compliant Safety Standards: See listings at end of this drawing for specifics

IEEE 802.3at: Product tested per the requirements of IEEE 802.3at

INTEROPERABILITY: Product's interoperability performance verified with various third
party PoE enabled systems. See table below.

SPECIAL OPTIONS
1. Custom Markings
2. Reduced output power rating
3. Compatibility to 24W-30W output power Splitters using Data Link Layer Classification
4. High Rel PCB laminate with Plated through Holes for IPC610 Class 2 Compliance
5. Special Housing Colors
6.48V or 54V Output Voltage, contact factory for availability

User-added image

Derating Curve

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

125*105*43

Individual Box/Gift Box Color

125*105*43

Master Carton Size (mm)

442 x 330 x 275

Gross Weight (kg)

Label Width (mm)

Label Height (mm)

Input Configuration

Description

IEC 60320/C14 AC Inlet Connector, Class I, Earth Ground User-added image

Mates with IEC 60320/C13 Plug

Optional Locking IEC60320 Receptable and cord option available on some models by request.:
User-added image

Standard International IEC 320/C13 Cordsets

Below are standard cordsets which are "not included" (unless stated above); these can be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.

Stock Power Supply Cords

Part Number/ Link	Country	Plug	Termination	Length (mm)	(Ft)
3021457F701(R)	N. American (Type B)	NEMA 5-15P	IEC 320/C13	2150	7
1191068F0701(R)	N. American (Type B)	NEMA 5-15P Hospital	IEC 320/C13	2459	8
2194272M5701-T(R)	Argentina (Type I)	IRAM 2073	IEC 320/C13	2500	8
5502022M5701A(R)	Australian (Type I)	AS3112 / 3 PRONG	IEC 320/C13	2500	8
204B4272M5701(R)	Brazil (Type N)	BRAZIL	IEC 320/C13	2500	8
6023602M5701(R)	China (Type I)	CCC GR2099	IEC 320/C13	2500	8
G8014272M5701(R)	Danish (Type K)	AFSNIT SECTION 107-2-D1	IEC 320/C13	2500	8
23144272M5701-T(R)	Europe (Type E)	CEE 7/7	IEC 320/C13	2500	8
23134272M5701EUKR(R)	Europe/Korea Combo (Type E)	CEE 7/7 / KSC8305	IEC 320/C13	2500	8
205IN4272M5701(R)	India (Type D)	India IS 1293 (also known as IA16A3 or BS546)	IEC 320/C13	2500	8
208IN4272M5701(R)	India (Type M)	India IS 1293 (also known as IA16A3 or BS546)	IEC320/C13	2500	8
377C4272M5701(R)	Israel (Type H)	ISL 377C	IEC 320/C13	2500	8
23024272M5701(R)	Italy (Type L)	CEI 23-16/VII	IEC 320/C13	2500	8
3003068F2701-HK(R)	Japan (Type B)	JIS 8303 / 3 PINS	IEC 320/C13	2500	8
3003339F701(R)	Japan (Type B)	JIS 8303 / 3 PINS	IEC 320/C13	2500	8
302J115J6F0701J(R)	North America / Japan (Type B – 12A)	NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved)	IEC 320/C13	1830	6
302J104J6F0701J(R)	North America / Japan (Type B – 15A)	NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved)	IEC 320/C13	1830	6
302JT104J9F0701JT(R)	North America / Japan / Taiwan (Type B – 15A)	NEMA 5-15P (cULus approved), Japan JIS C 8303 (PSE Approved), Taiwan CNS 6797 (BSMI Approved)	IEC 320/C13	2800	9
2313K3432M5701(R)	Korea (Type F)	KS C 8305	IEC 320/C13	2500	8
5804272M5701(R)	Russia (Type F)	GOST 7396	IEC 320/C13	2500	8
2084272M5701(R)	South Africa (Type M)	South Africa SABS164-1 (16A type)	IEC 320/C13	2500	8
23214272M5701(R)	Switzerland (Type J)	SEV 1011	IEC 320/C13	2500	8
3003322M5701(R)	Taiwan (Type B)	BSMI	IEC 320/C13	2500	8
6363762M5701(R)	Thailand (Type O)	TIS 166-2549	IEC 320/C13	2500	8
PZ0800100-2M5BK13H(R	UK, Hong Kong,Singapore, Gulf States (Type G)	BS 1363A	IEC 320/C13	2500	8
7055002M5701A(R)	International	IEC 320 C14-C13	IEC 320/C13	2500	8

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

Logo	Description
	Information Technology Equipment Safety Part 1: General Requirements (UL 60950-1 Issued: 2007/03/27 Ed: 2 Rev: 2014/10/14) Information Technology Equipment Safety Part 1: General Requirements (CSA C22.2 No. 60950-1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
Patent US9838207B2	Protected by US and international patents, US patent number US9838207B2
	Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT-96300-WWVV-T2(A) R2 (T3,T3A) R3A (48V, 54V, 56V)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	UKCA Certification
LPS	Limited Power Source 62368
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/
	S-Mark Certificate EN 62368-1:2014 + A11 (http://www.intertek.com/marks/s/)
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE	IRAM certificate to IEC 62368-1:2014
	JAPAN TUV R-PSE, Cert. No. JD 50680360 , to J62368-1(2023) , J55032(H29), J3000(H25) ,[30V?60V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
GMA-515496-EA	RCM certificate GMA-515496-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	CE Mark: tested to comply with EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010
No Logo Applicable	IEC 60335-1:2010 (Fifth Edition) incl. Corr. 1:2010 and Corr. 2:2011 + A1:2013
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	Japan: Voluntary Control Council for Interference (VCCI)
No Logo	South Africa approval to SANS IEC 60950
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Bureau Of Indian Standards for GT-96300-T3

GlobTek GT-96300-3656-T3-AP PoE Active Power Injector

4. Key Search Terms

5. Image

Parts Lists

GT-96300-3656-T3-AP Specifications

Stock Power Supply Cords
