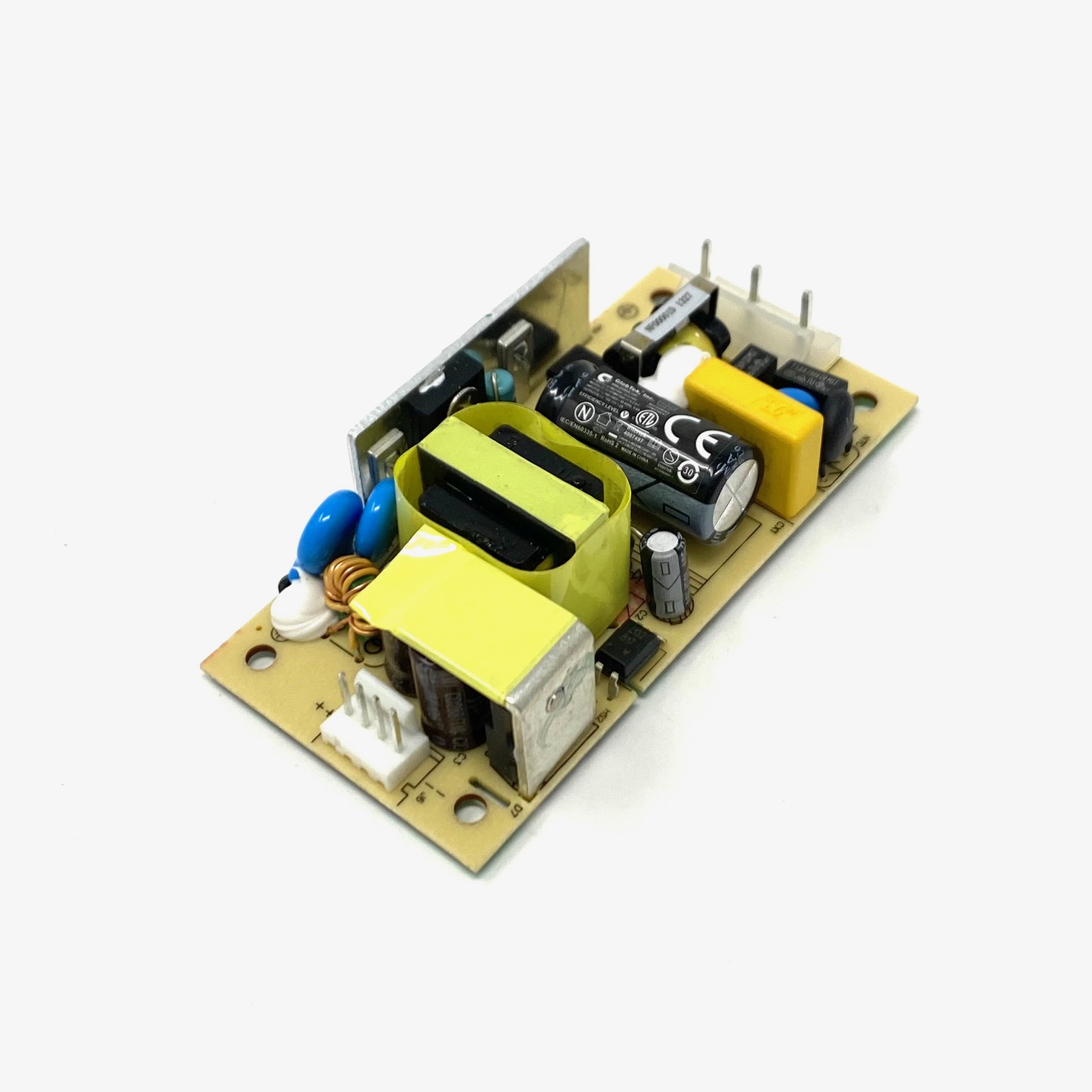

GTM41080-18VV-F Open Frame/Internal Medical Power Supply
| GTM41080-18VV-F | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 | GTM41080-18VV-F, Medical Power Supply, 60601-1-4th Ed. , Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Molex 09-65-2058 5 Position Header Pin 1: Earth, Pin 2: Removed, PIN 3: Neutral, Pin 4: removed, Pin 5: Line, Output Rating: 18 Watts, Power rating with convection cooling (W) , (5-48 Class I)V in 0.1V increments, Approvals: UKCA; CB EN/IEC 60335-1; CB 60601-1; cETLus 60601-1 3rd; RoHS; S-Mark IEC/EN 60601-1; WEEE; Level V; Fuse 60335; Fuse 60335; NEMKO EN/IEC 60335-1; China RoHS; CE; cETLus ES60601; Class I; CB EN/IEC 60335-1; CE; CB 60601-1; CE; | ||||||||
Information | |||||||||
| Model Number | GTM41080-18VV-F | ||||||||
| Agency Documents | http://www.globtek.info/certs/GTM41080/ | ||||||||
| CE EC-Declaration for Medical | https://cs.globtek.info/ec_declaration?id=a0Oa000000C2xQjEAJ | ||||||||
| CE EC-Declaration for Industrial/Commercial/ITE | Contact GlobTek for more information | ||||||||
| CE EC-Declaration for Household | Contact GlobTek for more information | ||||||||
| UKCA-Declaration for Medical | https://cs.globtek.info/ukca_declaration?id=a0Oa000000C2xQjEAJ | ||||||||
| UKCA-Declaration for Industrial/Commercial/ITE | Contact GlobTek for more information | ||||||||
| UKCA-Declaration for Household | Contact GlobTek for more information | ||||||||
| Morocco SDoC Declaration | https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000C2xQjEAJ | ||||||||
| RoHS/RoHS3 Declaration | https://www.globtek.com/pdf/rohs_cert/a0Oa000000C2xQjEAJ | ||||||||
| Prop 65 Statement | https://www.globtek.com/r2/PH7CNf | ||||||||
| REACH Declaration | https://www.globtek.com/r2/eM2co8 | ||||||||
| Conflict Minerals Declaration | https://www.globtek.com/r2/vZY8R5 | ||||||||
Model Parameters | |||||||||
| Type | Open Frame/Internal | ||||||||
| Technology | Regulated Switchmode AC-DC Power Supply AC Adaptor | ||||||||
| Category | Medical Power Supply | ||||||||
| Input Voltage Range (V) | 100-240V~, 50-60 Hz | ||||||||
| Max Input Current (A) | 0.6A | ||||||||
| Max Output Power Rating (W) | 18 | ||||||||
| Output Voltage Range (V) | (5-48 Class I) | ||||||||
| Efficiency | V | ||||||||
| Ingress Protection | IPX0 | ||||||||
| Size (mm) | 84.5*41.5*21.6 | ||||||||
| Enclosure | |||||||||
| 3D File Download | https://www.globtek.com/file/dl/GTM41080-18VV-F.zip | ||||||||
Rating Table | |||||||||
* (Final ordering #/Part No to be defined) | |||||||||
Specifications | |||||||||
| A) ELECTRICAL SPECIFICATIONS: 01. Input Voltage: 100-240 Vac 02. Input Frequency: 47 - 63 Hz 03. Output Regulation: +/- 5% measured at the output connector 04. Line Voltage Regulation: +/- 1% typical measured at full load 05. Output Ripple (Vp-p): +/-1% or 150 mV whichever is greater, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector at nominal line 06. Turn-ON/OFF Overshoot: 5% maximum, 1 mS typical recovery time for 25% to 50% step load 07. Turn-ON Delay: 3000 mS, maximum @ full load, nominal line 08. Hold-Up Time: 8 mS typical @ nominal input voltage and full load 09. Inrush Current: 30A maximum cold start @ 240Vac input 10. Switching Frequency: 65 KHz typical 11. Efficiency: Compliant with Worldwide Level V standards. 12. No Load Standby Power: <0.3 W B) PROTECTION 01. Over-Voltage: Electronically Protected Zener clamp across the output 02. Short Circuit: Electronically Protected unit will auto recover upon removal of fault 04. Input Protection: Input line and neutral fusing C) SAFETY 01. Protection class: Factory configured and labeled as Class I Functional Earth equipment. May be used as Class II equipment by physically removing(cutting) the Functional Earth terminal from the input connector (as provisioned by CB report). May be ordered as Class II with a 2 circuit input connector and double-box marking under an alternate ordering part number. 02. Dielectric Withstand Voltage: 5656Vdc from primary to secondary 03. Earth Leakage Current: <0.25 mA at 240Vac input voltage D) OTHER: 01. MTBF: 200,000 Hours @ 25°C ambient temperature 02. Operating Temperature: 0°C to 40°C ambient temperature 03. Humidity: 0% to 90% relative humidity 04. Storage Temperature: -10°C to 80°C 05. Cooling: Convection E) ENCLOSURE 01. Open Frame 02. Size: 84.5*41.5*21.6 mm +/-1.0 mm (3.3*1.6*0.9 inches) 03. Markings: Label | |||||||||
| Derating Curve | |||||||||
| Qty (ea.)/Carton | 224 | ||||||||
| Individual Box/Gift Box Size (mm) | 30*45*90 | ||||||||
| Individual Box/Gift Box Color | White | ||||||||
| Master Carton Size (mm) | 380 x 250 x 380 | ||||||||
| Gross Weight (kg) | 15.2 | ||||||||
| Label Width (mm) | 25.4 | ||||||||
| Label Height (mm) | 17.8 | ||||||||
Input Configuration | |||||||||
| Description | Molex 09-65-2058 5 Position Header Pin 1: Earth, Pin 2: Removed, PIN 3: Neutral, Pin 4: removed, Pin 5: LineDocument: http://www.molex.com/pdm_docs/sd/009652058_sd.pdf Catalog Page: http://www.molex.com/molex/products/datasheet.jsp?part=active/0009652058_PCB_HEADERS.xml Mates With Part(s): | ||||||||
| Approvals | |||||||||
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice. Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation. | |||||||||
| |||||||||
