Name: GTM91099-60VV-T2
Creator: GlobTek

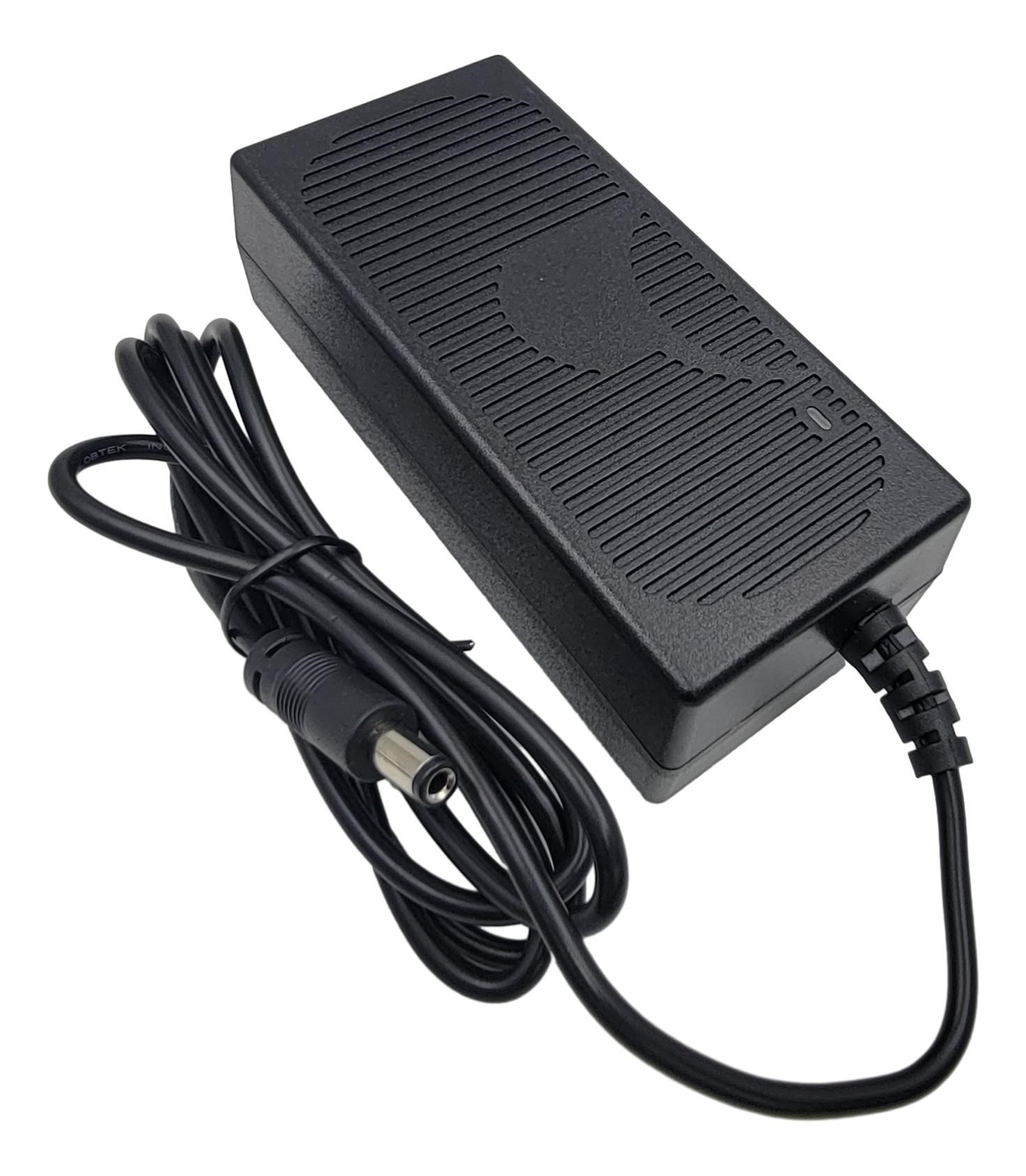

GTM91099-60VV-T2

GTM91099-60VV-T2, Medical/ICT/ITE/Household use Power Supply, 60601-1-4th Ed. , Wall Plug-in+Desktop Combination, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, IEC 60320/C8 AC Inlet connector, Output Rating: 60 Watts, Power rating with convection cooling (W) , 5-48V in 0.1V increments, Approvals: ETL; Korea (16V, 18V, 19V, 20V, 24V Only; UKCA; India BIS 5V, 12V, 13.8V, 15V, 18V, 19V, 20V, 24V, 36V, 48V; Korea (9.1V,10V,11V,12V, 13V,13.8V,14V,15V Only); CB 62368; Conforms to 62368-1; ETL 62368; IEC 61558-1; 61558-1; South Africa; CE; Ukraine; Level V; China RoHS; WEEE; CE; EC; RoHS; VCCI; IEC 60335; Fuse 60335; LPS 60950; Book 60601; Double Insulation; CB 60601-1 2MOPP; RCM; CE; CCC; cRUus; cULus; CB 60950; CB EN/IEC 60335-1; Peru; IRAM; Taiwan BSMI (16V only); SGS (Brazil); Singapore (16V only);Malaysia; Colombia; NOM (16V only); IEC/EN60601-1; IRAM; CE; EAC; S-Mark IEC/EN 60601-1 60950; ETL; CB 61158; South Africa; South Africa; PSE; PSE; PSE; FCC; IP42; 2MOPP; CB 60601-1;

Information

Model Number

GTM91099-60VV-T2

Agency Documents

http://www.globtek.info/certs/GTM91099/

CE EC-Declaration for Medical

https://cs.globtek.info/ec_declaration?id=a0O30000007P7ZeEAK

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0O30000007P7ZeEAK

CE EC-Declaration for Household

https://cs.globtek.info/ec_declaration?id=a0O30000007P7ZeEAK

UKCA-Declaration for Medical

https://cs.globtek.info/ukca_declaration?id=a0O30000007P7ZeEAK

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0O30000007P7ZeEAK

UKCA-Declaration for Household

https://cs.globtek.info/ukca_declaration?id=a0O30000007P7ZeEAK

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O30000007P7ZeEAK

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0O30000007P7ZeEAK

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Wall Plug-in+Desktop Combination

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

Medical/ICT/ITE/Household use Power Supply

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

1.5 A

Max Output Power Rating (W)

Output Voltage Range (V)

5-48

Efficiency

Ingress Protection

IP42

Size (mm)

117.53*53.47*36.6

Enclosure

Units shipped without an installed input plug have a "desktop insert" installed.

User-added image

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)
GTM91099-3009-4.0-T2*	5	6	30
GTM91099-2509-4.0-T2*	5	5	25
GTM91099-3009-4.0-T2*	5	6	30
GTM91099-3009-3.0-T2*	6	5	30
GTM91099-3009-2.5-T2*	6.5	4.6	29.9
GTM91099-3009-1.0-T2*	8	3.75	30
GTM91099-4509-T2*	9	5	45
GTM91099-4509-T2*	9	5	45
GTM91099-6015-3.0-T2*	12	5	60
GTM91099-6015-3.0-T2*	12	5	60
GTM91099-6515-2.4-T2*	12.6	5.15	64.89
GTM91099-6015-1.2-T2*	13.8	4.34	59.89
GTM91099-6015-T2*	15	4	60
GTM91099-6015-T2*	15	4	60
GTM91099-6024-8.0-T2*	16	3.75	60
GTM91099-6024-6.0-T2*	18	3.33	59.94
GTM91099-6019-T2*	19	3.15	59.85
GTM91099-3024-4.0-T2*	20	1.5	30
GTM91099-6024-4.0-T2*	20	3	60
GTM91099-6024-T2*	24	2.5	60
GTM91099-6024-T2*	24	2.5	60
GTM91099-6036-T2*	36	1.66	59.76
GTM91099-6048-18.0-T2*	36	1.66	59.76
GTM91099-6048-12.0-T2*	36	1.66	59.76
GTM91099-6048-T2*	48	1.25	60
GTM91099-6048-T2*	48	1.25	60
GTM91099-4048-T2*	48	0.833	39.98

* (Final ordering #/Part No to be defined)

Specifications

A) ELECTRICAL SPECIFICATIONS:
01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac
02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz
03. Output Regulation: +/- 5% nominal output voltage measured at the output connector at nominal line
04. Line Voltage Regulation: +/- 2% max at full load
05. Output Ripple (Vp-p): +/-1% or 150mV whichever is greather at nominal output voltage. Measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector.
06. Turn-ON/OFF Overshoot: 5% max, 500uS max recovery time for 25% to 50% step load
07. Turn-ON Delay: 2 Seconds, maximum @ full load, nominal line
08. Hold-Up Time: 8 mS at nominal input and full load
09. Inrush Current: 40A max at cold start 120 VAC, 60A max cold start 230VAC
10. Switching Frequency: 100 KHz typical

B) PROTECTION
1. Over-Voltage: Protected, Hiccup with auto recovery
2. Short Circuit: Protected, Hiccup with auto recovery
3. Over-load: Protected, Hiccup with auto recovery
4. Input Protection: Input line and neutral fusing
5. Means of Patient Protection: (2 x MOPP)

C) SAFETY
01. Dielectric Withstand Voltage: 5656Vdc from primary to secondary
02. Touch Current: Maximum allowed values: 100uA NC(Normal condition) 500uA SFC(single fault condition)
03. Means of Protection: 2 x MOPP
04. Primary to Secondary Bridging Capacitor: (2) * Y1 type capacitors in series

D) OTHER:
1. MTBF: 200,000 Hours @ 25°C ambient temperature
2. Operating Temperature: 0°C to 40°C ambient temperature
3. Humidity: 0% to 90% relative humidity
4. Storage Temperature: -10°C to 80°C
5. Cooling: Convection

E) ENCLOSURE
1. Housing: High impact plastic, 94V0 polycarbonate, non-vented
2. Size: 117.53*53.47*36.6 mm +/- 1.0
3. Markings: Label and/or Pad Printed and/or Molded into Case
4. LED: Standard Green color to indicate power on

Derating Curve

Note:
@ 15W UL certified to +70C for GTM91099-3009-4.0 only

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

142*62*60

Individual Box/Gift Box Color

142*62*60

Master Carton Size (mm)

442 x 330 x 275

Gross Weight (kg)

15.2

Label Width (mm)

44.5

Label Height (mm)

49.5

Input Configuration

Description

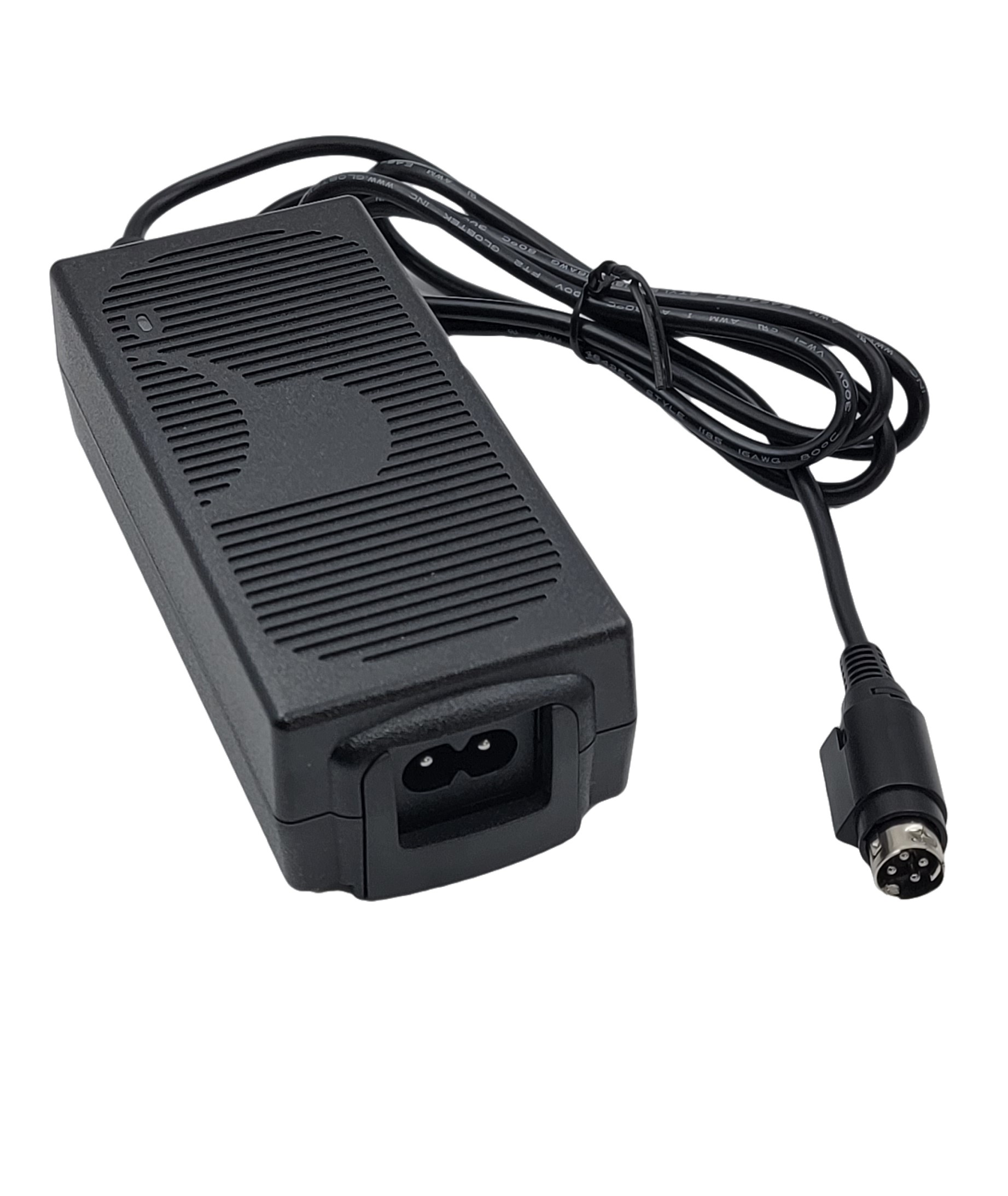

IEC 60320/C8 AC Inlet connectorBlade Insertion Instructions
R-Blade Style Instruction Video

User-added image

Mates with IEC 60320/C8 Plug

This series of Interchangeable Blade products may be used with Proprietary Interchangeable Blades as described below or with standard international power cords.

Optional INPUT BLADES: R-Socket: below are available blades configurations which are "not included" (unless stated above); may be purchased separately, packaged with power supply, or as a separate "R-KIT" if specified

#	Part Number	Main Country/Region	Plug	IECEE Type
1	R-NA-2(R)	North America, Japan	Nema 1-15P	Type A
2	R-SAA-2(R)	Australia/New Zealand	AS/NZ 3112	Type I
3	R-UK-2(R)	United Kingdom/Ireland	UK, Hong Kong, Singapore, Gulf States	Type G
4	R-EU-2(R)	Europe	CEE 7/16	Type C
5	R-CN-2(R)	China	GB 2099	Type A
6	461-03030003(R)	N/A	R-DI(R) Desktop Insert for use with a cord	N/A
7	R-KIT-2(R)	prepackaged kit	1,2,3,4 above	N/A
8	R-KIT-2-INTL(R)	prepackaged kit	2,3,4 above	N/A

Standard Cordsets
Below are standard cordsets which are "not included" (unless stated above); these may be purchased separately or packaged with the power supply. Contact your Sales Engineer if the style required is not shown below. Many more available in different lengths, colors or cable material.

Standard International IEC 320/C7 Cordsets

Part Number	Country	Plug	Connector	Length (mm)	Length (feet)
2094112M703(R)	Argentina (Type I)	IRAM 2063	IEC 320/C7	2000	7
5014112M703A(R)	Australian (Type I)	AS 3112	IEC 320/C7	2000	7
207B4111M8703(R)	Brazil (Type N)	NBR14136	IEC 320/C7	1800	6
4533501M8703(R)	China (Type A)	GB 2099.1	IEC 320/C7	1830	6
2074112M703A(R)	European (Type C)	CEE 7/16	IEC 320/C7	2000	7
2084111M8703(R)	South Africa (Type M)	BS 546	IEC 320/C7	1800	6
2084111M8703B(R)	India (Type D)	ISI:1293	IEC 320/C7	1800	6
2714111M8703A(R)	India (Type C)	ISI:1293	IEC 320/C7	1800	6
451J3401M8703(R)	Japan (Type A)	JIS 8303	IEC 320/C7	1830	6
2044112M703A(R)	Korea (Type C)	KS C8305	IEC 320/C7	2000	7
4511116F703A(R)	N. American (Type A)	NEMA 1-15P	IEC 320/C7	1830	6
4033401M8703A(R)	Taiwan (Type A)	CNS690	IEC 320/C7	1830	6
6104112M703A(R)	UK, Hong Kong, Singapore, Gulf States (Type G)	BS1363	IEC 320/C7	2000	7

Output Configuration

Common output connector options:
Click to add to your request.


L Type (Coaxial 5.5x2.5mm plug)	C Type (Coaxial 5.5x2.1mm plug)	K Type (Coaxial 3.5x1.3mm plug)	LL Type (5.5x2.5mm Locking 760k type)	CL Type (5.5x2.1mm Locking S761k type)	Magnetic Connector

YL3 Type (KPPX-3P)	YL4 Type (KPPX-4P)	EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)	MSB Type (Micro USB)	Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

Logo	Description
Medical 4th Ed.	EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
	Information Technology Equipment Safety Part 1: General Requirements (UL 60950-1 Issued: 2007/03/27 Ed: 2 Rev: 2014/10/14)
	Korea HU10499-18034A GTM91099-6024-8.0-T2 (16V, 18V, 19V, 20V, 24V Only)
	UKCA Certification
	INDIA BIS (GTM91099-T2) 5V, 12V, 13.8V, 15V, 18V, 19V, 20V, 24V, 36V, 48V only
	Korea HU10499-21045A GTM91099-6015-T2(A) (9.1V,10V,11V,12V, 13V,13.8V,14V,15V)
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Transformer Symbol IEC 61558-1 SMPS Switch Mode Power supply
	Transformer Symbol IEC 61558-1 SMPS Short-Circuit –Proof Safety Isolating Transformer
No Logo	South Africa approval to SANS IEC 60950
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Japan: Voluntary Control Council for Interference (VCCI)
	Book 60335 up to 36 Volts
	IEC/EN60335-1 Up to 36 volts
LPS	Limited Power Source 60950
	60601-1 3rd Operating Instructions

No Logo Applicable	CB report IEC 60601-1: 2005 + CORR. 1 (2006) + CORR. 2 (2007) and or EN 60601-1:2006 3rd Edition 2xMOPP
	Indoor Use Only - Mark is on the label or Molded in the case
	RCM N136; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification Class II CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15 B
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	Serial Number Information
No Logo	EC-Conformity Declaration: http://www.globtek.com/html/iso_certificates/EC-DECLARATION.pdf, REACH 144 SVHC: http://www.globtek.com/html/iso_certificates/Reach144.pdf
	CE Mark: tested to comply with Additional EN610006-1:2007, EN610006-2:2005 EN61000-6-3:2007+A1:2011 EN61000-6-4:2007+A1:2011
	cRUus UL Recognized Component E172861 3rd Edition w-RM ANSI-AAMI ES60601-1 (2005 + C1:09 + A2:10) and CAN-CSA-C22.2 No. 60601-1 (2008)
	UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)
No Logo	CB Certificate IEC 60950-1:2005 (2nd Edition), Am 1: 2009, CB report IEC 60950-1:2005 (2nd Edition), Am 1: 2009 and EN 60950-1:2006 + Am 1:2010 + Am 11:2009 + Am 12:2011
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	CCC to GB4943.1-2011 GB9254-2008 GB17625.1-2012
No Logo	Peru MTC GTM91099-T2 No logo
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE	IRAM certificate DC-E-G71-001.7 to IEC 60950 + A1:2009
R32282 RoHS (Pb)	BSMI Taiwan GTM91099-6024-8.0-T2 (16V only); CNS143361-1 (99) CNS13438 (95) http://www.bsmi.gov.tw/wSite/ct?xItem=4072&ctNode=816&mp=2
	DoC (Brazil) to IEC 60950-1_2005 + A1_2009 +A2_2013 (5 - 48 Volts)
	Singapore GTM91099-6024-8.0-T2 ICE 60950-1:2005 + 2009 +A2:2013 (16V only)
No Logo	Malaysia ST Release Letter GTM91099T2 -T3A IEC62368-1:2018 No logo
No Logo	Colombia GTM91099-T2 No logo
	NOM (Mexico) to NOM-001-SCFI-1993 GTM91099-6024-8.0-T2 for 16V only
	Certification # TC RU AR46.B.75423 Custom Union of Russia, Belarus and Kazakhstan
	IEC/EN60601-1
DC-E-G71-010.2 PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE	IRAM certificate GTM96600 GTM91099 T2(A) R2 to IEC 62368-1:2014
	Semko S-Mark-Cert-EN60601-1 and EN60950-1
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
No Logo Applicable	IEC 61558-1:2005+A1, IEC 61558-2-16:2009+A1
	Medical Electrical Equipment – Part 1: General Requirement for Basic safety Essential Performance (AAMI ES60601-1:2005+A1) Medical Electrical Equipment – Part 1: General Requirement for Basic safety Essential Performance (CSA C22 2#60601-1:2014 Ed.3)
No Logo	12
No Logo	12
	JAPAN TUV R-PSE, Cert. No. JD 50313287, to J60950-1(H26) , J55022(H22),J3000(H25)[DC15?30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
	JAPAN TUV R-PSE, Cert. No. JD 50469658, to J62368-1(H30) , J55032(H29),J3000(H25)[15V or less]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
	JAPAN TUV R-PSE, Cert. No. JD 50313287, to J60950-1(H26) , J55022(H22),J3000(H25)[DC30?60V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
	FCC PART 15B Report STR14078169E-3
IP42	Ingress Protection: ?IP42 to IEC60529:2001 Protection against granular foreign bodies - Protected against direct sprays up to 15o from the vertical Optional
2MOPP	2 x MOPP (Means of Patient Protection) marked with 2MOPP near model name
No Logo Applicable	IEC 60601-1: 2005 + C1 + C2 + A1
