GT-46180-18VV-x.x-Q
18 W, DoE Level VI & CoC V5 Tier 2 Efficiency, Interchangeable Input Blades, Wall Plug Adapter, Ac-Dc Power Supply18 W, DoE Level VI & CoC V5 Tier 2 Efficiency, Interchangeable Input Blades, Wall Plug Adapter, Ac-Dc Power Supply
Information
Model NumberGT-46180-18VV-x.x-Q
Agency Documentshttp://www.globtek.info/certs/GT-46180-18VV-X.X/
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0Oa000000MFCdnEAH
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0Oa000000MFCdnEAH
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000MFCdnEAH
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0Oa000000MFCdnEAH
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeWall Plug-in
TechnologyRegulated Switchmode AC-DC Power Supply AC Adaptor
CategoryICT/ITE Power Supply
Input Voltage Range (V)100-240V~, 50-60 Hz
Max Input Current (A)0.6 A
Max Output Power Rating (W)18
Output Voltage Range (V)5-24
EfficiencyUSA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 / Europe Code of Conduct on Energy Efficiency of External Power Supplies - Version 5
Ingress ProtectionIndoor Use
Size (mm)74*43.5*36.8
EnclosureUser-added image


3D File Downloadhttps://www.globtek.com/dl/GT-46180-18VV-xx-Q.stp
Rating Table
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GT-46180-1505*5315
GT-46180-1105*52.211
GT-46180-1305*52.613
GT-46180-1005*5210
GT-46180-1605*53.216
GT-46180-1609-3.8*5.2315.6
GT-46180-1509-3.05*5.952.514.88
GT-46180-1809-3.05*5.953.0217.97
GT-46180-1509-2.0*72.1414.98
Singapore 191052-12 GT-46180-1509-1.5 (7.5V)*7.5215
GT-46180-1509-1.5*7.5215
GT-46180-1509-1.0*81.87515
GT-46180-1509*91.6614.94
GT-46180-1809*9218
GT-46180-1812-2.7*9.31.9418.04
GT-46180-1812-2.5*9.51.8917.96
GT-46180-1005*10220
GT-46180-1812-2.0*101.818
GT-46180-1812-1.0*111.63618
GT-46180-1212*12112
GT-46180-1812*121.518
GT-46180-1815-2.0*131.38518.01
GT-46180-1815-1.0*141.28517.99
GT-46180-1815*151.218
GT-46180-1818-2.0*161.12518
GT-46180-1818-1.0*171.05918
GT-46180-1818*18118
GT-46180-1820-1.0*190.94717.99
GT-46180-1824-4.0*200.918
GT-46180-1824-3.0*210.85718
GT-46180-1824-2.0*220.81818
GT-46180-1824-1.0*230.78217.99
GT-46180-1824*240.7518
* (Final ordering #/Part No to be defined)
Specifications
A) ELECTRICAL SPECIFICATIONS:
01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac
        (85-264Vac range @ 85% of rated load)
02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz
03. Inrush Current: No damage. On power when switching on/off repeatedly under any condition.
04. Average Efficiency: 85% Min (CEC & DOE LEVEL VI Compliant), 85.45% Min (ErP European Commission's Ecodesign Directive (2005/32/EC) / CoC Tier 2 Compliant)
05. Input power(no load): <0.1W (CEC & DOE LEVEL VI Compliant), <0.075W (ErP European Commission's Ecodesign Directive (2005/32/EC) / CoC Tier 2 Compliant)
06. Output Voltage toterance: ±5%
07. Line regulation: ± 1%
08. Output Voltage: Tolerance ± 5%
09. Turn On Delay: 3000 mS MAX at 115 VAC Full Load
10. Hold Up Time: 10 mS Min at 100 VAC Full Load
11. Ripple Voltage: +/-1% or 150 mV whichever is greater, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector at nominal line.

B) PROTECTION
01. Over voltage protection: Output shut down and auto restart
02. Short circuit protection: Output shut down and auto restart
03.Over Load Protection: Output shut down and auto restart

C) SAFETY
01. HI-POT : Input to output : 3000VAC or 4242VDC 10mA 1 minute
02. Touch current: <0.25mA
03. ESD: Contact discharges 8kV, Air discharges 15 kV
04. Fast transients/bursts: 4 kV

D) OTHER:
01. MTBF: 200,000 Hours @ 25°C ambient temperature
02. Operating Temperature: 0°C to 40°C ambient temperature
03. Humidity Operating : 20% to 80%. 0% to 90% relative humidity
04. Elevation up to 4000 m
05. Storage Temperature: -10°C to 70°C
Humidity Storage: 10% to 90%
06. RoHS: Complies with EU 2015/863  and China SJ/T11363-2014

E) ENCLOSURE
01. Housing: High impact plastic, 94V0 polycarbonate, non-vented
02. Size: 74.0 x 43.5 x 34.0 +/-1.0 mm
03. Weight : 68.5 g
04. Markings: Label and/or Pad Printed and/or Molded in the case
Derating CurveUser-added image


Qty (ea.)/Carton80
Individual Box/Gift Box Size (mm)90.5*73*53
Individual Box/Gift Box Color90.5*73*53
Master Carton Size (mm)520 x 370 x 205
Gross Weight (kg)8.4
Label Width (mm)29.8
Label Height (mm)20.8
Input Configuration
DescriptionBlade Options for Q Series Wall Plug-in Power SuppliesData Sheet: http://en.globtek.com/interchangeable-blades.php
Insertion Instructions: http://www.globtek.com/pdf/Instructions-Interchangeable-Blades.pdf
Video: Q-Blade Style Instruction Video

User-added image


INPUT CONNECTOR: Q-Socket (below are available blades configurations which are "not included" (unless stated above); can be purchased separately, package with power supply or as a separate "Q-KIT" if specified

01. United States / Canada / Japan  NEMA 1-15P/ IEC PLUG Type A [WORKS IN PLUG B] configuration: NA 2 blades, Class II; US/CA/JP P/N: Q-NA(R)
02. Australian AS 3112 configuration: SAA 2 blade/ IEC TYPE I, Class II; AU P/N: Q-SAA(R)
03. UK BS 1363 configuration: UK 3 blade with dummy Ground/ IEC TYPE G, Class II; GB P/N: Q-UK(R)
04. European CEE 7/16 configuration: Europlug 2 pins/ IEC TYPE C [WORKS IN TYPE E&F], Class II; EU P/N: Q-EU(R)
05. Korean KS C8305 configuration: 2 pins/SIMILAR TO IEC TYPE C, Class II; KR P/N: Q-KR(R)
06. Argentina IRAM 2073 configuration: 2 blades/SIMILAR TO IEC TYPE I; AR P/N: Class II Q-AR(R)
07. China GB 2099 configuration: 2 blades/SIMILAR TO TYPE A, Class II; CN P/N:Q-CN(R)
08. India IS 1293 6A/BS546 configuration: 5A, 3 pins with Dummy Ground, Class II/IEC TYPE D; IN P/N: Q-IN(R)
09. IEC60320/C18 Inlet, Class II; P/N: Q-C18(R)
10. Brazilian NBR6147 configuration: 2 pins, Class II;SIMILAR TO IEC TYPE C BR P/N: Q-BR(R)
11. South Africa SABS164-1 and India  IS 1293, IS694, 16A type plug, 3 round prongs, Class II + dummy ground, IEC TYPE M P/N: Q-SANS164-1-16A(R)
12. South Africa SABS164-4, 3 round prongs with a notched prong @ 0º, Class II + dummy ground, IEC TYPE M Red, P/N:
Q-SANS164-4C-16A(R)
13. South Africa SABS164-4, 3 round prongs with a notched prong @ -53º, Class II + dummy ground, Blue, IEC TYPE M, P/N:
Q-SANS164-4L-16A(R)
14. South Africa SABS164-4, 3 round prongs with a notched prong @ +53º, Class II + dummy ground, Black,IEC TYPE M P/N:
Q-SANS164-4R-16A(R)

Kits

01. Q-KIT: 1,2,3,4 above
02. Q-KIT-INTL: 2,3,4 above
03. Q-KIT-6: 1,2,3,4,5,6 above
04. Q-KIT-7: 1,2,3,4,5,6,7 above
05. Q-KIT-8: 1,2,3,4,5,6,7,8 above

Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)
Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription

No Logo Applicable

CB for IEC 62368-1:2014 (Second Edition)

User-added image		Saudi Arabia approval to IEC 60950:1-2005
No Logo ApplicableEU 230V CoC Tier 2, 278/2009, Mar 2014
User-added image  Declaration ДС № ЕАЭС N RU Д-US.КА01.В.10453_19 Custom Union of Russia, Belarus and Kazakhstan http://www.globtek.com/redirect/?loc=gost-certificate-eac-declaration
User-added image
 		NOM (Mexico) to NOM-001-SCFI-1993 for GT-46180-1812-Q (12 Volts only)
No logo
 		Peru approval to IEC 60950:1-2005 No logo
User-added imageElectric strength Of Israel Standard SI 60950 Part 1 ? Safety of information technology equipment: General requirements, Feb. 2012. (12 Volts Only)
 No LogoSOUTH AFRICAN EMI/EMC for GT-46180
User-added imageUKCA Certification
User-added imageUL 62368-1 and CAN/CSA C22.2 No. 62368-1-14
User-added image

 		RCM certificate SAA-SAA-202775-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
Natural Resources Canada (NRCan): CSA Standard C381.1-08, QSP NRCAN EEV1191; http://shop.csa.ca/en/canada/energy-efficiency/cancsa-c3811-08/invt/27024802008
No LogoGreenhouse and Energy Minimum Standards (GEMS) for model GT-46180-1812 Registration No APS3847
Conforms to UL STD. 62368-1
Certified to CSA STD C22.2 NO.62368-1		Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
User-added image
 		Morocco approval to IEC 60950:1-2005 No logo
LPSLimited Power Source 62368
User-added image
 		Morocco SDoC declaration http://www.globtek.info/certs/Morocco%20SDoC%20Declaration/
User-added image
 		NOM (Mexico) to NOM-001-SCFI-1993 for GT-46180-1605-Q (5 Volts only) pending
 User-added image
   R37924
    RoHS		Taiwan BSMI R37924 5V-15V for GT-46180
No Logo Malaysia ST Release Letter GT-46180 IEC60950-1:2005 (ED.2) + A1:2009 + A2:2013, No logo
User-added image
仅适用于海拔5000 米及以下		GB 17625.1-2022（A 类）; GB 4943.1-2022;GB/T 9254.1-2021 Tropical <5000 for GT-46180
User-added image  Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
User-added image  CE Mark: tested to comply with IEC 61000-4-2:2008 ED.2.0 IEC 61000-4-2:2008 ED.2.0 IEC 61000-4-3:2010 ED.3.2 IEC 61000-4-3:2010 ED.3.2IEC 61000-4-4:2012 ED.3.0 IEC 61; EMI: Complies with CISPR 22:2008, Class B AS/NZS CISPR 22:2009 +A1:2010,Class BIEC 610
IP40Ingress Protection: ?IP40 to IEC60529:2001 Protection against granular foreign bodies (with I/P cord)
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
 User-added image
 		Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPSLimited Power Source 60950
User-added image
User-added imageJAPAN TUV Rheinland-PSE GlobTek Inc to J60950-1(H26) , J55022(H22),J3000(H25).Please follow the procedure listed in the following link for proper import to Japan: https://www.globtek.com/r2/Szj4Vb
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
No Logo CB Certificate IEC 60950-1:2005 2nd Edition + A1:2009 +A2:2013 Report to EN 60950-1:2006 +A11:2009 +A1:2010 + A12:2011 +A2:2013 For 5V-24V only
User-added image
 		Korea KC Mark GT-46180-18VV-x.x-Q HU10499-16024A (9V, 12V, 15V Only)
User-added image7.5

User-added image
 		Bureau Of Indian Standards for GT-46180-1812 (12V only)
User-added imageCompliance of this power supply with FCC Part 15, Class B has been demonstrated with a standard output load. The FCC law stipulates that system-level testing is required to demonstrate compliance with the FCC emission limits with the actual system load.

User-added image		Korea KC GT-46180 HU10499-16025A (5V, 6V, 7V, 7.5V Only)
User-added imageUL60950-1, cULus to UL 60950-1 E170507
User-added image
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE
 		IRAM certificate DC-E-G71-001.11 to IEC 60950 -1:2005+ A1:2009 + A2:2013
User-added imageSingapore GT-46180-1812 ICE 60950-1:2005 + A1:2009 +A2:2013 220214-24 (12V only)
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50471561, to J62368-1(H30) , J55032(H29), J3000(H25) ,[15V or less]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50471561.pdf, to J62368-1(H30) , J55032(H29), J3000(H25) ,[15V?30V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50471561, to J62368-1(H30) , J55032(H29), J3000(H25) ,[30V?60V]. Please reference the following website for PSE regulations: https://www.globtek.com/r2/Szj4Vb
CAN ICES-3(B)/NMB-3(B)
Compliance of this PSU with Industry Canada, Class B demonstrated with a standard output load. The ICES law stipulates that system-level testing is required to demonstrate compliance with the ICES-3 emission limits with the actual system load.
 No LogoSouth Africa approval NRCS

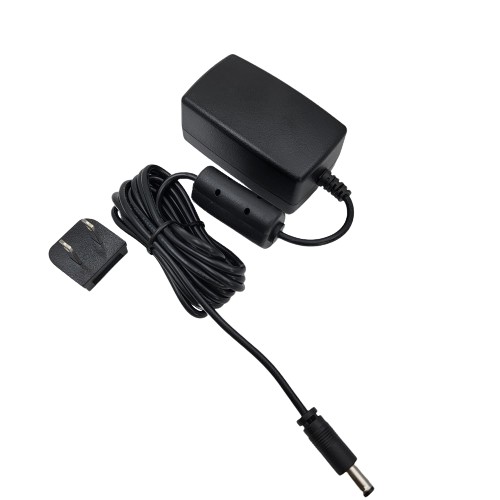

Popular Products (Stock items)
SKUVolts OutCurrent Out (Amps)ConnectorRFQSample RequestDistributor Stock (Click to order)
215944
238600
264555
2663050.00.0
488325
12311145.03.2
13233285.03.0
14392315.02.6
15925775.02.0
16179605.03.2
19511725.03.0
24078295.03.2
24745915.03.0
23135435.03.0
25432755.03.2
2018215.03.2
2018235.03.0
2026535.02.6
2026545.02.6
2030805.03.0
2042735.03.0
2148675.02.6
1999045.02.2
2177495.03.0
2450095.03.0
2480845.03.2
2484395.03.2
2503875.03.0
2505795.02.6
2624735.03.2
2753125.03.2
WR9QA3200LCPNA-N(R6B5.03.2525

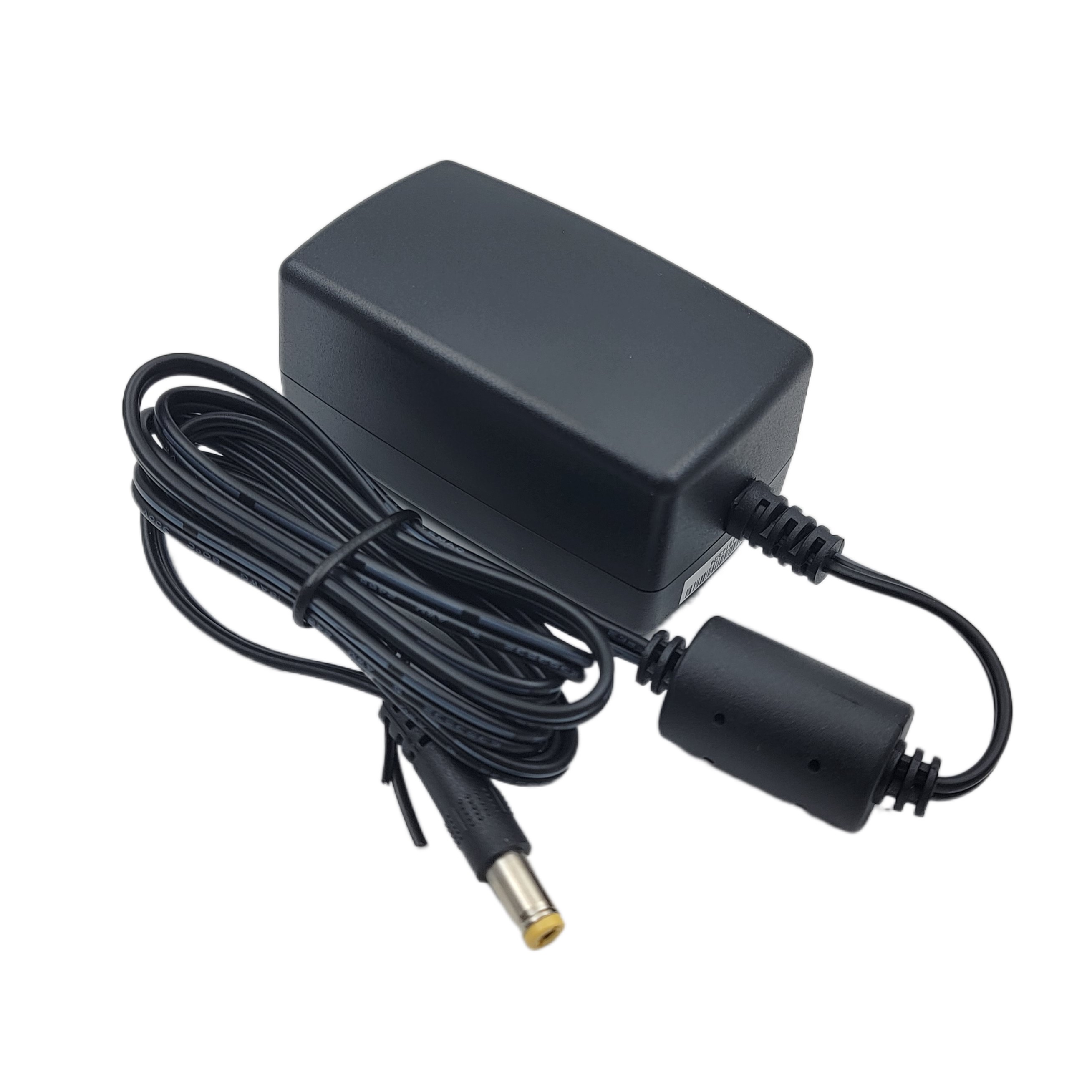

WR9QA3200CCPNA-N(R6B5.03.2188
3602595.02.0
3924335.03.0
3950565.02.6
2645605.03.2
2645625.02.6
3975355.03.0
4165295.03.2
31773685.03.2
2012175.03.2
2012155.03.0
2012185.03.0
2012195.03.2
2135215.02.6
2254145.02.6
2254155.02.6
2267285.02.0
2289875.02.6
2289855.03.2
2370975.03.0
2374655.02.6
4236065.03.0
5736025.02.6
6081185.03.2
16047605.02.0
26389845.03.2
26083435.02.2
17048765.03.2
25031985.03.2
19631375.03.0
21598365.03.2
18147795.953.0
WR9QB3000LCP-N(R6B)5.953.0537
2644765.953.02
2232615.953.0
2014966.03.0
3876366.03.0
2012266.03.0
2375956.03.0
1375806.01.5
2103696.52.8
2379847.02.14
2001787.02.14
25755017.52.0
2183767.52.0
2460787.52.1
3246947.52.0
2302937.52.0
2372397.52.0
2058389.02.0
2058399.02.0
WR9QD2000LCP-N(R6B)9.02.0274
2389789.02.0
2435949.02.0
2506709.02.0
2538419.02.0
2644949.02.0
45158269.02.0
2012029.02.0
2138019.01.66
2252869.01.66
2257439.01.7
46336539.51.89
27567011.01.63
299070312.01.5
26313312.01.5

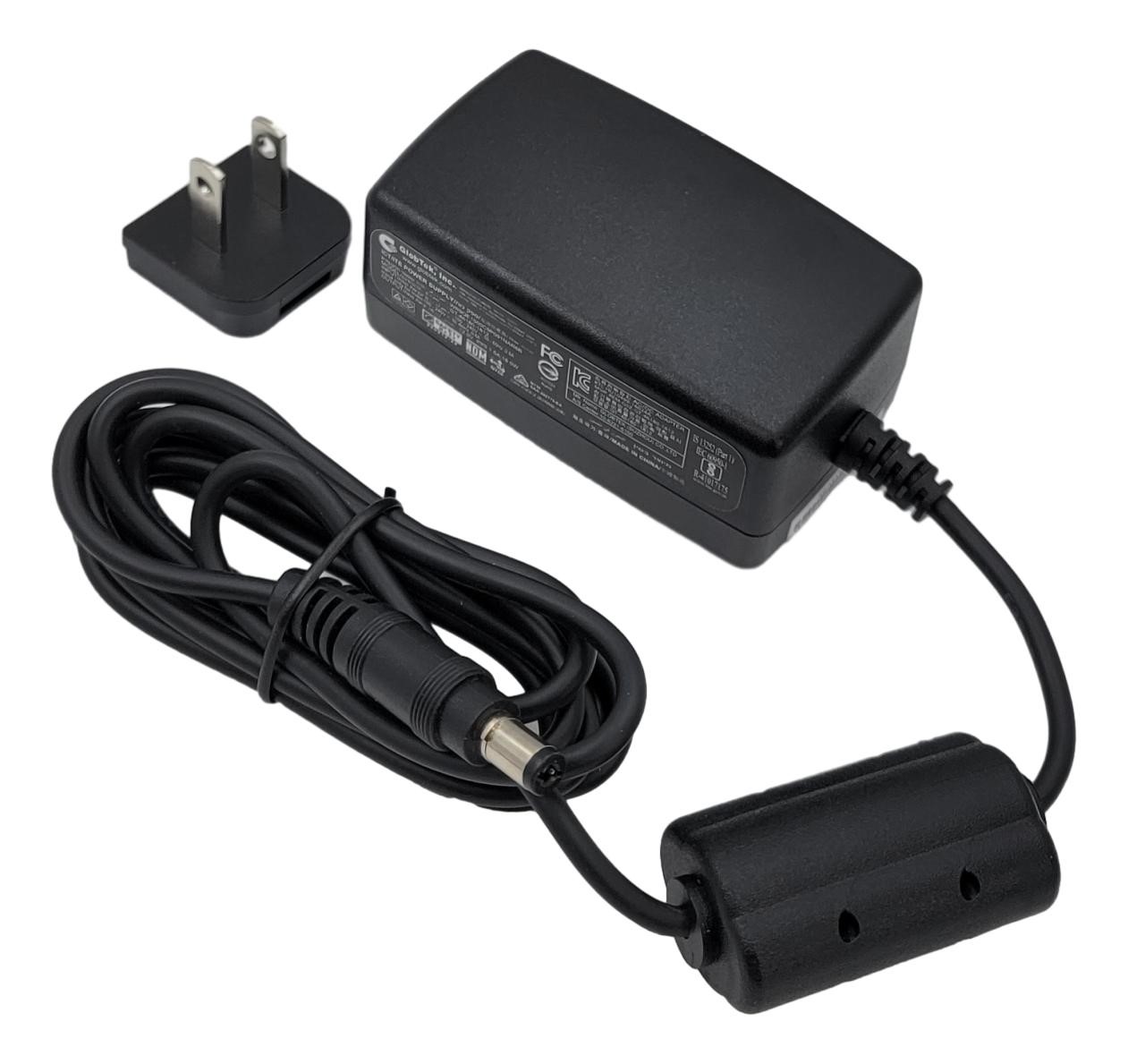

WR9QE1500C2LWPN(R6B)12.01.555
93169912.01.5
98705812.01.5
132514912.01.5
148247312.01.5
148830312.01.5
275261112.01.5
169563312.01.5
175246712.01.5
236318612.01.5
184523612.01.5
188507512.01.5
215323612.01.5
228021112.01.5
280343312.01.5
21421012.01.5
229737212.01.5
20248112.01.5
20248212.01.5
20264512.01.5
20264612.01.5
20284312.01.5
20973112.01.5
21381012.01.5
20534812.01.5
20560712.01.5
19975412.01.5
19977312.01.5
19977812.01.5
WR9QE1500CCP-N(R6B)12.01.531
19994512.01.5
19997412.01.5
24080012.01.5
24080212.01.5
21875612.01.5
22113912.01.5
24312612.01.5
24359912.01.5
26100712.01.5
36781012.01.5
38099912.01.5
35902912.01.5
36125812.01.5
36125912.01.5
36139312.01.5
39475112.01.5
39481512.01.5
39746312.01.5
26454912.01.5
41157412.01.5
40427512.01.5
40514012.01.5
41698712.01.5
41888212.01.5
41921512.01.5
41980612.01.5
42271712.01.5
285742712.01.5
326423012.01.5
22370212.01.5
22624312.01.5
22629912.01.5
22993612.01.5
23197012.01.5
23291312.01.5
23291412.01.5
23322012.01.5

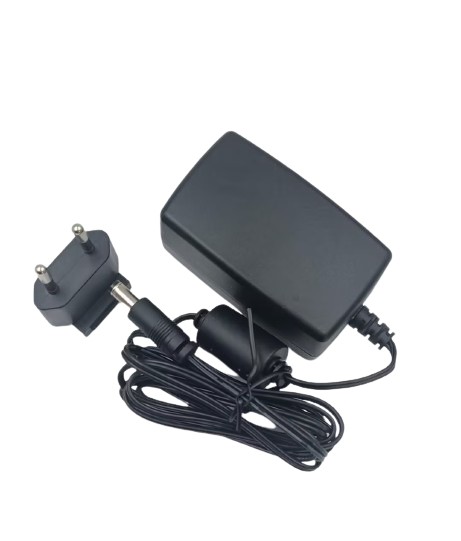

WR9QE1500LCPNEU(R6B)12.01.589
23514912.01.5
50670112.01.5
74662012.01.5
165705012.01.5
236318512.01.5
217806412.01.5
160394415.01.2
20539115.01.2
21544515.01.2
21548115.01.2
20539515.00.5
20539715.01.2
27536715.01.2
WR9QG1200LCP-N(R6B)15.01.257
184996318.01.0
22110418.01.0
22145818.01.0
25777418.01.0
WR9QH1000LCP-N(R6B)18.01.0148
23514518.01.0
57158018.01.0
WR9QZ900LCP-N(R6B)20.00.9275
73082324.00.75
20264724.00.75
20264824.00.75
20265124.00.75
20265024.00.75
20265224.00.75
21594524.00.8
36880624.00.8
35903024.00.75
WR9QI750CCPNNAR6B24.00.7568

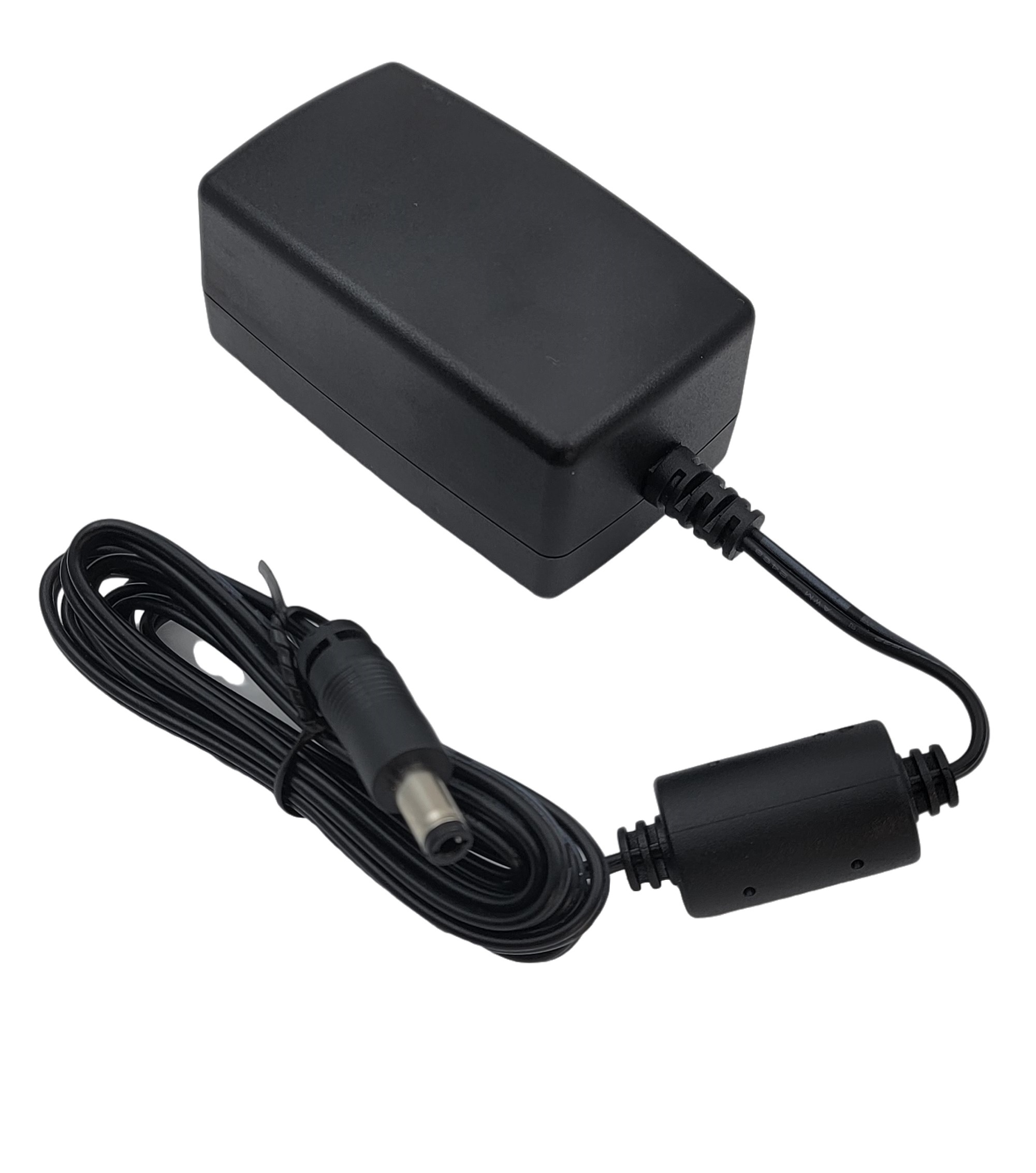

WR9QI750LCP-N(R6B)24.00.75259
22540924.00.75
22541124.00.75
22629624.00.75
22896624.00.8
23078424.00.75
23474124.00.75
15079424.00.75
15079524.00.75
21797948.00.375
20226948.00.375
21354248.00.375
21354348.00.375
