GT-96180 Patented Power Over Ethernet (POE) Injectors
GlobTek’s 18W Power over Ethernet Injectors offers a cost effective and reliable solution for remote powering of specialized non-standard Ethernet Powered Devices over existing network infrastructure. These Injectors are configured to provide 18 watts of power over two pairs (4,5 + and 7,8 -) per IEEE 802.3 defined wires. When the load device is connected, GlobTek’s Passive PoE Injector will immediately source power to the Powered Device
GlobTek’s 56V Passive PoE Injectors are designed to function with and provide power to any IEEE 802.3af or 802.3at PoE device.
For specialized applications Globtek can also provide lower output voltage models between 18V and 54V with reduced circuit complexity, these are referred to as our Simple Power over Ethernet Injector products.
Features:
- Cost Effective Passive PoE, supplies continuous power without requiring handshaking communications
- Output can source up to 18W at 18V, 24V, 36V, 48V, 54V or 56V
- Withstands high energy EMI Immunity events without going into latched shutdown state
- Short Circuit and Overload Protection protects Ethernet cabling if Splitter has a Short Circuit
- Green LED Indicates Output Power Availability
- Passive PoE models can transfer 10/100/1000 BaseT Data Rates (Gigabit compatible)
- Simple, Low Cost PoE models can transfer 10/100 BaseT Data Rates
- Universal Input Power from 100Vac to 240Vac
- Green Design: Compliant to DoE Efficiency level VI requirement
- Full Protection for Over Voltage and Current
- Compact 104 x 54 x 40 mm (w/o MTG Flange)
- Standards: 60335-1; 60950-1; 62368-1
- Approvals: CB, CCC, CE, EAC, ETL, PSE, RCM, S-Mark, UkrSEPRO, VCCI, RCM
Applications:
- Custom Ethernet Power Distribution Architecture
- Network Security Cameras
- Point of Sales
- Industrial Controllers
- Electronic Time Card Readers
- Building Security Systems
- Network Camera with Pan, Tilt and Zoom Features
- Electronic Signs
- RFID Readers
- Motion Sensors
- HVAC Controllers
- Magnetic Card Readers
- Digital Time clock
GT-83083-0505-USB-W2E Specifications
| GT-83083-0505-USB-W2E | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

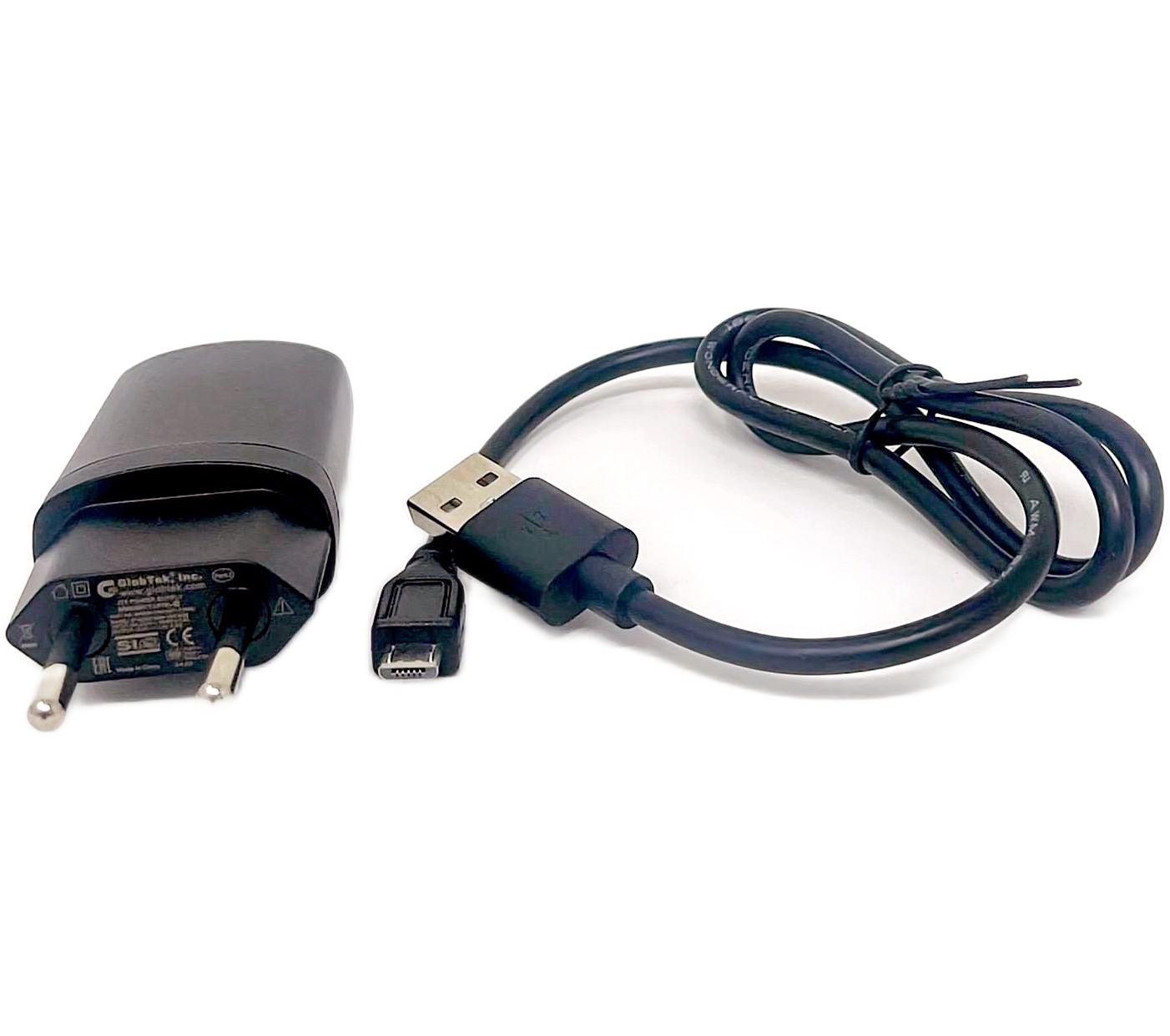

 | GT-83083-0505-USB-W2E, ICT/ITE Power Supply, Wall Plug-in, AC/DC Switching Adapter with USB Power Supply AC Adaptor, , Input Rating: 100-240V ̴ , 50/60Hz, European CEE 7/16 configuration:EN 50075 Europlug 2 PIN, Output Rating: 5 Watts, Power rating with convection cooling (W) , 5V in 0.1V increments, Approvals: China RoHS; Morocco; CB 62368; LPS 62368; CE; Double Insulation; GOST-R; Level VI; RoHS; Ukraine; WEEE; SIQ; CB 60950; | ||||||||||||||||||||||||||||||||
Information | |||||||||||||||||||||||||||||||||
| Model Number | GT-83083-0505-USB-W2E | ||||||||||||||||||||||||||||||||
| Agency Documents | http://www.globtek.info/certs/GT-83083-USB-W2Z/ | ||||||||||||||||||||||||||||||||
| CE EC-Declaration for Medical | Contact GlobTek for more information | ||||||||||||||||||||||||||||||||
| CE EC-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ec_declaration?id=a0Oa000000MEmx4EAD | ||||||||||||||||||||||||||||||||
| CE EC-Declaration for Household | Contact GlobTek for more information | ||||||||||||||||||||||||||||||||
| UKCA-Declaration for Medical | Contact GlobTek for more information | ||||||||||||||||||||||||||||||||
| UKCA-Declaration for Industrial/Commercial/ITE | https://cs.globtek.info/ukca_declaration?id=a0Oa000000MEmx4EAD | ||||||||||||||||||||||||||||||||
| UKCA-Declaration for Household | Contact GlobTek for more information | ||||||||||||||||||||||||||||||||
| Morocco SDoC Declaration | https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000MEmx4EAD | ||||||||||||||||||||||||||||||||
| RoHS/RoHS3 Declaration | https://www.globtek.com/pdf/rohs_cert/a0Oa000000MEmx4EAD | ||||||||||||||||||||||||||||||||
| Prop 65 Statement | https://www.globtek.com/r2/PH7CNf | ||||||||||||||||||||||||||||||||
| REACH Declaration | https://www.globtek.com/r2/eM2co8 | ||||||||||||||||||||||||||||||||
| Conflict Minerals Declaration | https://www.globtek.com/r2/vZY8R5 | ||||||||||||||||||||||||||||||||
Model Parameters | |||||||||||||||||||||||||||||||||
| Type | Wall Plug-in | ||||||||||||||||||||||||||||||||
| Technology | AC/DC Switching Adapter with USB Power Supply AC Adaptor | ||||||||||||||||||||||||||||||||
| Category | ICT/ITE Power Supply | ||||||||||||||||||||||||||||||||
| Input Voltage Range (V) | 100-240V ̴ , 50/60Hz | ||||||||||||||||||||||||||||||||
| Max Input Current (A) | 0.2A | ||||||||||||||||||||||||||||||||
| Max Output Power Rating (W) | 5 | ||||||||||||||||||||||||||||||||
| Output Voltage Range (V) | 5 | ||||||||||||||||||||||||||||||||
| Efficiency | USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782 | ||||||||||||||||||||||||||||||||
| Ingress Protection | |||||||||||||||||||||||||||||||||
| Size (mm) | 65.60*36.0*22.5 +/-0.5 | ||||||||||||||||||||||||||||||||
| Enclosure | |||||||||||||||||||||||||||||||||
| 3D File Download | https://www.globtek.com/file/dl/GT-83083-0505-USB-W2E.STP | ||||||||||||||||||||||||||||||||
Rating Table | |||||||||||||||||||||||||||||||||
* (Final ordering #/Part No to be defined) | |||||||||||||||||||||||||||||||||
Specifications | |||||||||||||||||||||||||||||||||
| 01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac 02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz 03. Output Regulation: +/- 5% measured at the output connector measured at the end of a 0.6 meter USB cordset employing #22 Gauge conductors 04. Line Voltage Regulation: +/- 1% typical measured at the output connector measured at the end of a 0.6 meter USB cordset employing #22 Gauge conductors 05. Output Ripple (Vp-p): +/-1% or 100 mV whichever is greater measured at the end of a 0.6 meter USB cordset employing #22 Gauge conductors. Measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector. 06. Inrush Current: at full load, 25°C, cold start 07. Switching Frequency: 100 KHz typical, varies with line and load 08. Efficiency: 73.77% minimum at nominal input voltage average, Efficiency meet CEC Ⅴ, ERP：2009/125/EC B) PROTECTION 01. Over-current protection: 1.5A maximum with auto-recovery function 02. Over-voltage protection: 10VDC maximum with zener clamp 03. Short-circuit protection:The adapter shall not be damaged by short the DC output to Ground. C) SAFETY 01. Dielectric Withstand Voltage: Primary To Secondary: 3000VAC 10mA 1minute or 4242VDC 10mA 1minute 02. Leakage Current: 20uA maximum, at nominal AC input voltage and frequency 03. ESD Immunity per EN61000-4-2, ±8 kV contact, ±15 kV air, Perf Criteria A Standard. D) OTHER: 01. MTBF: 200,000 Hours @ 25°C ambient temperature 02. Operating Temperature: 0°C to 50°C ambient temperature 03. Operating Humidity: 20 ~ 85 % RH. non-condensing 05. Storage Temperature: -20°C to 60°C 06. Storage Humidity:5 ~ 95 % RH. non-condensing 07. Cooling: Cooling shall be with natural convection cooling 08. RoHS 2: Complies with EU 2011/65/EU China SJ/T 11364-2014 E) ENCLOSURE 01. Housing: High impact plastic, 94V0 polycarbonate, non-vented 02. Markings: Label and/or Pad Printed and/or Molded in the case | |||||||||||||||||||||||||||||||||
| Derating Curve | |||||||||||||||||||||||||||||||||
| Qty (ea.)/Carton | 360 | ||||||||||||||||||||||||||||||||
| Individual Box/Gift Box Size (mm) | 95(L)*54(W)*68( | ||||||||||||||||||||||||||||||||
| Individual Box/Gift Box Color | 95(L)*54(W)*68( | ||||||||||||||||||||||||||||||||
| Master Carton Size (mm) | 445 x 305 x 305 | ||||||||||||||||||||||||||||||||
| Gross Weight (kg) | 21.0 | ||||||||||||||||||||||||||||||||
| Label Width (mm) | 30.0 | ||||||||||||||||||||||||||||||||
| Label Height (mm) | 24.0 | ||||||||||||||||||||||||||||||||
Input Configuration | |||||||||||||||||||||||||||||||||
| Description | European CEE 7/16 configuration:EN 50075 Europlug 2 PINThe prongs of the Europlug are 19 mm long. They consist of a 9 mm long conductive tip of 4 mm diameter with a rounded ending, followed by a 10 mm long flexible insulated shaft of not more than 3.8 mm diameter. The two prongs are not exactly parallel and converge slightly; their centres are 19 mm apart at the tip and 18.6 mm apart at the base. The elasticity of the converging prongs provides sufficient contact force for the Europlug's current rating with a variety of socket-hole arrangements. The entire plug is 35.3 mm wide and 13.7 mm high, and must not exceed these dimensions within 18 mm behind its front plane (this allows for the recesses on many European socket types). The left and right side of the plug are formed by surfaces that are at 45° relative to the horizontal plan. | ||||||||||||||||||||||||||||||||
Output Configuration | |||||||||||||||||||||||||||||||||
| Common output connector options: Click to add to your request.
Comprehensive list of GlobTek output cordset options Contact GlobTek for your specific requirements or custom solutions. | |||||||||||||||||||||||||||||||||
| Approvals | |||||||||||||||||||||||||||||||||
Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice. Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation. | |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
