Name: GT-86181-WWV.V-W2E
Creator: GlobTek

GT-86181-WWV.V-W2E

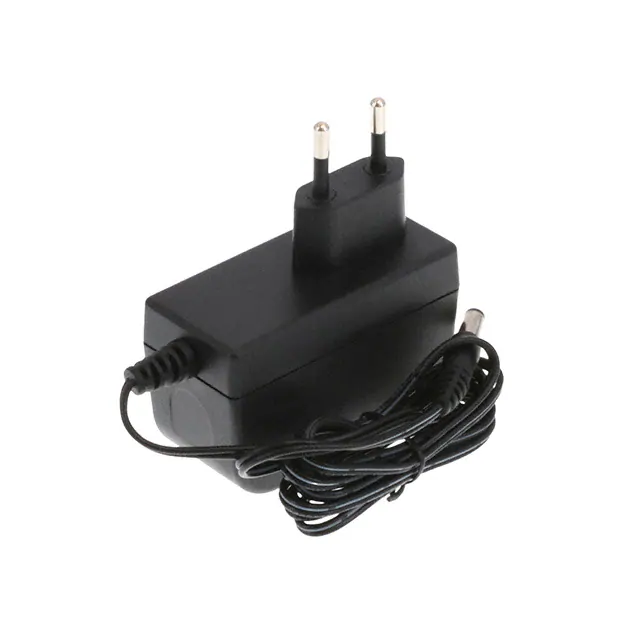

GT-86181-WWV.V-W2E, ICT/ITE Power Supply, Wall Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50/60Hz, European CEE 7/16 configuration:EN 50075 Europlug 2 PIN, Output Rating: 18 Watts, Power rating with convection cooling (W) , 9-12, 15-18V in 0.1V increments, Approvals: CE; EAC; Conforms to 62368-1; China RoHS; Double Insulation; Level VI; CB 62368; RoHS; Ukraine; WEEE; LPS 62368; Morocco;

Information

Model Number

GT-86181-WWV.V-W2E

Agency Documents

http://www.globtek.info/certs/GT-86181-W2/

CE EC-Declaration for Medical

Contact GlobTek for more information

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0Oa000000FliO1EAJ

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

Contact GlobTek for more information

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0Oa000000FliO1EAJ

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000FliO1EAJ

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0Oa000000FliO1EAJ

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Wall Plug-in

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

ICT/ITE Power Supply

Input Voltage Range (V)

100-240V~, 50/60Hz

Max Input Current (A)

0.6 A

Max Output Power Rating (W)

Output Voltage Range (V)

9-12, 15-18

Efficiency

USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782

Ingress Protection

Indoor Use

Size (mm)

73.5 (L) * 35 (W) * 64(H) max

Enclosure

3D File Download

https://www.globtek.com/file/dl/6014_obsolete_model.stp

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)
GT-86181-1809 -W2E*	9	2	18
GT-86181-1810 -W2E*	10	1.8	18
GT-86181-1811 -W2E*	11	1.636	18
GT-86181-1812 -W2E*	12	1.5	18
GT-86181-1815 -W2E*	15	1.2	18
GT-86181-1816 -W2E*	16	1.125	18
GT-86181-1817 -W2E*	17	1.058	17.99
GT-86181-1818 -W2E*	18	1	18

* (Final ordering #/Part No to be defined)

Specifications

A) ELECTRICAL SPECIFICATIONS:
01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac
02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz
03. Inrush Current: at full load, 25° C, cold start
04. Efficiency: Compliant with Efficiency Level VI and CoC Tier 2 standards
05. No Load Standby Power: <0.075W @ 230Vac
06. Line regulation: ±2% At nominal input voltage and full load
07. Total output regulation: ± 5%
08. Output Voltage: Tolerance ± 5%
09. Turn On Delay: 3 Seconds maximum at nominal input Voltage
10. Hold Up Time: 5ms min at nominal Input Voltage
11. Ripple Voltage: 300 mVp-p At 20 MHz, and output parallel with Low Impedance 0.1uF & 47uF capacitors.Temperature at 25℃, and nominal input voltage

B) PROTECTION
01. Over voltage protection: Output shut down and auto restart
02. Short circuit protection: The adapter shall not be damaged by short the DC output to Ground
03. Over Load Protection: Output shut down and auto restart

C) SAFETY
01. HI-POT : Input to output : 3000VAC or 4242VDC 10mA 1 minute
02. Leakage current: 0.25mA maximum, at nominal AC input voltage and frequency
03. ESD: 8KV(air) / 4KV (contact)

D) OTHER:
01. MTBF: 200,000 Hours @ 25°C ambient temperature
02. Operating Temperature: 0°C to 40°C ambient temperature
03. Humidity Operating : 20% to 85%
04. Storage Temperature: -20°C to 60°C
05. RoHS 2: Complies with EU 2011/65/EU and China GB/T26572-2011

E) ENCLOSURE
01. Housing: High impact plastic, 94V0 polycarbonate, non-vented
02. Size: 74.5 (L) * 36 (W) * 46(H) mm maximum
03. Weight : 107.0 g ±15%
04. Markings: Label and/or Pad Printed and/or Molded in the case

Derating Curve

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

95*54*88

Individual Box/Gift Box Color

95*54*88

Master Carton Size (mm)

495 x 345 x 296

Gross Weight (kg)

TBD

Label Width (mm)

38.6

Label Height (mm)

22.1

Input Configuration

Description

European CEE 7/16 configuration:EN 50075 Europlug 2 PINThe prongs of the Europlug are 19 mm long. They consist of a 9 mm long conductive tip of 4 mm diameter with a rounded ending, followed by a 10 mm long flexible insulated shaft of not more than 3.8 mm diameter. The two prongs are not exactly parallel and converge slightly; their centres are 19 mm apart at the tip and 18.6 mm apart at the base. The elasticity of the converging prongs provides sufficient contact force for the Europlug's current rating with a variety of socket-hole arrangements. The entire plug is 35.3 mm wide and 13.7 mm high, and must not exceed these dimensions within 18 mm behind its front plane (this allows for the recesses on many European socket types). The left and right side of the plug are formed by surfaces that are at 45° relative to the horizontal plan.
