Name: GTM41060-WWVV-Q-IM
Creator: GlobTek

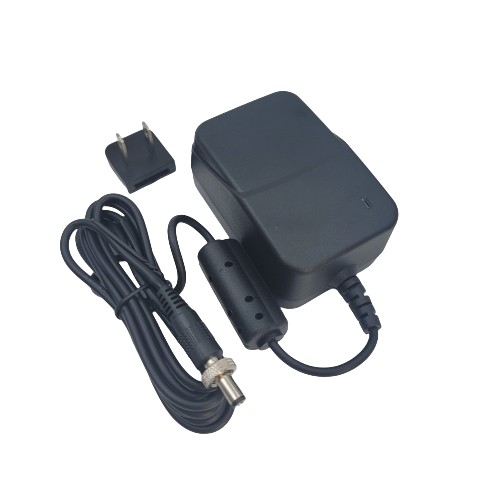

GTM41060-WWVV-Q-IM

GTM41060-WWVV-Q-IM, ICT / ITE / Medical Power Supply, 60601-1-4th Ed. , Wall Plug-in, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Blade Options for Q Series Wall Plug-in Power Supplies, Output Rating: 25 Watts, Power rating with convection cooling (W) , 3.0-30V in 0.1V increments, Approvals: cUR (up to 30V only); Belarus (12V only); EAC; RCM; UKCA; CE; Book 60601; CB 60601-1; CE; CE; China RoHS; Israel (5V only); cUR; Double Insulation; FCC; IP52; Level IV 1meter 115; NrCAN; PSE; RoHS; SIQ (up to 30V only); Ukraine; VCCI; WEEE; Taiwan BSMI (12V only); CB 60950; CCC; cULus; IRAM; Korea (12V Only); LPS (9V-30V); PSE; 2MOPP;

Information

Model Number

GTM41060-WWVV-Q-IM

Agency Documents

http://www.globtek.info/certs/GTM41060/

CE EC-Declaration for Medical

https://cs.globtek.info/ec_declaration?id=a0Oa000000Mi5pJEAR

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0Oa000000Mi5pJEAR

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

https://cs.globtek.info/ukca_declaration?id=a0Oa000000Mi5pJEAR

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0Oa000000Mi5pJEAR

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

a0Oa000000Mi5pJEAR">https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000Mi5pJEAR

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0Oa000000Mi5pJEAR

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Wall Plug-in

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

ICT / ITE / Medical Power Supply

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

0.6 A

Max Output Power Rating (W)

Output Voltage Range (V)

3.0-30

Efficiency

Ingress Protection

IP40

Size (mm)

Enclosure

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)	RFQ
GTM41060-2512-IM*	12	2.08	24.96
GTM41060-2515-IM*	15	1.67	25.05

* (Final ordering #/Part No to be defined)

Specifications

A) ELECTRICAL SPECIFICATIONS:
01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac
02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz
03. Output Regulation: +/- 5% of nominal output voltage
04. Line Voltage Regulation: +/- 1% maximum at full load
05. Output Ripple (Vp-p): 1% or 150 mV whichever is greater measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of output connector at nominal line
06. Turn-On/Turn-Off Overshoot: 5% maximum, 500uS maximum recovery time for 25% to 50% step load
07. Turn-On Delay: 3000mSEC maximum at full load, 115VAC
08. Hold-Up Time: 10mS minimum at nominal input and full load
09. Inrush Current: 30A maximum at cold start 120VAC and 60A maximum cold start at 230 VAC
10. Switching Frequency: 66.5 KHz typical
11. Current Limited Option: Models numbers containing CC are "Current Limited" to rated output current with a tolerance of +/-10%

B) PROTECTION
1. Over-Voltage: Protected, unit will recover upon removal of fault
2. Over-Load: Protected, unit will recover upon removal of fault
3. Short Circuit: Protected, unit will recover upon removal of fault
4. No load power consumption: Meet Energy Star level IV, 115Vac
5. Input Protection: Input line fusing

C) SAFETY
1. Dielectric Withstand Voltage: 5656Vdc from primary to secondary
2. Earth Leakage Current: N/A for Class II units, there is no PE Ground pin, so Earth Leakage current is not measured
3. Touch Current: Maximum allowed values: 100uA NC(Normal condition) 500uA SFC(single fault condition)
4. Means of Protection: 2MOPP
D) OTHER:
1. MTBF: 200,000 hours @ 25°C ambient temperature
2. Operating Temperature: 0°C to 40°C ambient temperature
Optional Operating Temperature: -5°C to 40°C ambient temperature (RFP4385)
3. Humidity: 0% to 90% relative humidity
4. Storage Temperature: -10°C to 80°C
5. ROHS 2: Complies with EU 2011/65/EU and China SJ/T 11363-2006
6. Ingress protection(employed)(not employed): IP52 to IEC60529:2001 Protected against dust - limited ingress (no harmful deposit) and Protected against direct sprays up to 15o from the vertical

E) ENCLOSURE
1. Upper Housing: High impact plastic, 94V0 polycarbonate, non-vented
2. Lower Housing: High impact plastic, 94V0 polycarbonate, non-vented
3. Size: 84.0* 56.0*37.9 mm +/-1.0
4. Green LED indicator for power "Power On"

Derating Curve

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

114*69.5*58.4

Individual Box/Gift Box Color

114*69.5*58.4

Master Carton Size (mm)

463 x 355 x 122

Gross Weight (kg)

10.8

Label Width (mm)

48.5

Label Height (mm)

40.8

Input Configuration

Description

Blade Options for Q Series Wall Plug-in Power SuppliesData Sheet: http://en.globtek.com/interchangeable-blades.php
Insertion Instructions: http://www.globtek.com/pdf/Instructions-Interchangeable-Blades.pdf
Video: Q-Blade Style Instruction Video

User-added image

INPUT CONNECTOR: Q-Socket (below are available blades configurations which are "not included" (unless stated above); can be purchased separately, package with power supply or as a separate "Q-KIT" if specified

01. United States / Canada / Japan NEMA 1-15P/ IEC PLUG Type A [WORKS IN PLUG B] configuration: NA 2 blades, Class II; US/CA/JP P/N: Q-NA(R)
02. Australian AS 3112 configuration: SAA 2 blade/ IEC TYPE I, Class II; AU P/N: Q-SAA(R)
03. UK BS 1363 configuration: UK 3 blade with dummy Ground/ IEC TYPE G, Class II; GB P/N: Q-UK(R)
04. European CEE 7/16 configuration: Europlug 2 pins/ IEC TYPE C [WORKS IN TYPE E&F], Class II; EU P/N: Q-EU(R)
05. Korean KS C8305 configuration: 2 pins/SIMILAR TO IEC TYPE C, Class II; KR P/N: Q-KR(R)
06. Argentina IRAM 2073 configuration: 2 blades/SIMILAR TO IEC TYPE I; AR P/N: Class II Q-AR(R)
07. China GB 2099 configuration: 2 blades/SIMILAR TO TYPE A, Class II; CN P/N:Q-CN(R)
08. India IS 1293 6A/BS546 configuration: 5A, 3 pins with Dummy Ground, Class II/IEC TYPE D; IN P/N: Q-IN(R)
09. IEC60320/C18 Inlet, Class II; P/N: Q-C18(R)
10. Brazilian NBR6147 configuration: 2 pins, Class II;SIMILAR TO IEC TYPE C BR P/N: Q-BR(R)
11. South Africa SABS164-1 and India IS 1293, IS694, 16A type plug, 3 round prongs, Class II + dummy ground, IEC TYPE M P/N: Q-SANS164-1-16A(R)
12. South Africa SABS164-4, 3 round prongs with a notched prong @ 0º, Class II + dummy ground, IEC TYPE M Red, P/N:
Q-SANS164-4C-16A(R)
13. South Africa SABS164-4, 3 round prongs with a notched prong @ -53º, Class II + dummy ground, Blue, IEC TYPE M, P/N:
Q-SANS164-4L-16A(R)
14. South Africa SABS164-4, 3 round prongs with a notched prong @ +53º, Class II + dummy ground, Black,IEC TYPE M P/N:
Q-SANS164-4R-16A(R)

Kits

01. Q-KIT: 1,2,3,4 above
02. Q-KIT-INTL: 2,3,4 above
03. Q-KIT-6: 1,2,3,4,5,6 above
04. Q-KIT-7: 1,2,3,4,5,6,7 above
05. Q-KIT-8: 1,2,3,4,5,6,7,8 above

Output Configuration

Common output connector options:
Click to add to your request.


L Type (Coaxial 5.5x2.5mm plug)	C Type (Coaxial 5.5x2.1mm plug)	K Type (Coaxial 3.5x1.3mm plug)	LL Type (5.5x2.5mm Locking 760k type)	CL Type (5.5x2.1mm Locking S761k type)	Magnetic Connector

YL3 Type (KPPX-3P)	YL4 Type (KPPX-4P)	EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)	MSB Type (Micro USB)	Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

Logo	Description
Medical 4th Ed.	EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
	ANSI/AAMI ES60601-1: A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, CSA CAN/CSA-C22.2 NO. 60601-1:14 up to 30V only
	Belarus certificate J\l By/I 12 03. 1 I . 020 05936 only for GTM41060-2512 and GT-41060-2512
	Certification # TC RU 0585806 Custom Union of Russia, Belarus and Kazakhstan
	Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm (pending)
	UKCA Certification
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
No Logo Applicable	CB report IEC 60601-1: 2005 + CORR. 1 (2006) + CORR. 2 (2007) and or EN 60601-1:2006 3rd Edition including 2MOOP requirements
	CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15B - On label or Molded in case
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	Electromagnetic compatibility of ME EQUIPMENT and ME SYSTEMS Of Israel Standard SI 60061 Part 1 – Medical equipment: General requirements for basic safety and essential performance, Mar. 2008. (5 Volts Only)
	60601-1 3rd Operating Instructions
	UR 60601-1, 3rd Edition, CAN/CSA-C22.2 No. 601.1-1

EEV1191	Natural Resources Canada (NRCan): CSA Standard C381.1-08, QSP NRCAN EEV1191; http://shop.csa.ca/en/canada/energy-efficiency/cancsa-c3811-08/invt/27024802008
	FCC PART 15 CLASS B
	JAPAN TUV R-PSE, Cert. No. JD 50314327, to J60950-1(H26) , J55022(H22),J3000(H25) [15V?30V]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Indoor Use Only - Mark is on the label or Molded in the case
	IEC 60601-1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012 (or IEC 60601-1: 2012 reprint) up to 30V only
IP52	Ingress Protection: ?IP52 to IEC60529:2001 Protected against dust - limited ingress (no harmful deposit) and Protected against direct sprays up to 15 degrees from the vertical
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe) exception 5.1~6.9V require 1000 mm output cable
	Japan: Voluntary Control Council for Interference (VCCI)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE	IRAM certificate DC-E-G71-002.1 to IEC 60950 + A1:2009
R32282 RoHS (Pb)	Taiwan BSMI (12V designs only); http://www.bsmi.gov.tw/wSite/ct?xItem=4072&ctNode=816&mp=2
	Korea KET KC Mark GT-41060-2512 HU10173-10024A (12V Only)
LPS	Limited Power Source GT-41060 9 - 30 volts only
No Logo Applicable	CB report 60950-1 2nd Ed
	CCC to GB4943.1-2011; GB/T9254-2008 GB17625.1-2012, Tropical <2000
	UL60950-1, cULus to UL 60950-1, 2nd Edition, 2007-03-27 and CSA C22.2 No. 60950-1-07, 2nd Edition, 2007-03
	JAPAN TUV R-PSE, Cert. No. JD 50314327, to J60950-1(H26) , J55022(H22),J3000(H25)[15V or less]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
2MOPP	2 x MOPP (Means of Patient Protection) marked with 2MOPP near model name
