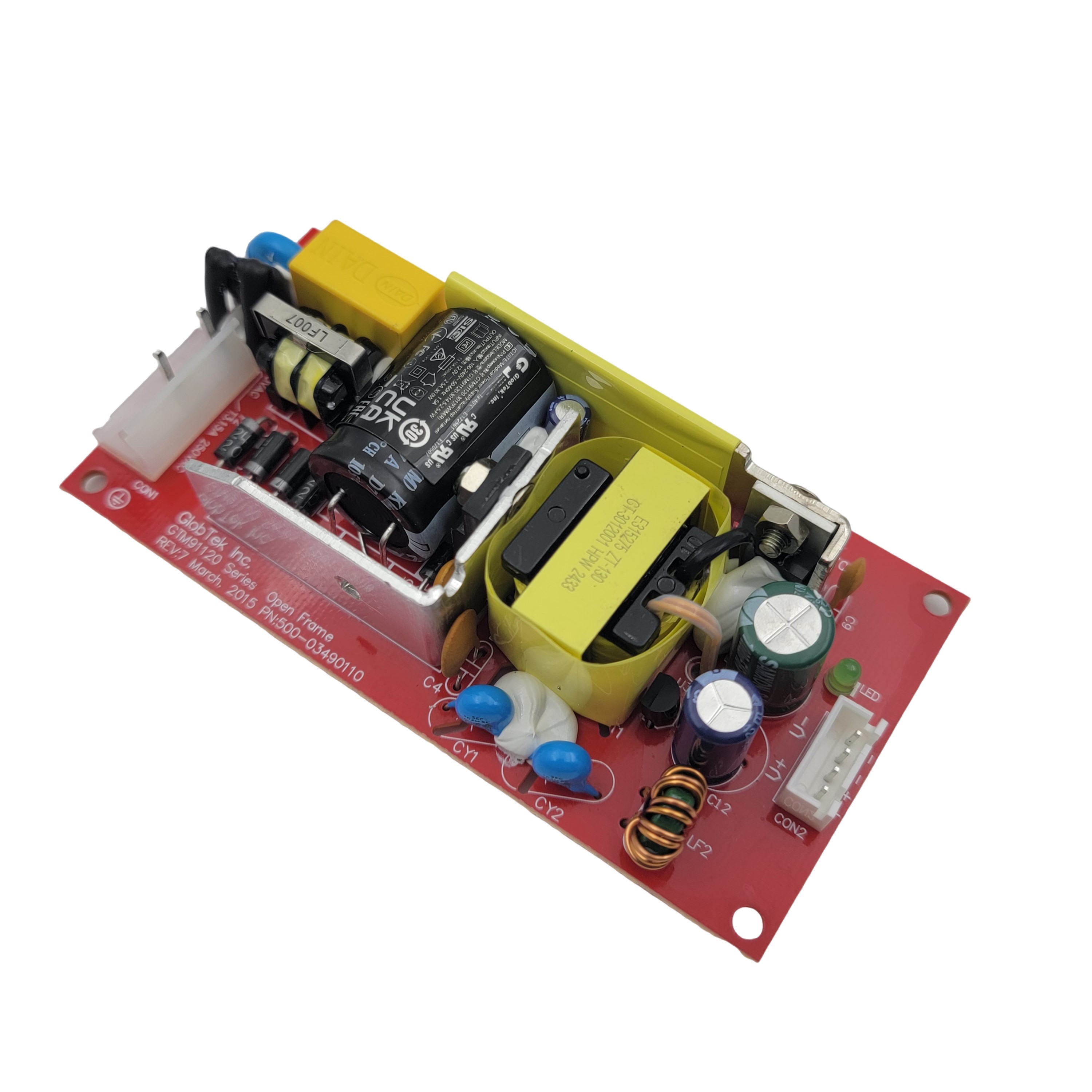

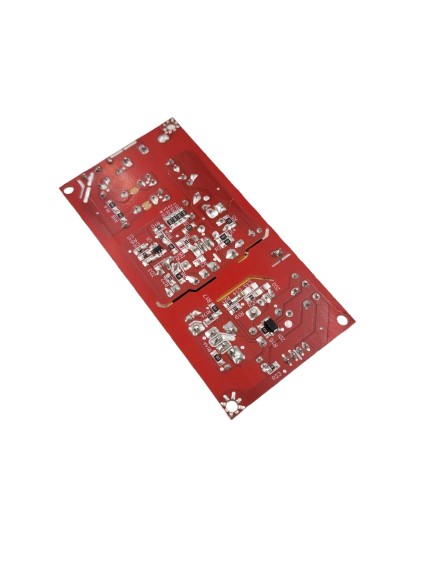

GTM91120-30VV-FW Open Frame/Internal ICT / ITE / Medical Power Supply

Name: GTM91120-30VV-FW
Creator: GlobTek

GTM91120-30VV-FW

GTM91120-30VV-FW, ICT / ITE / Medical Power Supply, 60601-1-4th Ed. , Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, 5-PIN PC BOARD 3.96 mm WAFER CONNECTOR, JVE P/N: 24W1180-05S10-01T-3.6-R2A-CG01 CLASS II or EQUIVALENT, Output Rating: 30 Watts, Power rating with convection cooling (W) , 5-48V in 0.1V increments, Approvals: Fuse 60335; Book 60601; Fuse 60335; Ta:40°C; LPS 60950; RCM; S-Mark IEC/EN 60601-1; SIQ; S-Mark 60950; SIQ 61558; Ukraine; 61558-1; IEC 61558-1; EAC; UKCA; RCM; ETL 62368; LPS 62368; WEEE; VCCI; SIQ; Designed to meet EN 60601-1; SIQ; Level V; FCC; CE; CE;CB EN/IEC 60335-1; CB 60950; CB 60601-1; cRUus; cRUus (up to 30V); IEC 60335; IEC/EN60601-1; IEC/EN60950-1; CE; Double Insulation; ETL; CB 60335; RoHS; China RoHS;

Information

Model Number

GTM91120-30VV-FW

Agency Documents

http://www.globtek.info/certs/GTM91120-T2%20-T3A%20-FW/

CE EC-Declaration for Medical

https://cs.globtek.info/ec_declaration?id=a0Oa000000HWWF4EAP

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0Oa000000HWWF4EAP

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

https://cs.globtek.info/ukca_declaration?id=a0Oa000000HWWF4EAP

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0Oa000000HWWF4EAP

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000HWWF4EAP

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0Oa000000HWWF4EAP

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Open Frame/Internal

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

ICT / ITE / Medical Power Supply

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

1.5A

Max Output Power Rating (W)

Output Voltage Range (V)

5-48

Efficiency

Ingress Protection

Size (mm)

101.6x50.8x22.30

Enclosure

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)
GTM91120-3019.5-5.5-FW*	14	2.142	29.99
GTM91120-3007.5-2.5-FW*	5	4	20
GTM91120-3007.5-1.5-FW*	6	3.75	22.5
GTM91120-3010.5-1.5-FW*	9	2.77	24.93
GTM91120-3014.5-2.5-FW*	12	2.5	30
GTM91120-3019.5-4.5-FW*	15	2	30
GTM91120-3019.5-1.5-FW*	18	1.66	29.88
GTM91120-3024-FW*	24	1.25	30
GTM91120-3036-FW*	36	0.83	29.88
GTM91120-3048-FW*	48	0.625	30
GTM91120-3010.5-1.4-FW*	9.1	3.3	30.03
GTM91120-3019.5-5.5-FW*	14	2.142	29.99
GTM91120-3007.5-2.5-FW*	5	4	20
GTM91120-3007.5-1.5-FW*	6	3.75	22.5
GTM91120-3010.5-1.5-FW*	9	2.77	24.93
GTM91120-3014.5-2.5-FW*	12	2.5	30
GTM91120-3019.5-4.5-FW*	15	2	30
GTM91120-3019.5-1.5-FW*	18	1.66	29.88
GTM91120-3024-FW*	24	1.25	30
GTM91120-3036-FW*	36	0.83	29.88
GTM91120-3048-FW*	48	0.625	30
GTM91120-3010.5-1.4-FW*	9.1	3.3	30.03

* (Final ordering #/Part No to be defined)

Specifications

A) ELECTRICAL SPECIFICATIONS:
1. Input Voltage: Specified 90-264 Vac, Nameplate rated 100-240 Vac
2. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60 Hz
3. Output power (rated): 30Watts max
Note: Refer to Power Supply information on page 2 for the corresponding rated output power for the specific output voltage.
4. Output Regulation: +/- 5% measured at the output connector
5. Line Voltage Regulation: +/- 2% typical measured at full load
6. Output Ripple (Vp-p): +/-2% maximum, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector at nominal line
Optional low ripple option available (RFP4579)
7. Turn-ON/OFF Overshoot: 5% maximum, 500uS typical recovery time for 25% to 50% step load
8. Turn-ON Delay: 3 Seconds, maximum @ full load, nominal line
9 Hold-Up Time: 8mS typical @ nominal input voltage and full load
10. Inrush Current: 60A maximum cold start @ 240Vac input
11. Switching Frequency: 100 KHz typical

B) PROTECTION
1. Over-Voltage: Protected with a Zener diode clamp across the output
2. Short Circuit: Hiccup with auto recovery
3. Over-load: Hiccup with auto recovery
4. Input Protection: Input line and neutral fusing

C) SAFETY
1. Dielectric Withstand Voltage: 5656Vdc from primary to secondary
2. Earth Leakage Current: N/A for Class II units, there is no PE Ground pin, so Earth Leakage current is not measured
3. Touch Current: Maximum allowed values: 100uA NC(Normal condition) 500uA SFC(single fault condition)
4. Warning to service personnel "CAUTION: Double pole/neutral fusing". This marking is required only for both F1 and F2 installed

D) OTHER:
1. MTBF: 200,000 Hours @ 25°C ambient temperature
2. Humidity: 0% to 90% relative humidity
3. Storage Temperature: -10°C to 80°C
4. Operating Temperature: 0°C to 40°C ambient temperature
5. Cooling: Convection

E) ENCLOSURE
1. Housing: Open Frame
2. Size: 101.6 x 50.8 x 22.3 mm +/-1.0 mm
3. Markings: Label and/or Pad Printed

Derating Curve

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

110*60*40

Individual Box/Gift Box Color

white

Master Carton Size (mm)

375 x 345 x 200

Gross Weight (kg)

Label Width (mm)

20.0

Label Height (mm)

15.0

Input Configuration

Description

5-PIN PC BOARD 3.96 mm WAFER CONNECTOR, JVE P/N: 24W1180-05S10-01T-3.6-R2A-CG01 CLASS II or EQUIVALENT
User-added image

Optional Input Wiring Kits are available:

PN/Ordering No	Length	End A	End B
XHP410070M7MLX3(R)	70	JST XHP-4	Molex 09-93-0300
C810070M6MLX3(R)	60	IEC60320 C8	Molex 09-93-0300

Custom lengths, construction, cable types, ferrites, filters, and termination available upon request.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

Logo	Description
Medical 4th Ed.	EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
	Book 60335 up to 36 Volts
	60601-1 3rd Operating Instructions
	Fuse 60335 T3.15A 250VAC Up to 36 volts
	Indoor Use Only - Mark is on the label or Molded in the case
Ta:40°C	IEC 61558-1 Maximum Ambient Temperature, Max 40°C
LPS	Limited Power Source 60950
GMA-515496-EA	RCM certificate GMA-515496-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	IEC 60601-1:2005+A1 EN 60601-1:2006+A1:2013+A12:2014 IEC 60601-1-11:2015 EN 60601-1-11:2015
IEC/EN60950-1	SIQ Mark License EN 60950-1:2006 + A1:2010 + All :2009 + A12:2011
	Semko S-Mark-Cert- EN60950-1
IEC/EN61558-1	EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	Transformer Symbol IEC 61558-1 SMPS Short-Circuit –Proof Safety Isolating Transformer
	Transformer Symbol IEC 61558-1 SMPS Switch Mode Power supply
	Certification # TC RU AR46.B.75423 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
GMA-515496-EA	RCM certificate GMA-515958-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
LPS	Limited Power Source 62368
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	Japan: Voluntary Control Council for Interference (VCCI)
IEC/EN60601-1	SIQ Mark License EN60601-1, 3rd edition
No Logo	Designed to meet EN 60601-1:2006 + A11:2011 +A1:2013 3rd Edition
IEC/EN60335-1	SIQ IEC/EN 60335-1 (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) up to 36 volts
	Serial Number Information
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
	FCC PART 15 CLASS B
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15B - On label or Molded in case
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
No Logo Applicable	CB report 60950-1 2nd Ed
No Logo Applicable	CB Report to ETL 60601-1, 3rd Edition+60601-1-11
	cRUus UL Recognized Component E172861 3rd Edition w-RM ANSI-AAMI ES60601-1 (2005 + C1:09 + A2:10) and CAN-CSA-C22.2 No. 60601-1 (2008)
	cRUus Registered E170507 CSA C22.2 No. 60950-1 2nd Ed. (up to 30V)
	IEC/EN60335-1 Up to 36 volts
	IEC/EN60601-1
	IEC/EN60950-1
	CE Mark: tested to comply with EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EN 60601-1-2:2015
	null
	AAMI ES60601-1:2005 +A1 - Medical Electrical Equipment - Part 1: General Requirements CAN/CSA-C22.2 No.60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1 IEC 60601-1-11 Issued: 2015/01/20 Ed. 2 Medical Elec. Equip.
No Logo Applicable	IEC 60335-1:2010 (Fifth Edition) incl. Corr. 1:2010 and Corr. 2:2011 + A1:2013
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	Book 60335 up to 36 Volts
	60601-1 3rd Operating Instructions
	Fuse 60335 T3.15A 250VAC Up to 36 volts
	Indoor Use Only - Mark is on the label or Molded in the case
Ta:40°C	IEC 61558-1 Maximum Ambient Temperature, Max 40°C
LPS	Limited Power Source 60950
GMA-515496-EA	RCM certificate GMA-515496-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	IEC 60601-1:2005+A1 EN 60601-1:2006+A1:2013+A12:2014 IEC 60601-1-11:2015 EN 60601-1-11:2015
IEC/EN60950-1	SIQ Mark License EN 60950-1:2006 + A1:2010 + All :2009 + A12:2011
	Semko S-Mark-Cert- EN60950-1
IEC/EN61558-1	EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009EN 61558-2-16:2009 + A1 :2013 EN 61558-1 :2005 + A 1 :2009
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	Transformer Symbol IEC 61558-1 SMPS Short-Circuit –Proof Safety Isolating Transformer
	Transformer Symbol IEC 61558-1 SMPS Switch Mode Power supply
	Certification # TC RU AR46.B.75423 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
GMA-515496-EA	RCM certificate GMA-515958-EA; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
LPS	Limited Power Source 62368
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	Japan: Voluntary Control Council for Interference (VCCI)
IEC/EN60601-1	SIQ Mark License EN60601-1, 3rd edition
No Logo	Designed to meet EN 60601-1:2006 + A11:2011 +A1:2013 3rd Edition
IEC/EN60335-1	SIQ IEC/EN 60335-1 (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) up to 36 volts
	Serial Number Information
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
	FCC PART 15 CLASS B
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15B - On label or Molded in case
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
No Logo Applicable	CB report 60950-1 2nd Ed
No Logo Applicable	CB Report to ETL 60601-1, 3rd Edition+60601-1-11
	cRUus UL Recognized Component E172861 3rd Edition w-RM ANSI-AAMI ES60601-1 (2005 + C1:09 + A2:10) and CAN-CSA-C22.2 No. 60601-1 (2008)
	cRUus Registered E170507 CSA C22.2 No. 60950-1 2nd Ed. (up to 30V)
	IEC/EN60335-1 Up to 36 volts
	IEC/EN60601-1
	IEC/EN60950-1
	CE Mark: tested to comply with EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EN 60601-1-2:2015
	null
	AAMI ES60601-1:2005 +A1 - Medical Electrical Equipment - Part 1: General Requirements CAN/CSA-C22.2 No.60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1 IEC 60601-1-11 Issued: 2015/01/20 Ed. 2 Medical Elec. Equip.
No Logo Applicable	IEC 60335-1:2010 (Fifth Edition) incl. Corr. 1:2010 and Corr. 2:2011 + A1:2013
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
