GTD9X0160-16VV DC-DCGTD9X0160-16VV, DC/DC Switching Power Supply, Vehicle/Car DC/DC Converter, DC-DC, , Input Rating: 12-24 Vdc, Lead Wire, Terminal :TE 2-520102-2, Output Rating: 15.5 Watts, Power rating with convection cooling (W) , 5-5.5V in 0.1V increments, Approvals:
Information
Model NumberGTD9X0160-16VV
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEContact GlobTek for more information
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEContact GlobTek for more information
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O3a00000Lr6smEAB
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O3a00000Lr6smEAB
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeVehicle/Car DC/DC Converter
TechnologyDC-DC
CategoryDC/DC Switching Power Supply
Input Voltage Range (V)12-24 Vdc
Max Input Current (A)2.0 A
Max Output Power Rating (W)15.5
Output Voltage Range (V)5-5.5
Efficiency
Ingress Protection
Size (mm)63.7 x 47.8 x 18.1 mm
Enclosure
User-added image



Rating Table
Preferred ratings shown below.
Custom output voltages available in 0.1V increment from the minimum voltage listed to the maximum voltage listed; contact sales.
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GTD9X0160-1605*53.115.5
GTD9X0160-16VV-XXXXCUSTOMCUSTOMCUSTOM
* (Final ordering #/Part No to be defined)
Specifications

Input

Input Range12 - 24VDC
Input Current2.0A (max) @ 12VDC & peak output current rating

Output

Output Voltage/Current:
USBA5V3.1A  total

Turn-on Delay:< 3 seconds
Output Regulation'+/- 5% MEASURED AT O/P CONNECTOR
Line Regulation:'+/- 1%TYPICAL MEASURED AT THE OUTPUT CONNECTOR
Ripple:
1% OR 100 mV WHICHEVER IS GREATER. MEASURED AT 20 MHz
BANDWIDTH WITH 0.1 µf CERAMIC CAPACITOR IN PARALLEL WITH 47 µf
ELECTROLYTIC CAPACITOR CONNECTED AT THE END
OF OUTPUT CONNECTOR AT NOMINAL LINE

Transient Response (Step Load):10% MAXIMUM, 1mS TYPICAL RECOVERY TIME FOR 25% STEP LOAD
INRUSH Current15A TYPICAL AT 24V INPUT

Protections

Input Protection:Input line fusing
Output Over-Current Protection:Current limit
Over-Temperature Protection:Thermal shutdown function

Environmental

MTBF:> 750,000 hours @ 50°C ambient (Demonstrated + Telcordia SR-332, Issue 3)
> 1,500,000 hours @ 25°C ambient (Telcordia SR-332, Issue 3)
Operating Temperature:-20°C to 45°C (nominal load)
Storage Temperature:-20°C to 85°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Convection
RoHS:Complies with EU 2011/65/EU and China SJ/T 11363-2006



Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Markings:Adhesive backed label or laser engraving
Derating Curve

Qty (ea.)/Carton60
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box ColorEgg Crate
Master Carton Size (mm)480 x 450 x 205
Gross Weight (kg)15.2
Label Width (mm)110.00
Label Height (mm)50.00
Input Configuration
DescriptionLead Wire, Terminal :TE 2-520102-2User-added image
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)
Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Popular Products (Stock items)
SKUVolts OutCurrent Out (Amps)ConnectorRFQSample RequestDistributor Stock (Click to order)

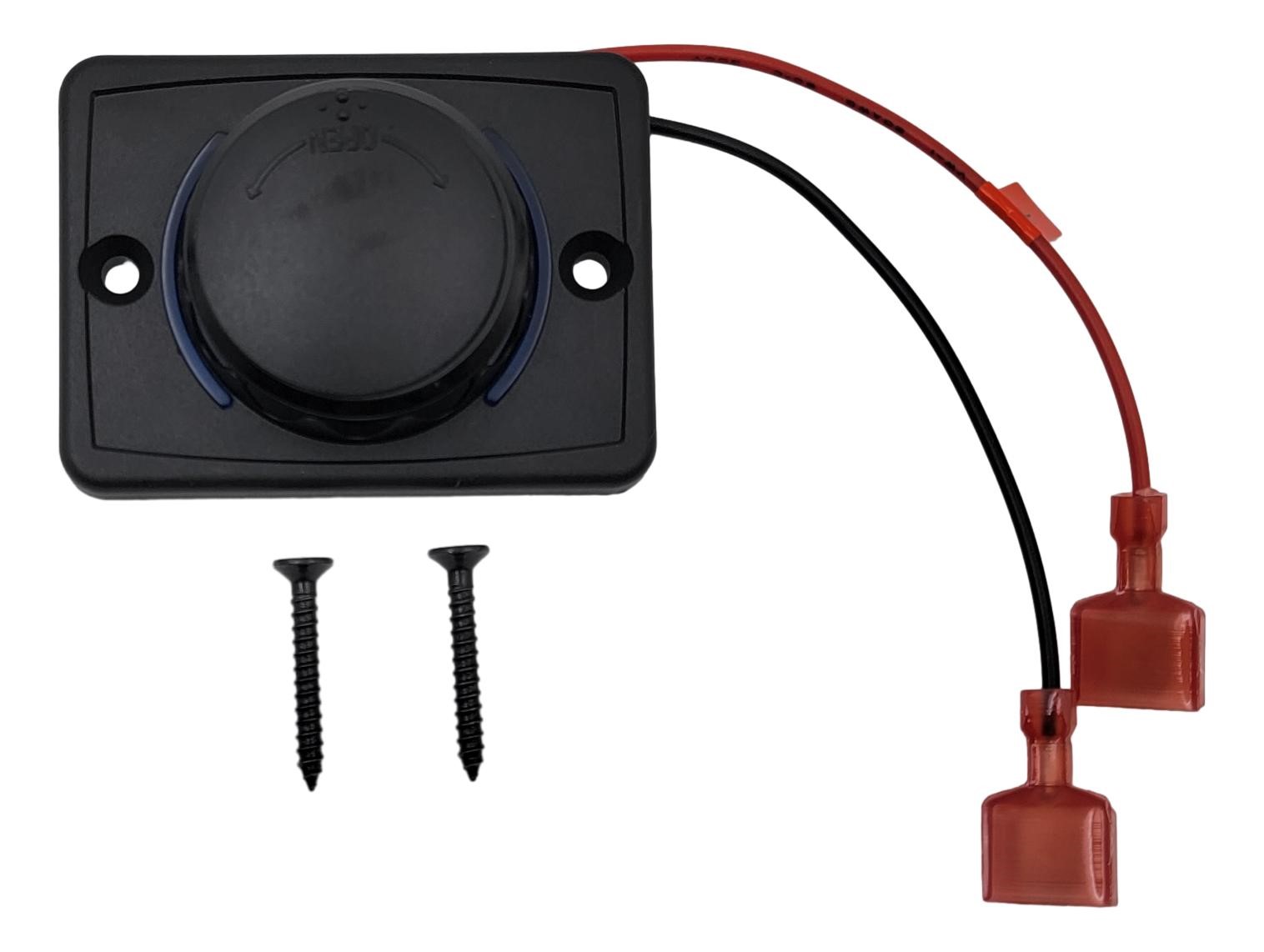

DR6SM3100USBA-USBA
