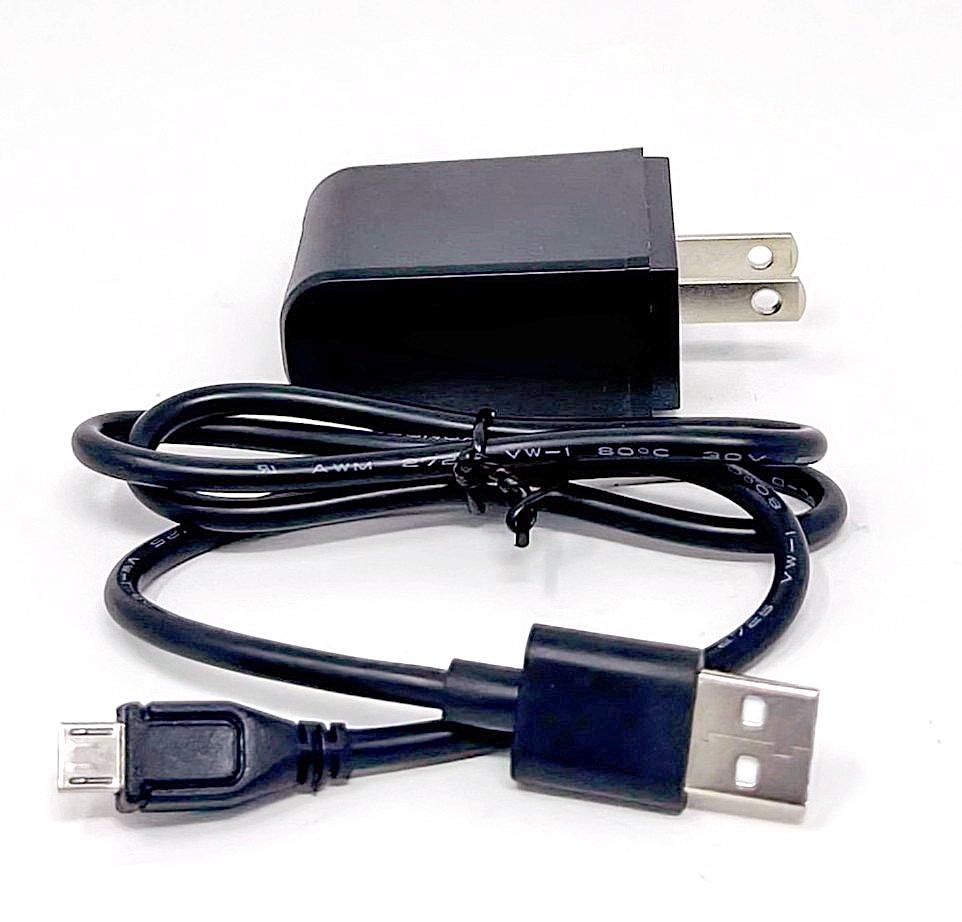

Wall Plug-in AC/DC Switching Adapter with USB Power Supply AC Adaptor
GT-83084-1006-1.0-USB-W2, ICT/ITE Power Supply, Efficiency Level: USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782, Case Color/Style: GlobTek Black, Wall Plug-in, AC/DC Switching Adapter with USB Power Supply AC Adaptor, Input Rating: 100-240V ̴ , 50/60Hz, N. America NEMA 1-15 Fixed , Output Rating: 10W, 5.0V@2.0A, Output Configuration: 600 mm, 22/4 Cond, UL 2725, Micro-B USB 5 Pin Type "B" or Equal, Ferrite: None, GlobTek Black, GT Cord # C2055, Pin Out: Pin 1:(+), Pin 2 (D-): Connected to Pin 3 (D+), Pin 3 (D+): Connected to Pin 2 (D-), Pin 4:(-); P2 (D-) and P3 (D+) are shorted together inside power supply., Blades/Input Cord: Fixed Blades North American 1-15P, Approvals: LPS 62368; CB 62368; Double Insulation; Level VI; PSE; RoHS; VCCI; WEEE; LPS 60950; CB 60950; cULus; to , GT Cable #: / Conductors, mm OD, , Deg.C, V, , Approvals: , mm,
| WR9HA2000USB1-F(R6B) | |
|---|---|
| DK Part Number | 1939-WR9HA2000USB1-F(R6B)-ND |
| Family | Power Supplies |
| Volts Out | 5.0 |
| Current Out mA | 2.0 |
| Watts | 10 |
| Model Datasheet | https://www.globtek.com/ds/miPf7RALt2m/5ofMTUBh7yk.html#datasheet |
| Spec PDF | https://spec.globtek.info/spec/pdf/WR9HA2000USB1-F(R6B) |
