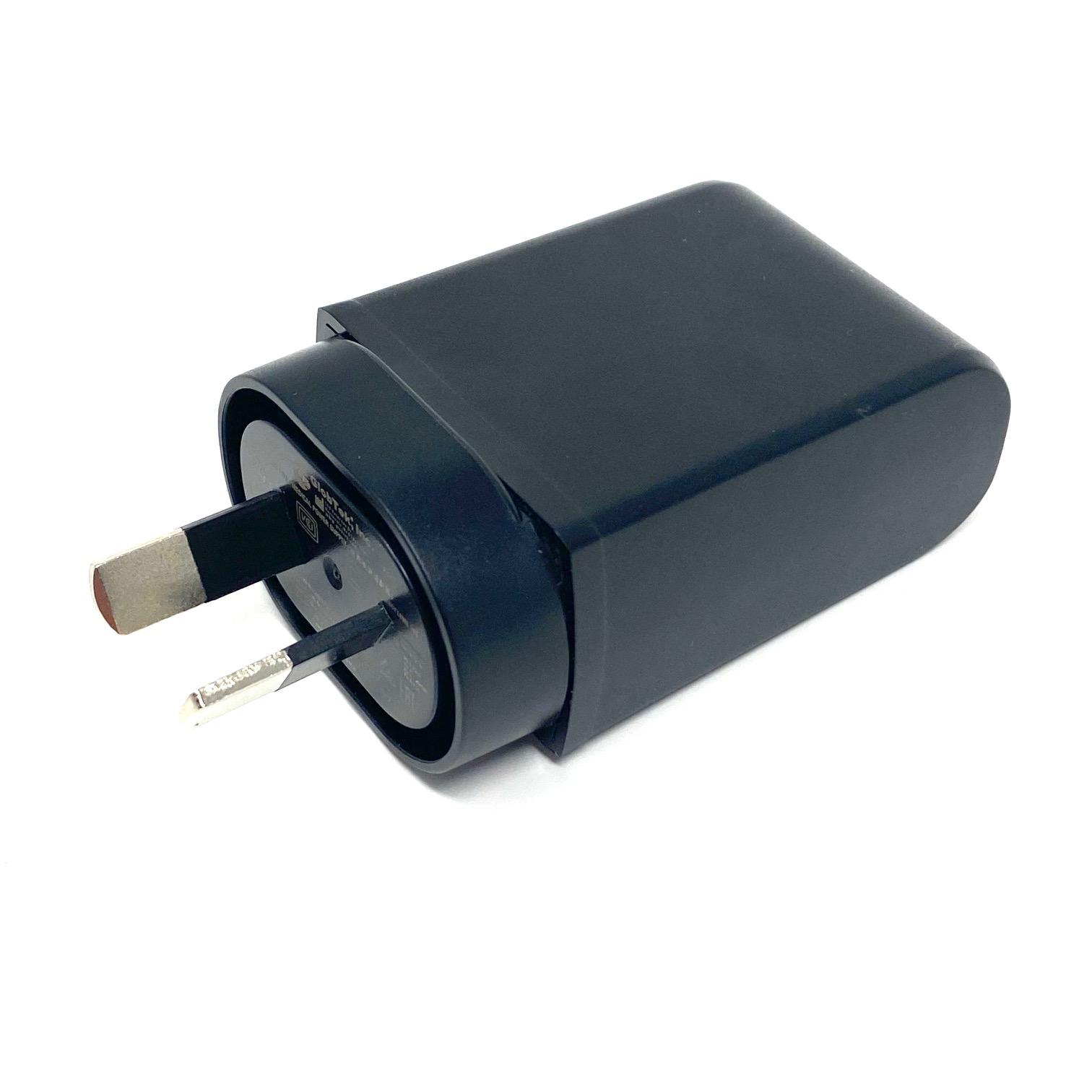

Wall Plug-in AC/DC Switching Adapter with USB Power Supply AC Adaptor
GT-83084-0806-0.8-USB-W2A, ICT/ITE Power Supply, Efficiency Level: USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782, Case Color/Style: GlobTek Black, Wall Plug-in, AC/DC Switching Adapter with USB Power Supply AC Adaptor, Input Rating: 100-240V ̴ , 50/60Hz, Australian Fixed , Output Rating: 7.8W, 5.2V@1.5A, Output Configuration: N/A mm, N/A/4 Cond, N/A, Type "A" USB “JACK”, integral to power supply enclosure, Ferrite: None, N/A, GT Cord # C0132, Pin Out: Pin 1:(+), Pin 2 (D-): Connected to Pin 3 (D+), Pin 3 (D+): Connected to Pin 2 (D-), Pin 4:(-); P2 (D-) and P3 (D+) are shorted together inside power supply., Blades/Input Cord: Fixed Blades Australian 2 Conductor, Approvals: EAC; CB 60950; LPS 62368; Double Insulation; Level VI; RoHS; SIQ; Ukraine; WEEE; CB 62368; to , GT Cable #: / Conductors, mm OD, , Deg.C, V, , Approvals: , mm,
| WR97A1500U53-F(R6B) | |
|---|---|
| DK Part Number | 1939-WR97A1500U53-F(R6B)-ND |
| Family | Power Supplies |
| Volts Out | 5.2 |
| Current Out mA | 1.5 |
| Watts | 7.8 |
| Model Datasheet | https://www.globtek.com/ds/DuSaXdhSuZV/igc8yPAxm6i.html#datasheet |
| Spec PDF | https://spec.globtek.info/spec/pdf/WR97A1500U53-F(R6B) |
