TR9KE9200LCP-IM(R6B)

Desktop/External Regulated Switchmode AC-DC Power Supply AC Adaptor

GTM961200P11012-T2, ICT / ITE / Medical Power Supply, Efficiency Level: USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782, Case Color/Style: GlobTek Black, Desktop/External, Regulated Switchmode AC-DC Power Supply AC Adaptor, Input Rating: 100-240V~, 50-60 Hz, IEC 60320/C8 , Output Rating: 110W, 12.0V@9.2A, Output Configuration: 1200 mm, 14/1C + Shield Cond, UL 1185, Female Barrel 5.5 * 2.5 * 11 mm with internal Spring Clip and Locking Notch or Equal; Barrel rated for 10A, Ferrite: Core size: 17.5*28.5*12.5, GlobTek Black, GT Cord # C10657, Pin Out: Center Positive (+V), symbol compliant with IEC 60417 symbol no. 5926, Blades/Input Cord: Not Applicable, Approvals: CB 61347; RCM; CCC; EAC; S-Mark 62368; IRAM; Malaysia; UKCA; Conforms to 62368-1; ETL 62368; Morocco; NrCAN (12V only); ETL (Brazil); South Africa (pending); ETL; S-Mark 60950; CB 60950; CB 60335; CB 62368; ETL; CB 60335; CB 60601-1; S-Mark; CE; China RoHS; Level VI; PSE; Ukraine; RoHS; WEEE; VCCI; Double Insulation; PSE; PSE; PSE; to , GT Cable #: / Conductors, mm OD, , Deg.C, V, , Approvals: , mm,

TR9KE9200LCP-IM(R6B)
DK Part Number 1939-TR9KE9200LCP-IM(R6B)-ND
FamilyPower Supplies
Volts Out 12.0
Current Out mA 9.2
Watts 110
Model Datasheethttps://www.globtek.com/ds/Ftcjj8gkMK5/muoCp5izgph.html#datasheet
Spec PDFhttps://spec.globtek.info/spec/pdf/TR9KE9200LCP-IM(R6B)

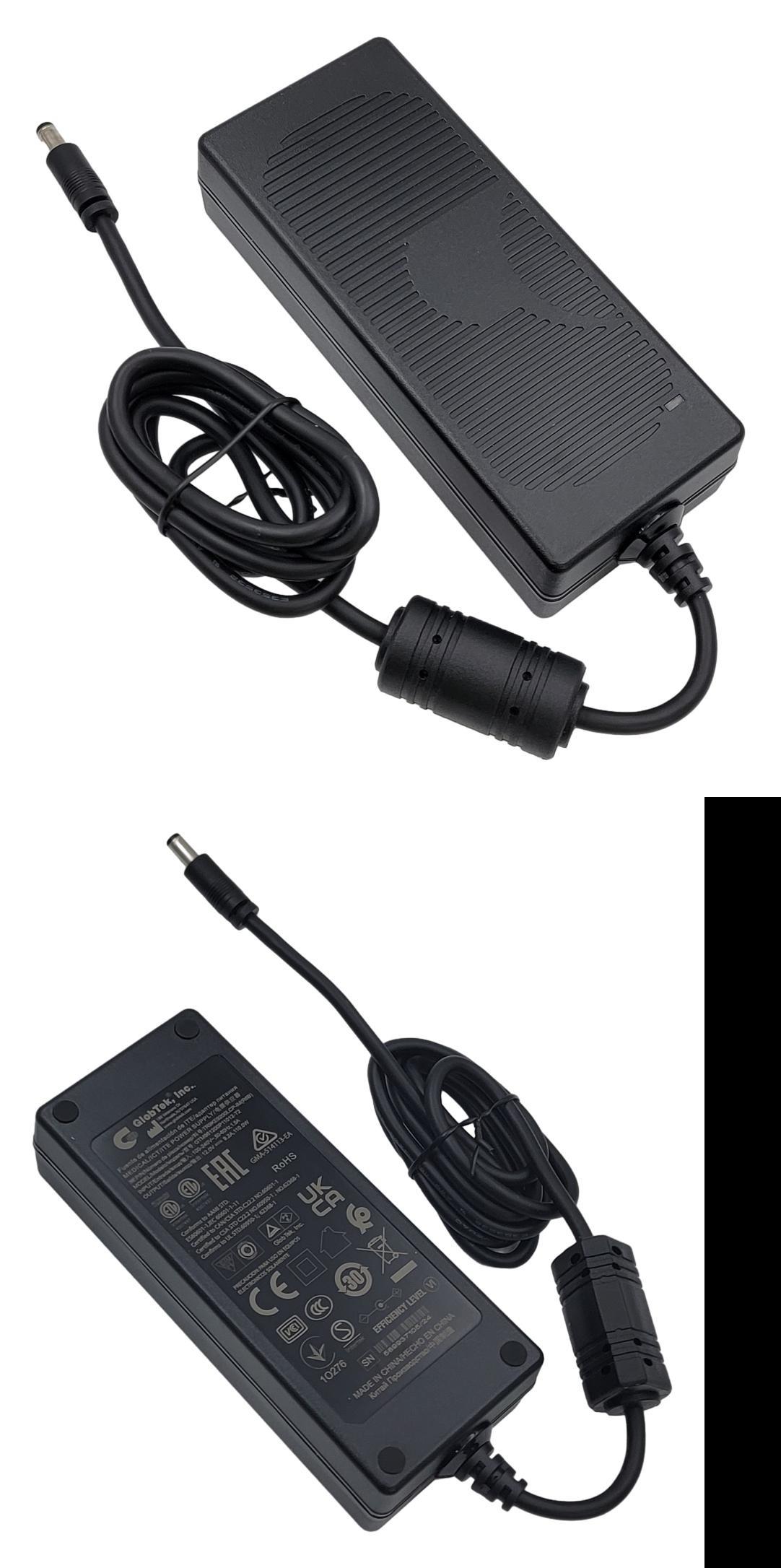

TR9KE9200LCP-IM(R6B) Image

GTM961200P11012-T2,110W,12V@9.2A DESK/EXT REG SWIT
# GTM961200P11012-T2, ITE / Medical Power Supply, Efficiency Level: VI, Case Color/Style: GlobTek Black, Output Rating: 110W, 12V@9.2A
