GTM43007-B4512-FW(R)

Open Frame/Internal Regulated Switchmode AC-DC Power Supply AC Adaptor

GTM43007-B4512-FW, ICT / ITE / Medical Power Supply, Efficiency Level: N/A, Case Color/Style: PCB, Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, Input Rating: 100-240V~, 50-60Hz, Molex Header (or equal) , Output Rating: 45W, 12.0V@3.75A, Output Configuration: N/A mm, N/A/4 Cond, , Molex 2.54mm Pitch 4-Pin Header PN: 22-11-2042 MATES W/ PN: 22-01-2047 or Equivalent, Ferrite: None, N/A, GT Cord # C0127, Pin Out: Pins 1 and 2: +V, Pins 3 and 4: -V, Blades/Input Cord: Not Applicable, Approvals: CB 62368; ETL 62368; EAC; UKCA; Conforms to 62368-1; CCC; Book 60601; CB 60601-1 2MOPP (6W max); CE; China RoHS; Double Insulation; RoHS; Ukraine; WEEE; CE; FCC; LPS 60950; Level V; Fuse 60335; CB 60950; CB EN/IEC 60335-1; cETLus ES60601; cETLus; cETLus 60601-1 3rd; Fuse 60335; WDaE; to , GT Cable #: / Conductors, mm OD, , Deg.C, V, , Approvals: , mm,

GTM43007-B4512-FW(R)
DK Part Number 1939-GTM43007-B4512-FW(R)-ND
FamilyPower Supplies
Volts Out 12.0
Current Out mA 3.75
Watts 45
Model Datasheethttps://www.globtek.com/ds/RArGeLmjMWr/zd4LG6Qeahk.html#datasheet
Spec PDFhttps://spec.globtek.info/spec/pdf/GTM43007-B4512-FW(R)

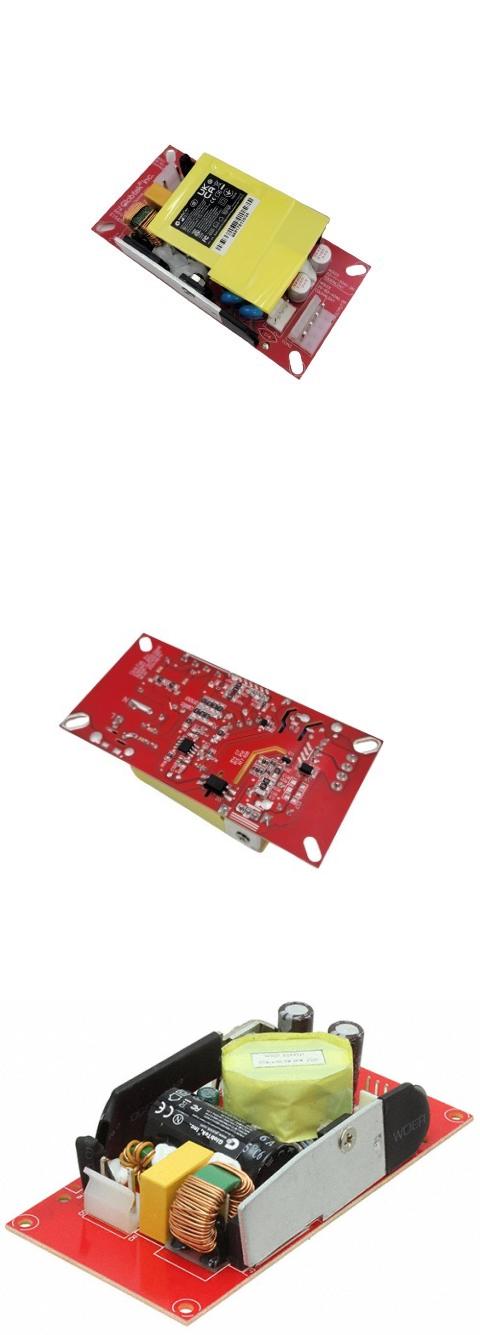

GTM43007-B4512-FW(R) Image

GTM43007-B4512-FW,45W,12V@3.75OPENFRAME/INTERNAL,R
# GTM43007-B4512-FW, ITE / Medical Power Supply, Efficiency Level: V, Output Rating: 45W, 12V@3.75A
